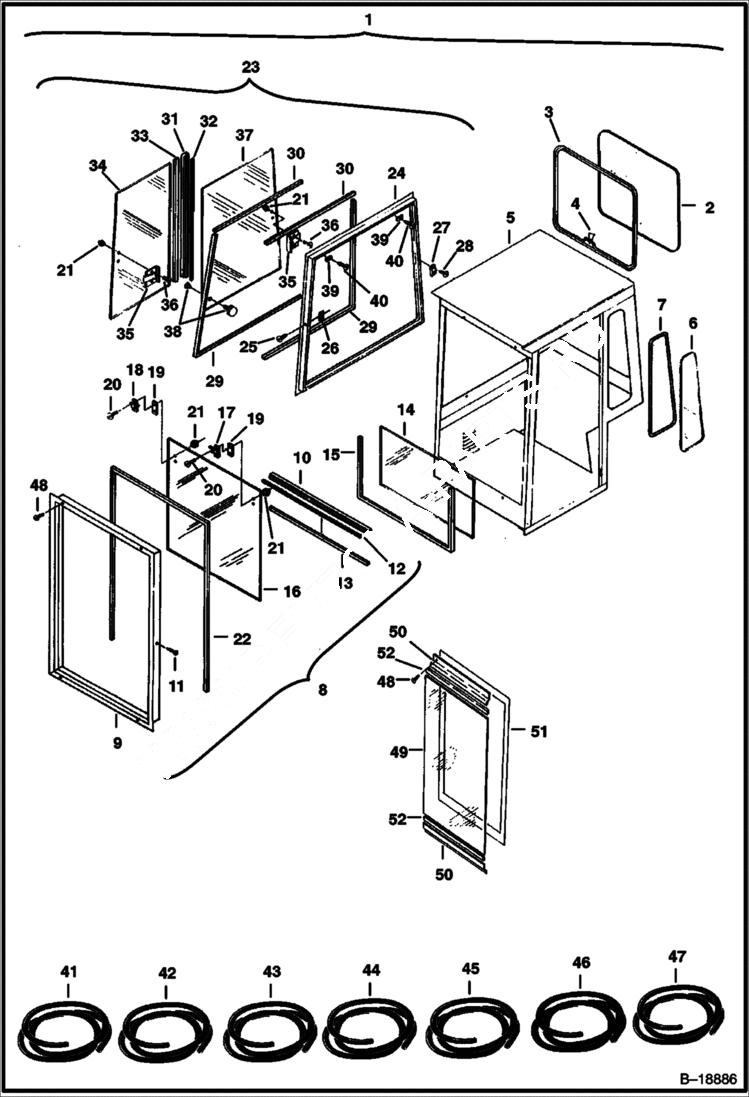

Запчасти Bobcat 231 OPERATOR CAB MAIN FRAME

1

6586895

CAB Assy. W/heater, heater hoses, floormat and mounting bolts - Ref. 2-10 - Also includes all items on Ill. E2172, B18885, B18887, B18888

2

6654175

GLASS rear window

3

MOULDING NLA - rear window - 120'' (3048 mm) long - Order 6654165

3

6654165

MOULDING bulk - sold per foot

4

6731478

EXIT TAG Emergency exit - Was 6559515 - A

5

6658284

CAB Was 6654780 - A

6

GLASS NLA - Left side - Was 6654176 - A

7

6648405

SEAL window

8

6654182

WINDOW ASSY. front - Ref. 9-22

9

FRAME NLA - Was 6658677 - A

10

CENTER POST NLA - Was 6655333 - A

11

SCREW NLA - Was 6655332 - A

12

SEAL NLA - 31'' (787mm) - Order Ref. 41

13

CHANNEL NLA - 31'' (787mm) - Order Ref. 42

14

6655329

GLASS lower front

15

CHANNEL NLA - 75'' (1905mm) - Order Ref. 43

16

6655327

GLASS top front

17

6655326

LOCK R.H.

18

6655325

LOCK L.H.

19

6655324

PLATE

20

SCREW NLA - Was 6655323 - A

21

6655322

WELL NUT

22

CHANNEL NLA - 130'' (3302 mm) - Order Ref. 44

23

WINDOW ASSY. NLA - R.H. - Ref. 24-40 - Was 6654183 - A

24

FRAME NLA - Was 6658678 - A

25

SCREW NLA - Was 6655347 - A

26

RETAINER NLA - Was 6655346 - A

27

RETAINER NLA - Was 6655345 - A

28

SCREW NLA - Was 6655344 - A

29

CHANNEL NLA - 77'' (1956 mm) - Order Ref. 45

30

CHANNEL NLA - 34'' (864 mm) - Order Ref. 46

31

CENTER POST NLA - Was 6655341 - A

32

SEAL NLA - 33'' (839 mm) - Order Ref. 41

33

CHANNEL NLA - 33'' (839 mm) - Order Ref. 47

34

6655339

GLASS

35

6655338

CATCH

36

6655337

SCREW

37

6662978

GLASS Was 6655348 - A

38

KNOB NLA - Was 6655336 - A

39

STOP NLA - Was 6655335 - A

40

SCREW NLA - Was 6655334 - A

41

SEAL NLA - bulk - Sold Per Foot - Was 6655331 - A

42

CHANNEL NLA - bulk - Sold Per Foot - Was 6655330 - A

43

CHANNEL NLA - bulk - Sold Per Foot - Was 6655328 - A

44

CHANNEL NLA - bulk - Sold in 8 Foot Length - Was 6655321 - A

45

CHANNEL NLA - bulk - Sold Per Foot - Was 6655343 - A

46

CHANNEL NLA - bulk - Sold Per Foot - Was 6655342 - A

47

CHANNEL NLA - bulk - Sold Per Foot - Was 6655340 - A

48

6654152

BOLT window mounting

49

WINDOW NLA - front - Use W/ Scandinavian option only - Was 6660969 - A

50

6660981

PLATE retainer -Use W/ Scandinavian option only

51

6660983

TAPE window - 30 ft. roll -Use W/ Scandinavian option only

52

6661754

TRIM window - bulk order per foot -Use W/ Scandinavian option only
