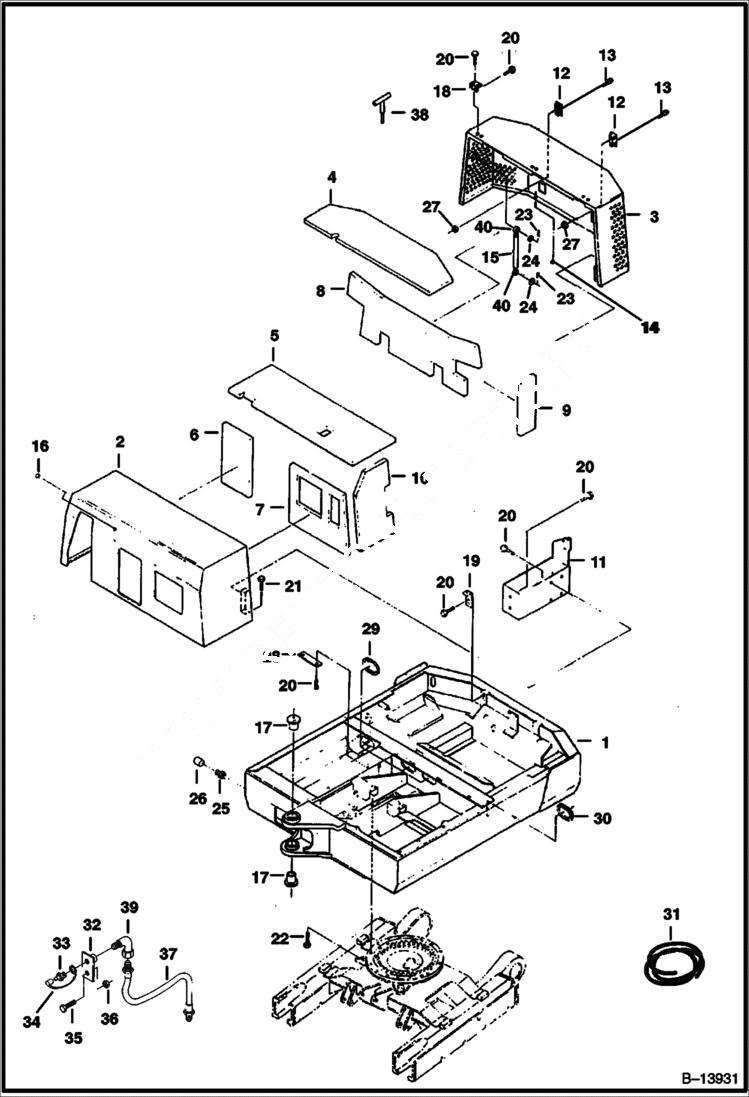

Запчасти Bobcat 231 REVOLVING FRAME & ENGINE COVERS MAIN FRAME

1

6538845

FRAME

2

6539064

COVER engine

3

6539066

COVER engine

4

6588089

INSULATION engine cover -Was 6536188 - A

5

6587151

INSULATION engine cover -Was 6536192 - A

6

6587153

INSULATION engine cover -Was 6536195 - A

7

6587154

INSULATION engine cover -Was 6536196 - A

8

6588086

INSULATION engine cover -Was 6539031 - A

9

6588087

INSULATION engine cover -Was 6539032 - A

10

6588088

INSULATION engine cover -Was 6539062 - A

11

6537600

TOOL BOX

12

6660132

LATCH W/Ref. 13 - uses key cut code LL-24

12

6661629

LATCH W/Ref. 13 - uses key cut code PK510

13

6650683

KEY Key cut code LL-24

13

6587458

KEY Key cut code PK510

14

6653459

STOP rubber

15

6654364

CYLINDER gas spring - W/Ref. 40

16

6657719

PLUG 0.75'' dia hole

17

6539109

BUSHING

18

6533959

HINGE

19

6535606

BRACKET

20

29CM1020

BOLT

21

29CM1225

BOLT

22

7CM1260

BOLT

23

COTR.PIN NLA - Was 13JM16016 - A

25

12H15

FITTING, GREASE 5

26

6652943

COVER grease fitting

27

61D4

NUT 5

28

6539292

COVER

29

MOULDING NLA - 12'' (305 mm) long - Order Ref. 31

30

MOULDING NLA - 18'' (457mm) long - Order Ref. 31

31

6659603

MOLDING bulk - Sold Per Foot

32

6586104

PLATE

33

10H25

FITTING, GREASE 5

34

6652943

COVER grease fitting

35

1CM1020

BOLT

36

1DM10

NUT

37

6531180

HOSE swing bearing grease

38

6586495

PIN alignment -service tool for aligning swing bearing when upperstructure has been removed from undercarriage

39

26F1

PIPE FITG

40

6664042

CLEVIS
