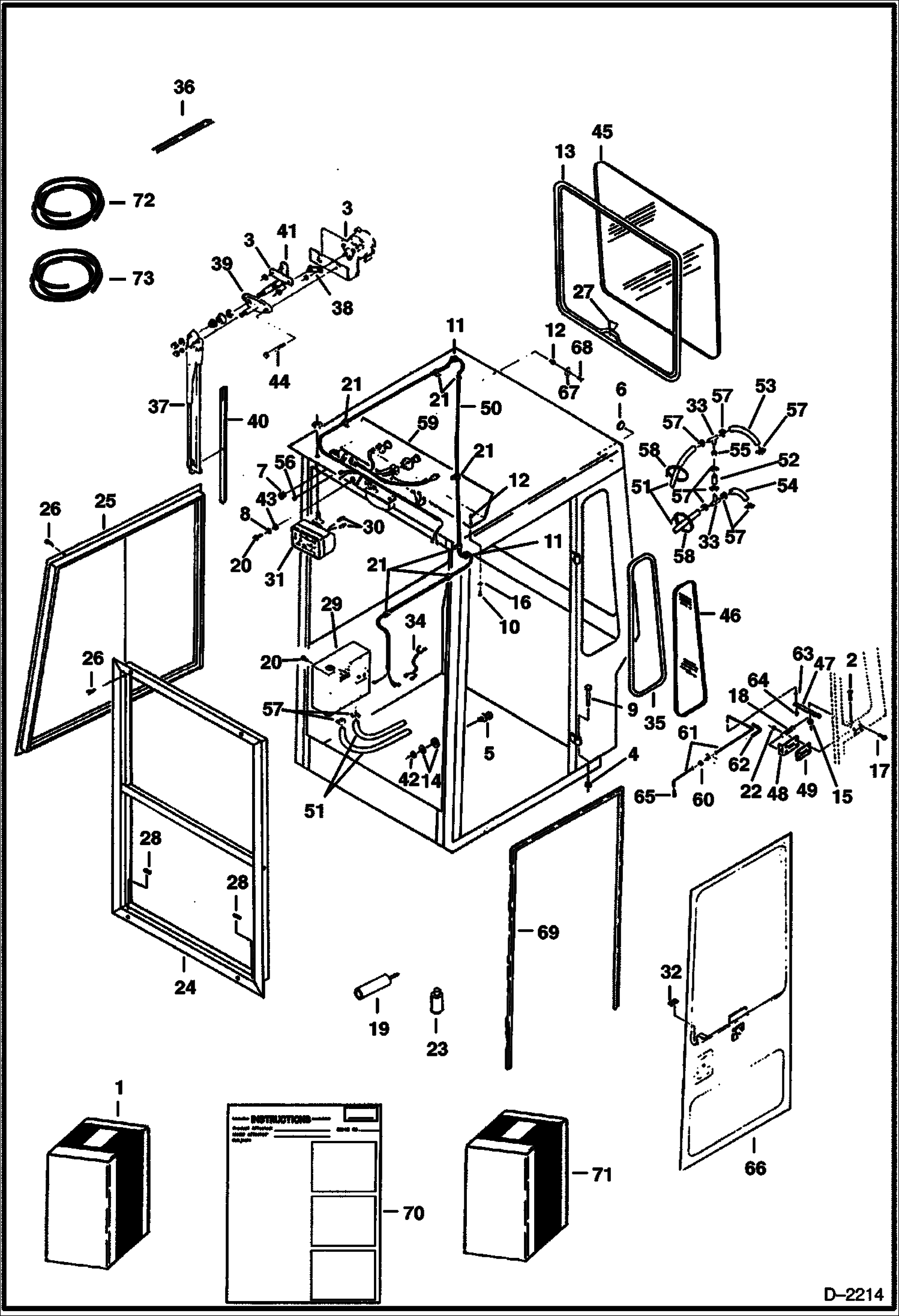

Запчасти Bobcat 231 CAB ENCLOSURE KIT ACCESSORIES & OPTIONS

1

ENCLOSURE KIT NLA - cab - W/Refs. 2-70 - Order components - Was 6657706 - A

2

6648408

BOLT

3

6654163

WIPER MOTOR

4

85D6

NUT, 5

5

6649483

STRIKER BOLT Was 6654170 - A

6

6654779

PLUG

7

515069

GROMMET

8

6654144

WASHER

9

17C672

BOLT

10

6648410

BOLT

11

6654164

GROMMET

12

6648363

NUT

13

MOULDING NLA - 120'' (3048 mm) long - Order 6654165

13

6654165

MOULDING bulk - sold per foot

14

28E8

WASHER

15

85D5

NUT 5

16

6658291

WASHER

17

6657095

BOLT

18

6654147

SPRING

19

6654148

SEALANT

20

6654149

BOLT

21

6654150

CLIP

22

6657089

NUT

23

CLEANER NSS

24

6654182

WINDOW ASSY.

25

WINDOW ASSY. NLA - Was 6654183 - A

26

6654152

BOLT

27

6731478

EXIT TAG Was 6559515 - A

28

SETTING BLOCK NSS

29

HEATER NLA - 3 speed - Was 6660520 - A

30

6646603

TERMINAL

31

6644980

LIGHT

32

6583848

DECAL

33

6648485

TEE Was 656469 - A

34

6537687

HARNESS

35

6648405

SEAL

36

6648404

TRIM

37

6658698

ARM

38

6654155

ARM

39

6654156

LINKAGE For .625 shaft

39

6669145

LINKAGE For .690 shaft

40

6654157

BLADE

41

PIVOT SHAFT NLA - .625 - Order Ref. 71

41

6669059

PIVOT SHAFT 0.69

42

61D7

NUT

43

61D4

NUT 5

44

2C408

SCREW

45

6654175

GLASS

46

GLASS NLA - Left side - Was 6654176 - A

47

6657094

LEVER

48

6657092

PLATE

49

6657088

SEAL

50

6657090

HARNESS

51

HOSE NLA - Order 65'' of Ref. 72 - Was 6536116 - A

52

HOSE NLA - Order 4'' of Ref. 72 - Was 6534777 - A

53

HOSE NLA - Order 14'' of Ref. 73 - Was 6536118 - A

54

HOSE NLA - Order 19'' of Ref. 73 - Was 6536117 - A

55

6585223

ORIFICE

56

6648347

PLUG

57

42H8

HOSE CLAMP 5

58

6610510

TIE

59

CONSOLE ASSY. NSS - overhead

60

6660975

GROMMET

61

6660976

ROD

62

6660977

SHIELD

63

6660980

RETAINER

64

6660979

NUT

65

6660978

CAP

66

6662022

DOOR

67

6658289

HOOK

68

6658290

SCREW

69

6648401

SEAL door

70

6720521

INSTRUCTIONS

71

KIT NLA - .690 shaft - Ref. 39 & 40 - Was 6669058 - A

72

889269

HOSE BULK/FT bulk - sold per foot

73

6565977

HOSE bulk - sold per foot
