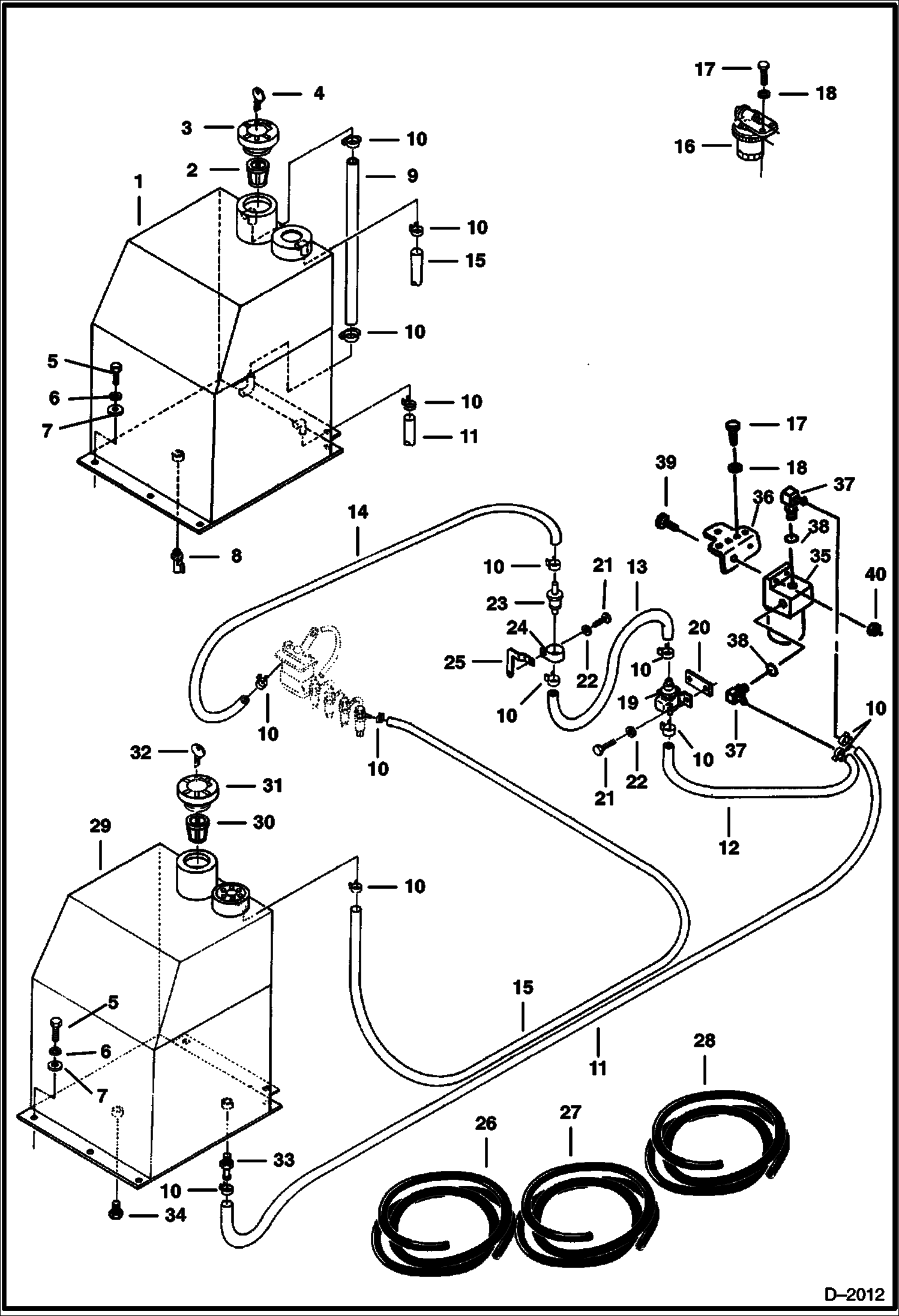

Запчасти Bobcat 231 FUEL SYSTEM POWER UNIT

1

TANK NLA - Fuel - Order Ref. 29-31 & 33 - Was 6536037 - A

2

6535215

STRAINER

3

6535212

CAP Locking - W/Ref. 4

4

KEY NLA - Was 6535217 - A

5

1CM1020

BOLT

6

6EM100

WASHER

7

15EM100

WASHER

8

6534704

DRAIN VALVE

9

HOSE NLA - (350 mm) - Order Ref. 26

10

42HS04

CLAMP, HOSE Was 6515575 - A

11

HOSE NLA - (2300 mm) - Order Ref. 27

12

HOSE NLA - (815 mm) - Order Ref. 27

13

HOSE NLA - (740 mm) - Order Ref. 27

14

HOSE NLA - (510 mm) - Order Ref. 27

15

HOSE NLA - (3000 mm) - Order Ref. 28

16

FILTER See Illustration FUEL FILTER/ B13018 See BTIE-024 NLA - fuel - Order Refs. 35-40 - Was 6653959 - A

17

1CM820

BOLT

18

6EM80

WASHER, SPRING

19

3975370

PUMP FUEL

20

6652023

CUSHION

21

1CM616

SCREW Was 1CM00615B - A

22

6EM60

WASHER, SPRING

23

6633977

FILTER Fuel -Was 6611393 - B

24

3918244

BAND

25

6535664

BRACKET Fastens to Radiator

26

6653483

HOSE Bulk - Sold Per Foot

27

6577822

HOSE bulk - sold per foot

28

6578169

HOSE bulk - sold per foot - 0.19'' ID - Was 6534703 - A

29

6536182

TANK W/Ref. 34

30

7120881

SCREEN, FILLER Was 6569219 - A

31

6661696

CAP, FUEL LOCKING W/Ref. 32 - Was 6654373 - A

32

6654374

KEY

33

1317483

NIPPLE

34

40K12

PLUG

35

6657020

FILTER ASSY. See BTIE-024 Fuel

35

6667352

FILTER, FUEL W/SEPARATOR 12 Was 6647773 - A

36

6587372

PLATE

37

6657083

ELBOW W/Ref. 38

38

79K8

O RING 10

39

1CM820

BOLT

40

49DM8

NUT
