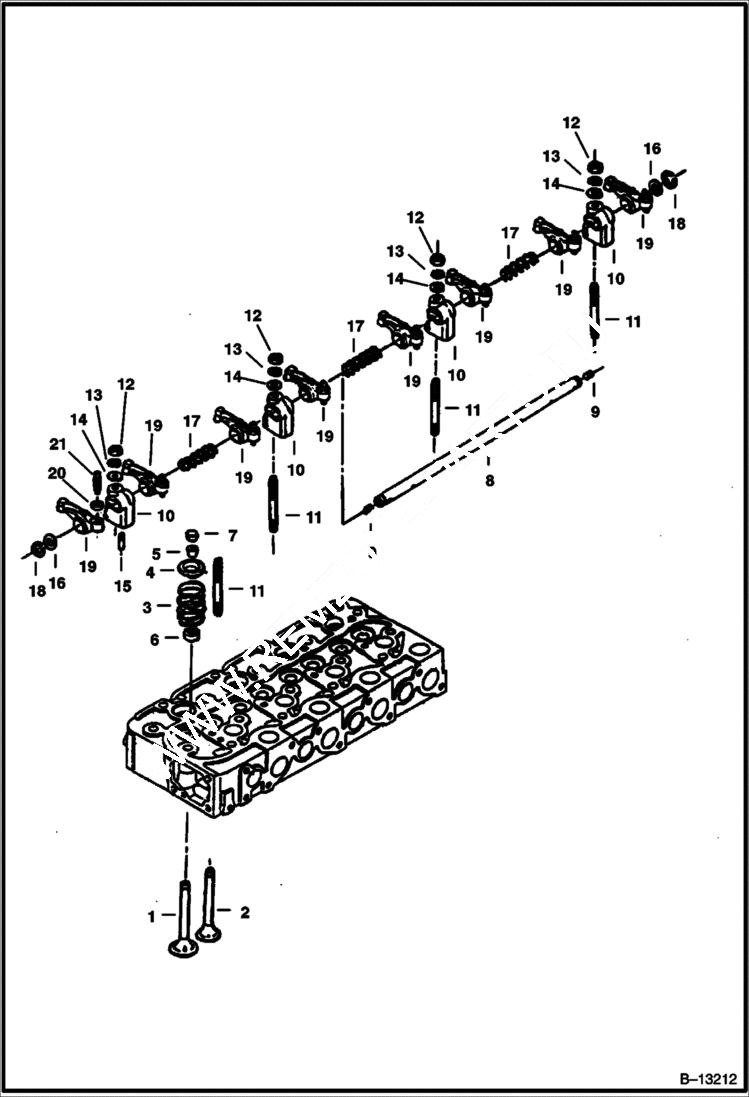

Запчасти Bobcat 231 ROCKER ARM & VALVES POWER UNIT

1

6653828

VALVE inlet - Was 3974512B - A

2

6653829

VALVE exhaust - Was 3974513B - A

3

3974514

SPRING 5

4

3974515

RETAINER

5

6684874

COLLAR valve spring - set of 2 - Was 3974516B - A

6

6653830

SEAL, STEM VALVE See Illustration UPPER GASKET KIT/ C3255 - Included W/upper gasket kit - Was 3974517 - A

7

CAP

8

3974519

SHAFT W/Ref. 9

9

25GM8010

SCREW Was 6655894 - A

10

3974521

MOUNT

11

6653832

STUD Was 3974918 - A

12

6652792

NUT

13

6EM80

WASHER, SPRING

14

1EM80

WASHER

15

3974523

SCREW

16

3974524

WASHER

17

3974525

SPRING, ROCKER ARM

18

5JM14

SNAP RING

19

6655870

ROCKER ARM W/Ref. 20-21 - Was 6655490 - A

20

2DM8

NUT

21

3974920

SCREW
