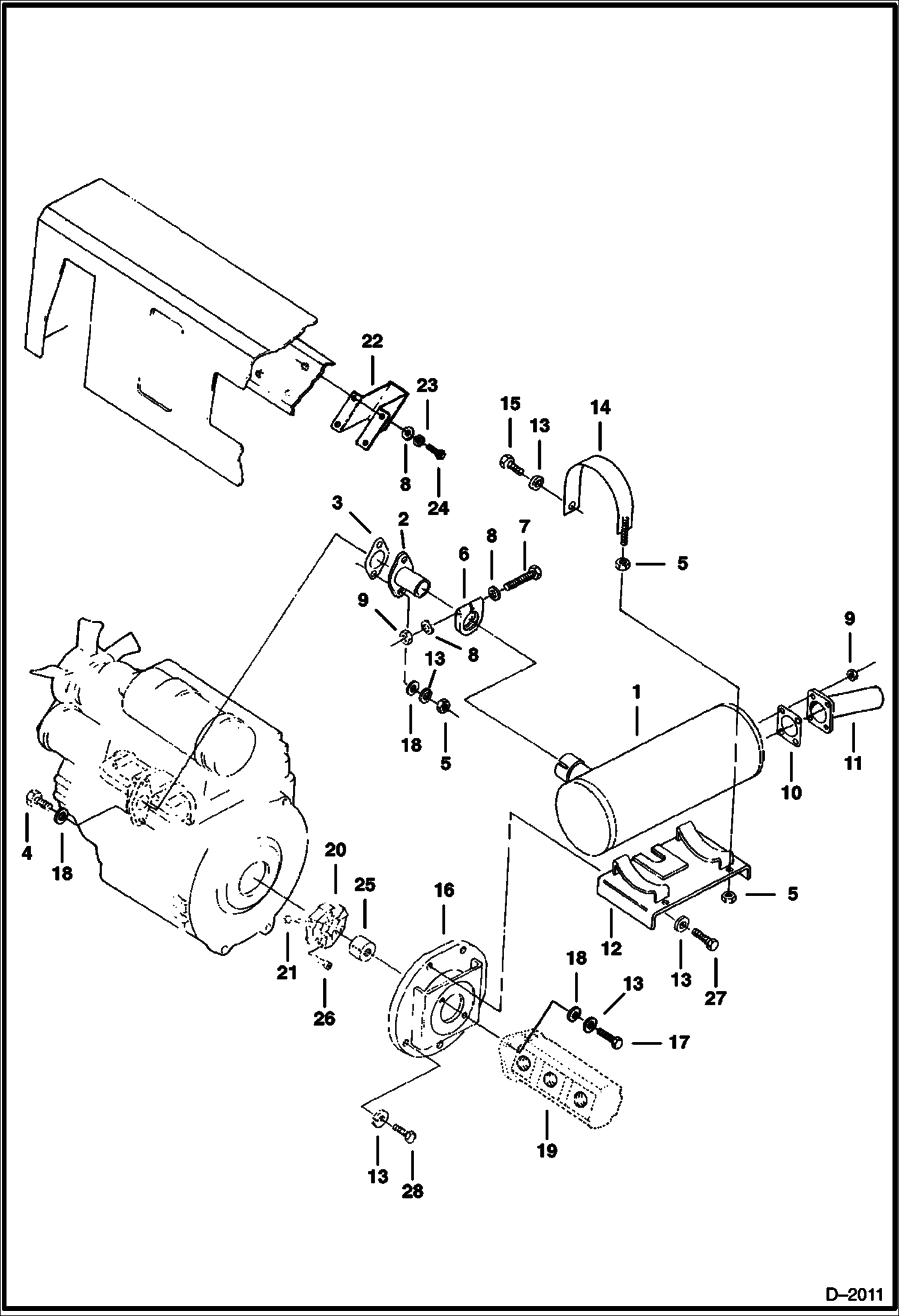

Запчасти Bobcat 231 MUFFLER & POWER TAKE OFF POWER UNIT

1

6653955

MUFFLER

1

6664005

PURIFIER Exhaust

2

6655405

PIPE Flange - Was 665512 - A

3

3974507

GASKET See Illustration UPPER GASKET KIT/ C3255 INCLUDE W/UPPER GASKET KIT

4

1CM1030

BOLT

5

1DM10

NUT

6

6651933

CLAMP

7

6651934

BOLT

8

15EM80

WASHER

9

1DM8

NUT

10

6727753

GASKET See Illustration LOWER GASKET KIT/ C3254 INCLUDE W/LOWER GASKET KIT - Was 6653956 - A

11

6536088

PIPE Exhaust

12

6535658

BRACKET Muffler

13

6EM100

WASHER

14

6537535

CLAMP Was 6535659 - D

15

1CM1020

BOLT

16

6535661

MOUNT Pump

17

1CM1025

BOLT

18

15EM100

WASHER

19

6652840

PUMP See Illustration GEAR PUMP/ B13031 See BTIE-021 KAYABA

19

6661109

PUMP See Illustration TRIPLE GEAR PUMP/ B18651 See BTIE-021 EATON

20

6660771

COUPLING Pump - W/Ref. 21 & 26 - Was 6534255 - A

21

6537441

BOLT Was 7GM01240B - A

22

6536178

BRACKET Air cleaner - Was 6536108 - A

23

6EM80

WASHER, SPRING

24

1CM825

BOLT

25

6535625

COUPLING Use W/Kayaba pump

25

6537440

COUPLING Use W/Eaton pump

26

6537500

BOLT Was 7GM01235B - A

27

5CM1030

BOLT

28

5CM1025

BOLT
