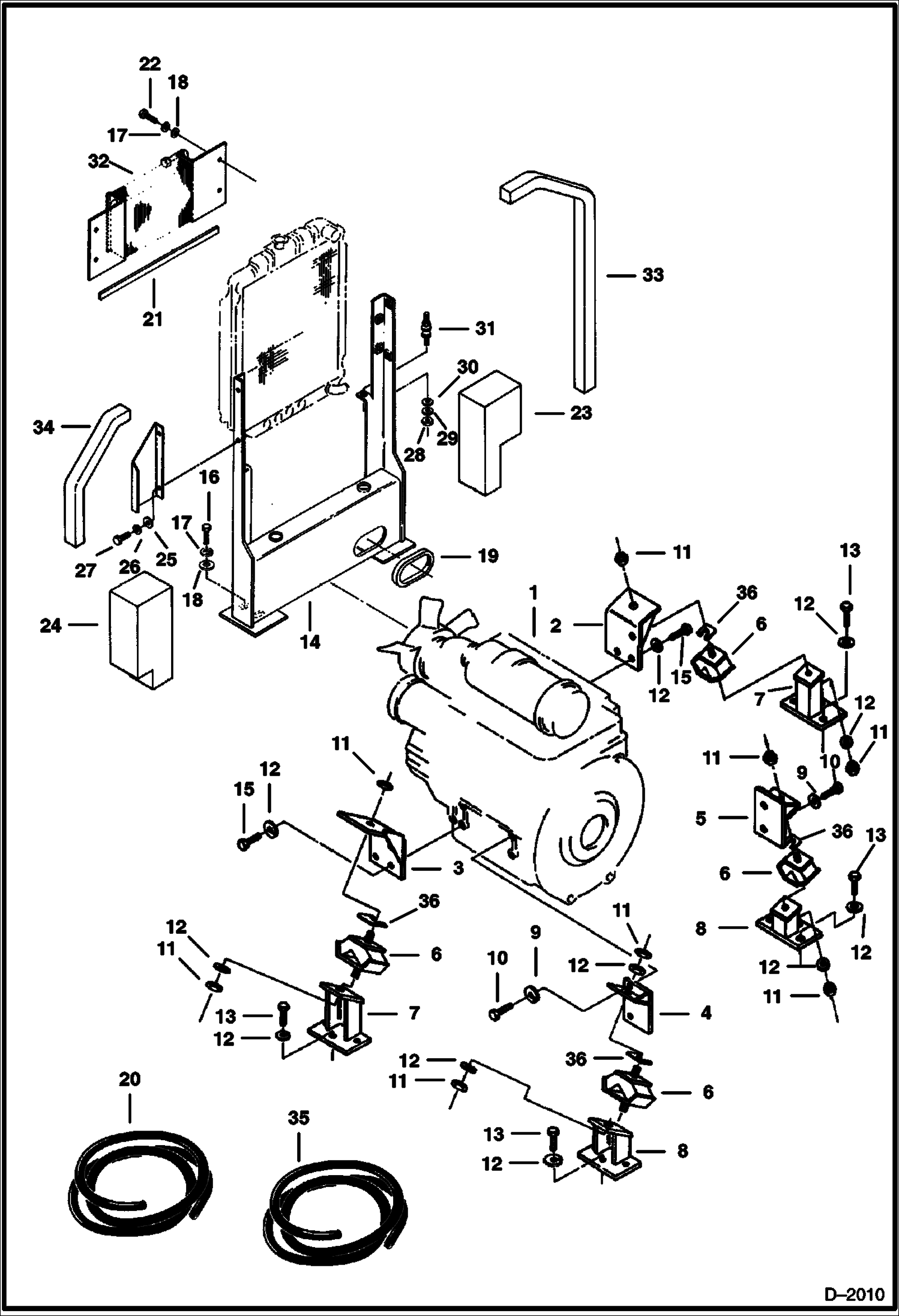

Запчасти Bobcat 231 ENGINE MOUNTING POWER UNIT

1

ENGINE ASSY. See BTIE-016 NLA - Was 6655099 - A

1

SHORT BLOCK NLA

1

6657399

GASKET KIT See Illustration UPPER GASKET KIT/ C3255 Upper - Head Gasket

1

6657400

GASKET KIT See Illustration LOWER GASKET KIT/ C3254 Lower

2

6535654

MOUNT

3

6535655

MOUNT

4

6535653

MOUNT

5

6535652

MOUNT

6

6534256

MOUNT

7

6535657

MOUNT

8

6535656

MOUNT

9

6EM140

WASHER

10

5CM1435

BOLT Was 2CM01435B - D

11

39DM12

NUT Was 1DM00012B - D

12

6EM120

WASHER

13

1CM1225

BOLT

14

6536089

MOUNT

15

5CM1230

BOLT Was 6CM01230B - D

16

1CM1025

BOLT

17

6EM100

WASHER

18

15EM100

WASHER

19

MOULDING NSS - 210 mm - Order Ref. 20

20

6512686

MOULDING bulk - Sold Per Foot

21

INSULATION NLA - 15'' (381 mm) - Order Ref. 35

22

1CM1020

BOLT

23

6536199

INSULATION Was 6536139 - A

24

6536198

INSULATION Was 6536138 - A

25

15EM60

WASHER

26

6EM60

WASHER, SPRING

27

1CM610

BOLT

28

1DM8

NUT

29

6EM80

WASHER, SPRING

30

15EM80

WASHER

31

6651925

CUSHION See Illustration RADIATOR/ B13199

32

OIL COOLER NLA - Was 6536107 - A

33

INSULATION NLA - 580 mm - Order Ref. 35

34

INSULATION NLA - 200 mm - Order Ref. 35

35

6554274

INSULATION bulk - Sold Per Foot

36

6588967

SPACER See Service Letter Dated Sept. 1993
