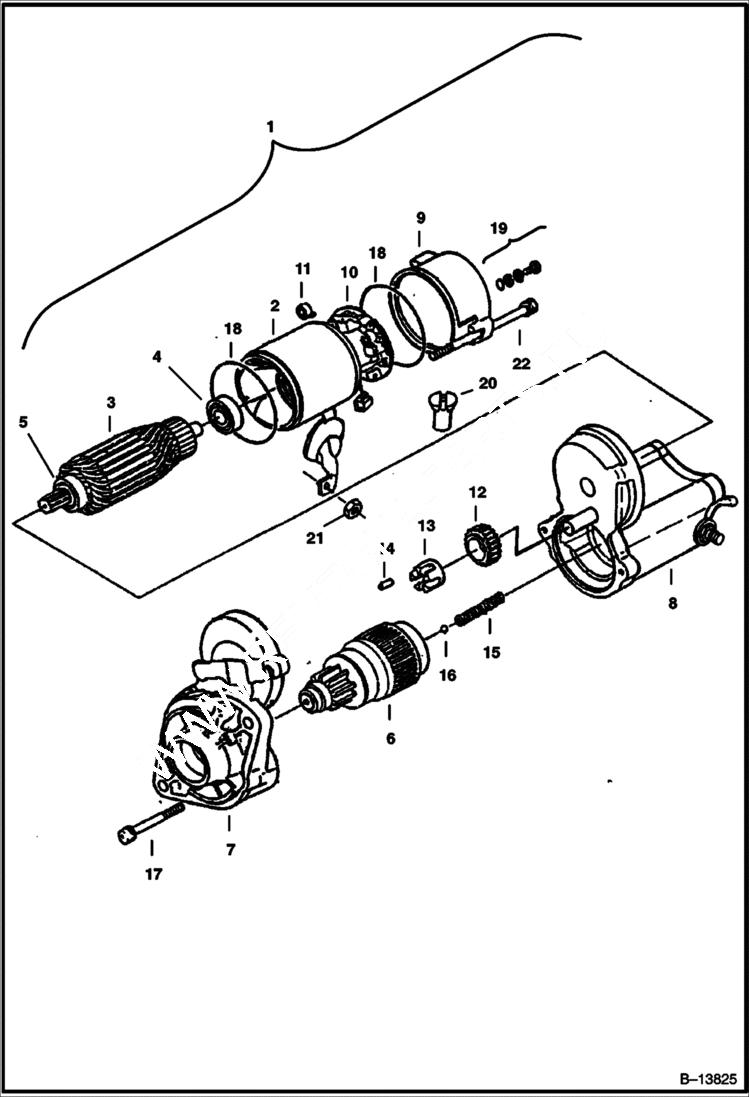

Запчасти Bobcat 231 STARTER (Kubota#15461 - 63012) ELECTRICAL SYSTEM

1

6988700

STARTER assy - W/Ref. 2-22 - Was 6662323 - A

2

6662324

YOKE

3

6662325

ARMATURE W/Refs. 4 & 5

4

6662326

BEARING

5

6662327

BEARING

6

6662328

CLUTCH

7

6662329

FRAME

8

6662330

SWITCH

9

6662331

END

10

6662332

HOLDER Brush - W/Ref. 11

11

3974738

SPRING Brush

12

6662333

GEAR

13

6662334

RETAINER

14

3390091

ROLLER

15

6662335

SPRING

16

3390093

BALL

17

6662336

BOLT

18

3390007

O-RING

19

3390008

BOLT ASSY

20

6662337

DRAIN Drain

21

3390097

NUT

22

6662338

BOLT
