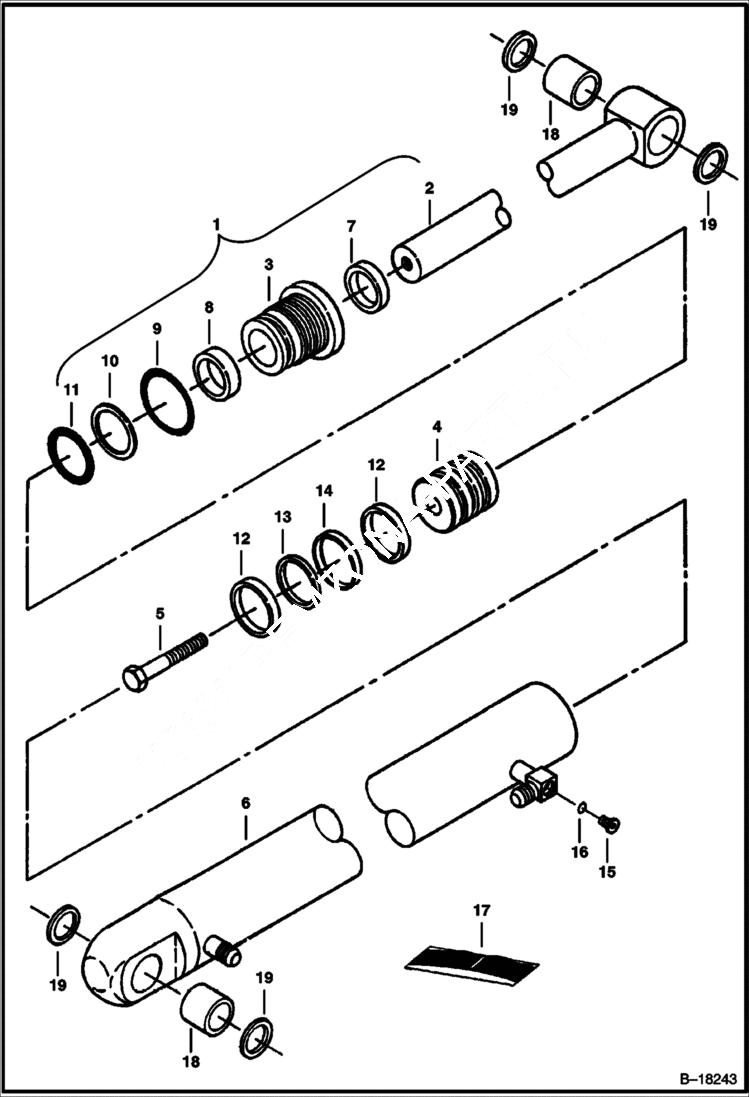

Запчасти Bobcat 225 SWING CYLINDER (Bobcat) HYDRAULIC SYSTEM

1

6536372

CYLINDER Ref. 2-16, 18 & 19

2

6537075

ROD W/Ref. 18 & 19

3

6586721

HEAD Was 6534429 - A

4

6537356

PISTON

5

6536345

BOLT

6

6537898

HOUSING W/Ref. 18 & 19

7

RING NSS - wiper

8

SEAL NSS

9

O-RING NSS

10

RING NSS - back-up

11

O-RING NSS

12

RING NSS

13

O-RING NSS

14

RING NSS

15

PLUG NLA - W/Ref. 16 - flat boss face - Was 47K000002B - A

15

90K3

PLUG W/Ref.16 -for tapered boss face - Was 90KV3 - D

16

79K3

O RING 10 for flat boss face - Was 91F000002B - A

16

95K3

O'RING for tapered boss face

17

6661047

SEAL KIT Ref. 7-14 - Was 6536671 - A

18

6537098

BUSHING Was 6534095

19

6652915

SEAL, OIL
