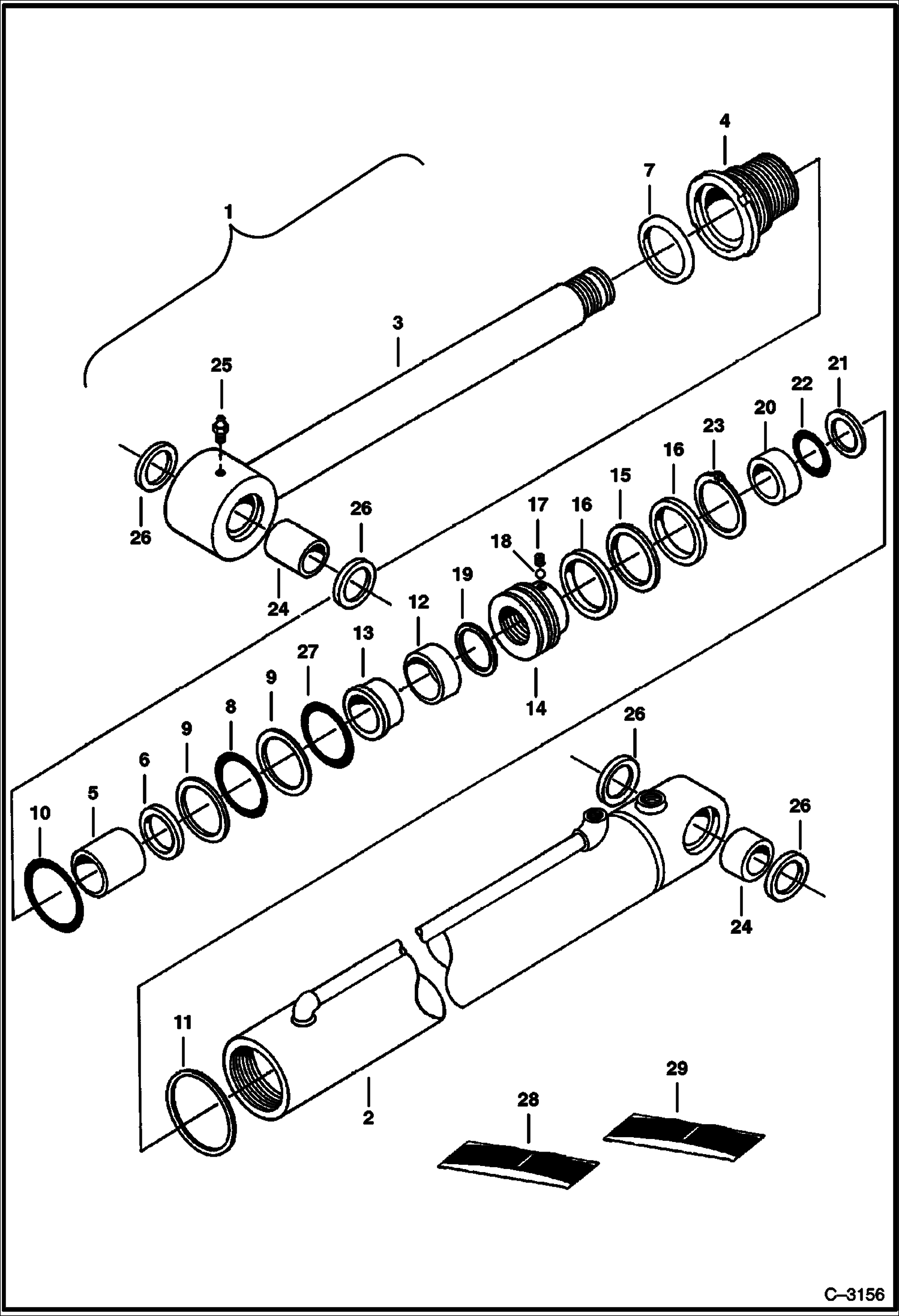

Запчасти Bobcat 225 SWING CYLINDER (Original Equipment) HYDRAULIC SYSTEM

1

CYLINDER See BTIE-009 NLA - Ref. 2-27 - Was 6652866 - A

2

HOUSING NLA - W/Ref. 24 - Was 6653636 - A

3

ROD NLA - W/Ref. 24 - Was 6653637 - A

4

HEAD NLA - Was 6653638 - A

5

6653639

BUSHING

6

6652975

U-RING

7

6652976

RING wiper

8

6652977

O-RING

9

6653640

BACK-UP RING

10

6653682

O-RING

11

WASHER NLA - Was 6652980 - A

12

6653641

BUSHING

13

6653642

SHIM

14

PISTON NLA - Was 6653643 - A

15

6652982

SEAL

16

6652988

RING slide

17

6653644

SET SCREW

18

BALL NLA - steel - Was 6653035 - A

19

6653645

SHIM

20

6653656

BUSHING

21

6653655

STOP

22

6653654

SEAL bushing

23

6653652

SNAP RING

24

BUSHING NLA - Was 6653673 - A

25

6653646

GREASE ZERK

26

SEAL NLA - Was 6653674 - A

27

6652989

O-RING

28

SEAL KIT NLA - Ref. 6-10 & 27 - Was 6653647 - A

29

SEAL KIT NLA - Ref.15 & 16 - Was 6653648 - A
