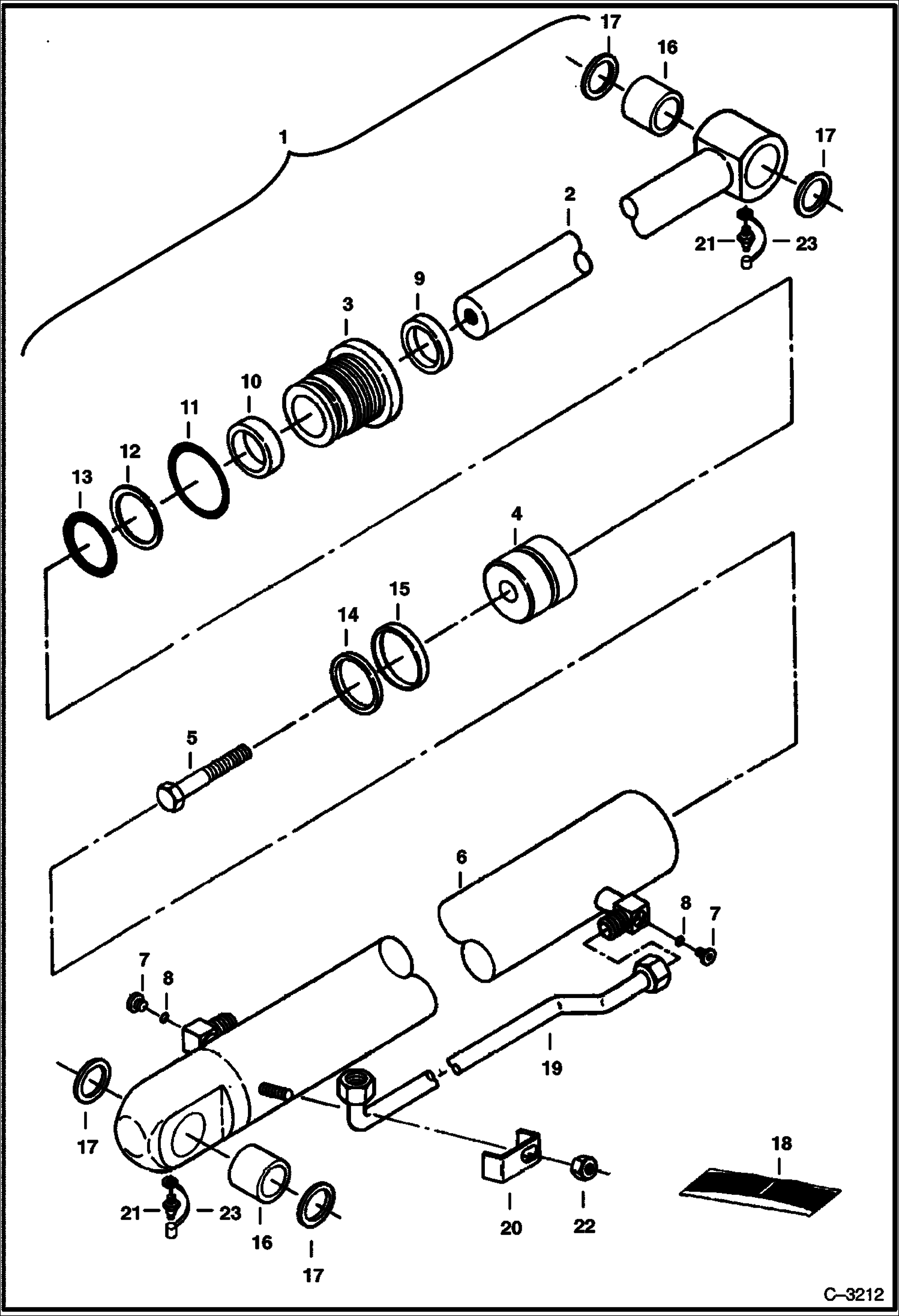

Запчасти Bobcat 225 BUCKET CYLINDER (Bobcat) HYDRAULIC SYSTEM

1

6538977

CYLINDER Ref. 2-17 - Was 6537230 - A

2

6537095

ROD W/Ref. 16 & 17 - Was 6537230 - A

3

6529986

HEAD

4

6536389

PISTON

5

6536349

BOLT 2.50'' long - check length before ordering

5

6539091

BOLT 2.75'' long - check length before ordering

6

6537891

HOUSING W/Ref. 16 & 17

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A

7

90KV5

PLUG tapered boss face

8

79K6

O RING 10 for flat boss face-Was 91F000005B - D

8

95K6

O'RING for tapered boss face

9

RING NSS - wiper

10

SEAL NSS

11

O-RING NSS

12

RING NSS - back-up

13

O-RING NSS

14

RING NSS

15

RING NSS

16

6537098

BUSHING

17

6652915

SEAL, OIL

18

6589796

SEAL KIT W/Ref. 9-15 - Was 6661291 - A

19

6537062

TUBE

20

6562266

CLAMP

21

10H25

FITTING, GREASE 5

22

1DM10

NUT

23

6652943

COVER grease fitting
