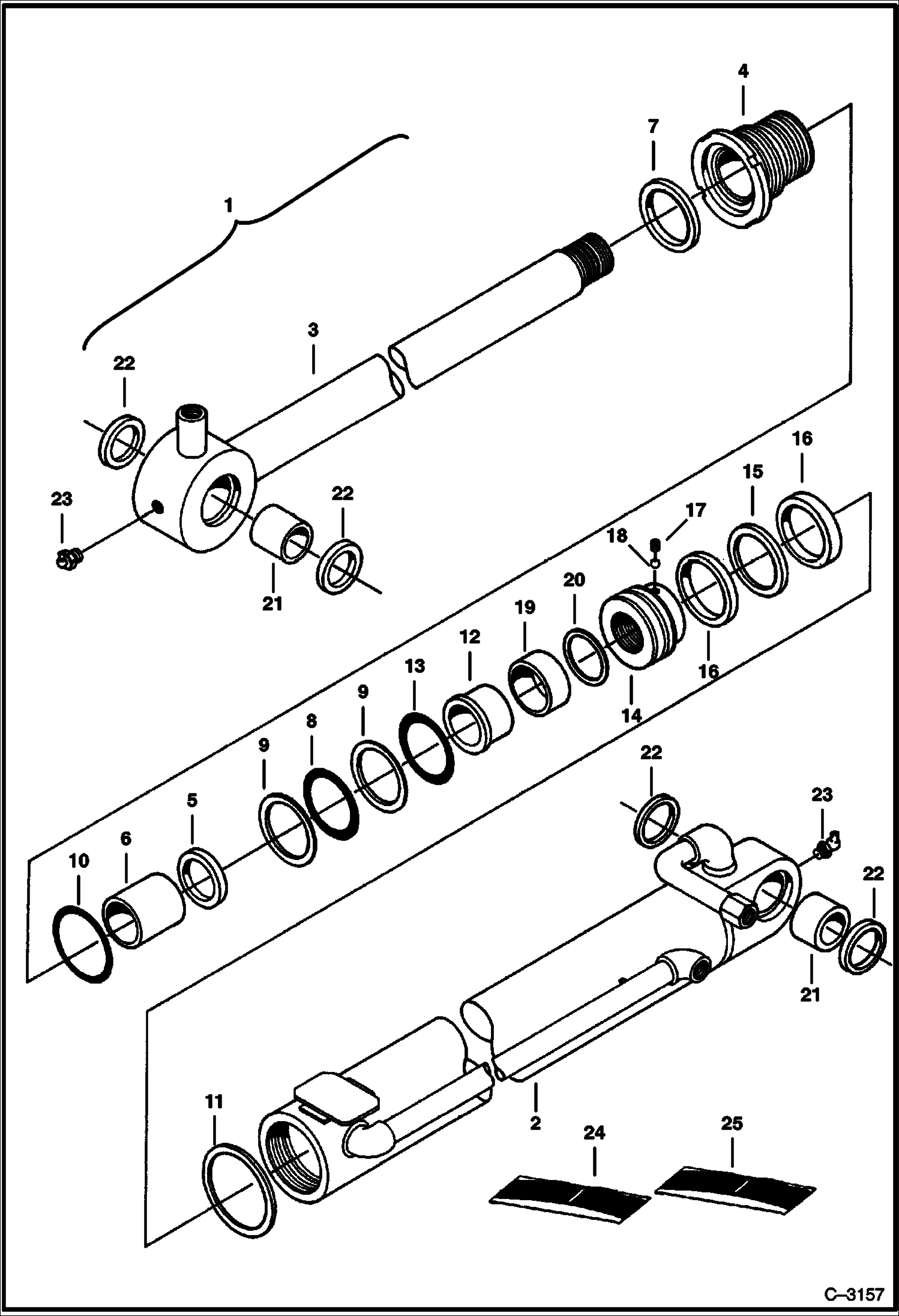

Запчасти Bobcat 225 BOOM CYLINDER (Original Equipment) HYDRAULIC SYSTEM

1

CYLINDER See BTIE-009 NLA - Ref. 2-23 - Was 6653680 - A

2

CASE NLA - W/Ref. 21 - Was 6653677 - A

3

ROD NLA - W/Ref. 21 - Was 6720288 - A

4

6653679

HEAD

5

6653661

U-RING

6

6653662

BUSHING

7

6653663

RING wiper

8

6653664

O-RING

9

6653665

BACK-UP RING

10

6653666

O-RING

11

6653667

WASHER

12

6653681

SHIM

13

6653682

O-RING

14

PISTON NLA - Was 6653668 - A

15

6653669

SEAL

16

6653670

RING slide

17

6653671

SET SCREW

18

BALL NLA - steel - Was 6653035 - A

19

6653683

BUSHING cushion

20

6653672

SHIM

21

BUSHING NLA - Was 6653673 - A

22

SEAL NLA - Was 6653674 - A

23

6653000

GREASE ZERK

24

6653684

SEAL KIT Ref. 5, 7-10 & 13

25

6653676

SEAL KIT Ref. 15, 16 & 20
