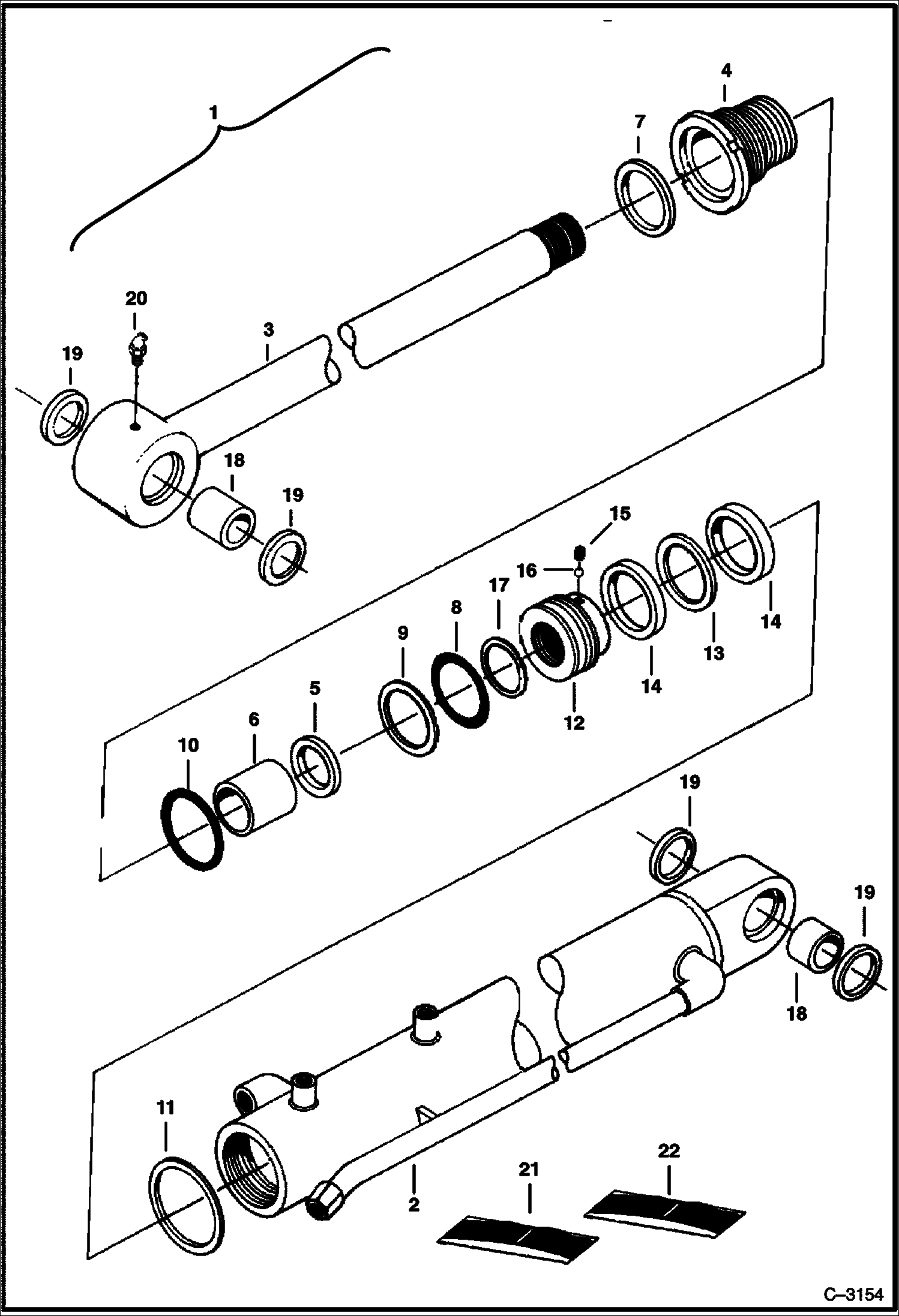

Запчасти Bobcat 225 BLADE CYLINDER (Original Equipment) HYDRAULIC SYSTEM

1

CYLINDER See BTIE-009 NLA - Ref. 2-20 - Was 6652864 - A

2

HOUSING NLA - W/Ref. 18 - Was 6653658 - A

3

ROD NLA - W/Ref. 18 - Was 6653659 - A

4

6653660

HEAD

5

6653661

U-RING

6

6653662

BUSHING

7

6653663

RING wiper

8

6653664

O-RING

9

6653665

BACK-UP RING

10

6653666

O-RING

11

6653667

WASHER

12

PISTON NLA - Was 6653668 - A

13

6653669

SEAL

14

6653670

RING slide

15

6653671

SET SCREW

16

BALL NLA - steel - Was 6653035 - A

17

6653672

SHIM

18

BUSHING NLA - Was 6653673 - A

19

SEAL NLA - Was 6653674 - A

20

6652991

GREASE ZERK

21

6653675

SEAL KIT Ref. 5 & 7-10

22

6653676

SEAL KIT Ref. 13, 14 & 17
