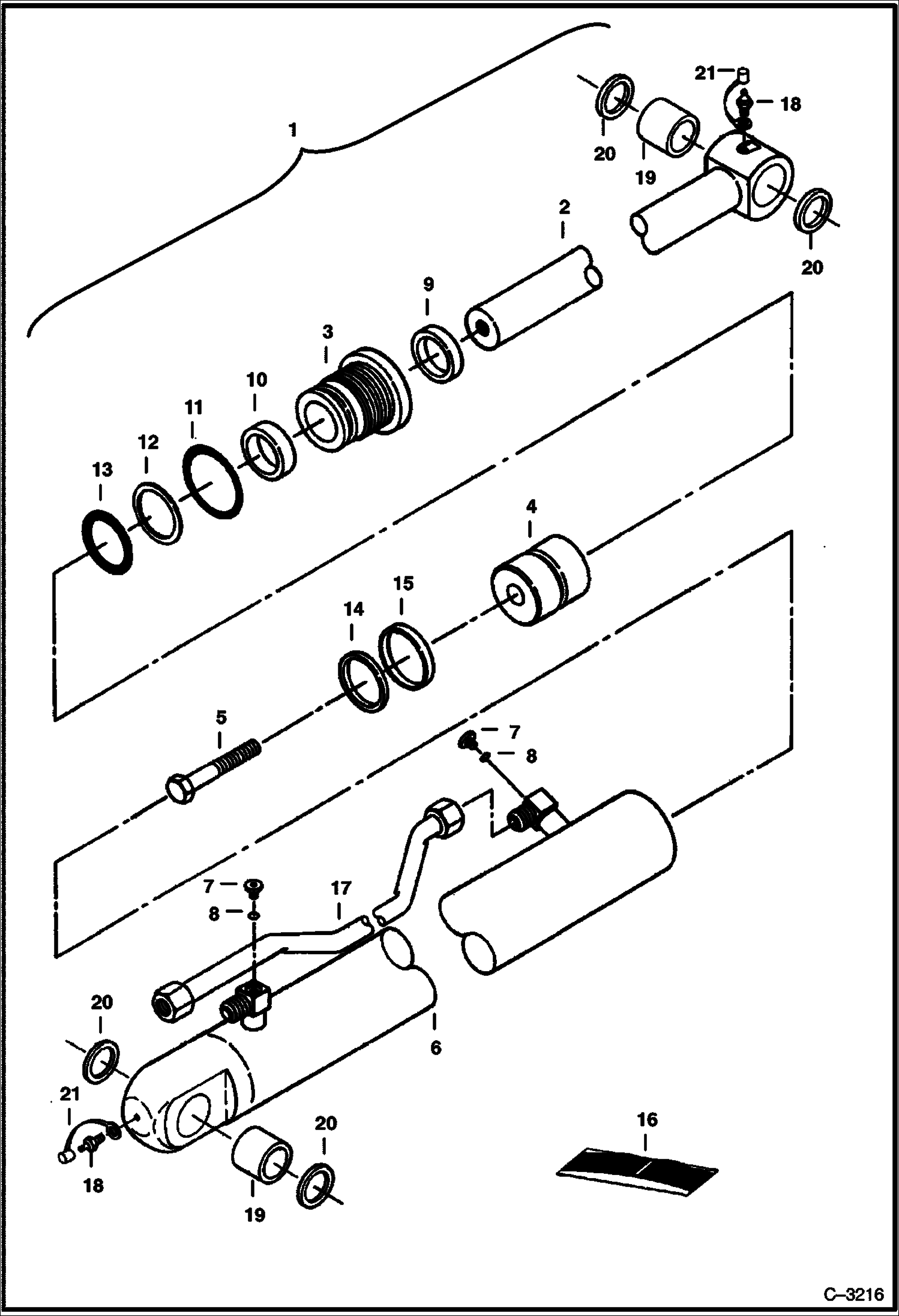

Запчасти Bobcat 225 ARM CYLINDER (Bobcat) HYDRAULIC SYSTEM

1

6586724

CYLINDER Ref. 2-15, 19 & 20 - Was 6537165 - A

2

6537057

ROD

3

6586718

HEAD, CYL TILT Was 6539498 - A

4

6537774

PISTON

5

6586508

SCREW Was 6536612 - A

6

6537904

HOUSING W/Ref. 7

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A

7

90KV5

PLUG tapered boss face

8

79K6

O RING 10 for flat boss face - Was 91F000005B - D

8

95K6

O'RING for tapered boss face

9

RING NSS - wiper

10

SEAL NSS

11

O-RING NSS

12

RING NSS - back-up

13

O-RING NSS

14

O-RING NSS

15

RING NSS

16

6589796

SEAL KIT Ref. 9-15 - Was 6661291 - A

17

6537168

TUBE

18

10H25

FITTING, GREASE 5

19

6537098

BUSHING

20

6652915

SEAL, OIL

21

6652943

COVER grease fitting
