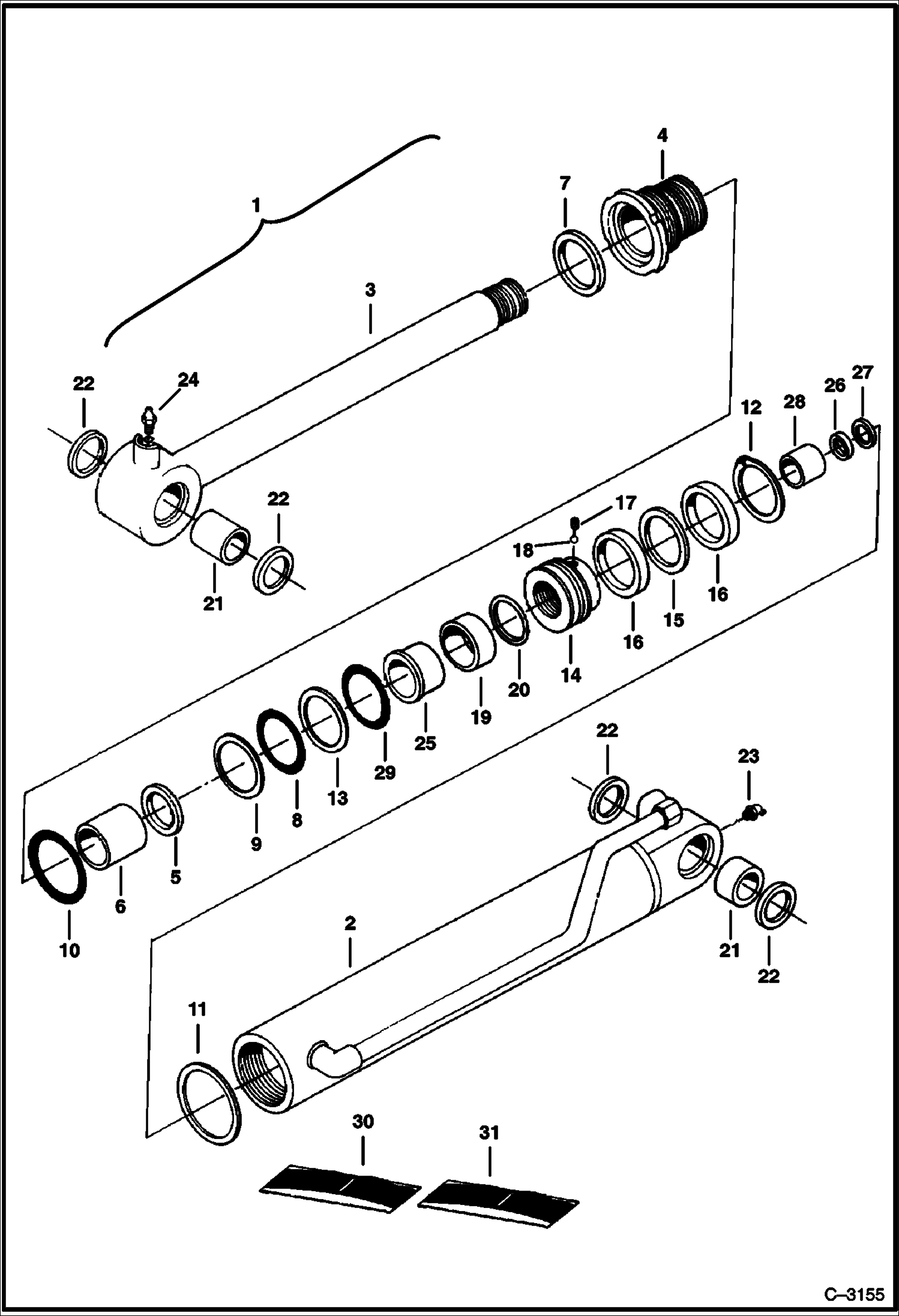

Запчасти Bobcat 225 ARM CYLINDER (Original Equipment) HYDRAULIC SYSTEM

1

CYLINDER See BTIE-009 NLA - Ref. 2-29 - Was 6653653 - A

2

CASE NLA - W/Ref. 21 - Was 6653649 - A

3

ROD NLA - W/Ref. 21 - Was 6653650 - A

4

6653679

HEAD

5

6653661

U-RING

6

6653662

BUSHING

7

6653663

RING wiper

8

6653664

O-RING

9

6653651

BACK-UP RING

10

6653666

O-RING

11

6653667

WASHER

12

6653652

SNAP RING

13

6653665

BACK-UP RING

14

PISTON NLA - Was 6653668 - A

15

6653669

SEAL

16

6653670

RING slide

17

6653671

SET SCREW

18

BALL NLA - steel - Was 6653035 - A

19

6653683

BUSHING

20

6653672

SHIM

21

BUSHING NLA - Was 6653673 - A

22

SEAL NLA - Was 6653674 - A

23

6653000

GREASE ZERK

24

6652990

GREASE ZERK

25

6653681

SHIM

26

6653654

SEAL cushion

27

6653655

STOP

28

6653656

BUSHING

29

6653682

O-RING

30

6653657

SEAL KIT Ref. 5, 7-11 & 29

31

6653676

SEAL KIT Ref. 15, 16 & 20
