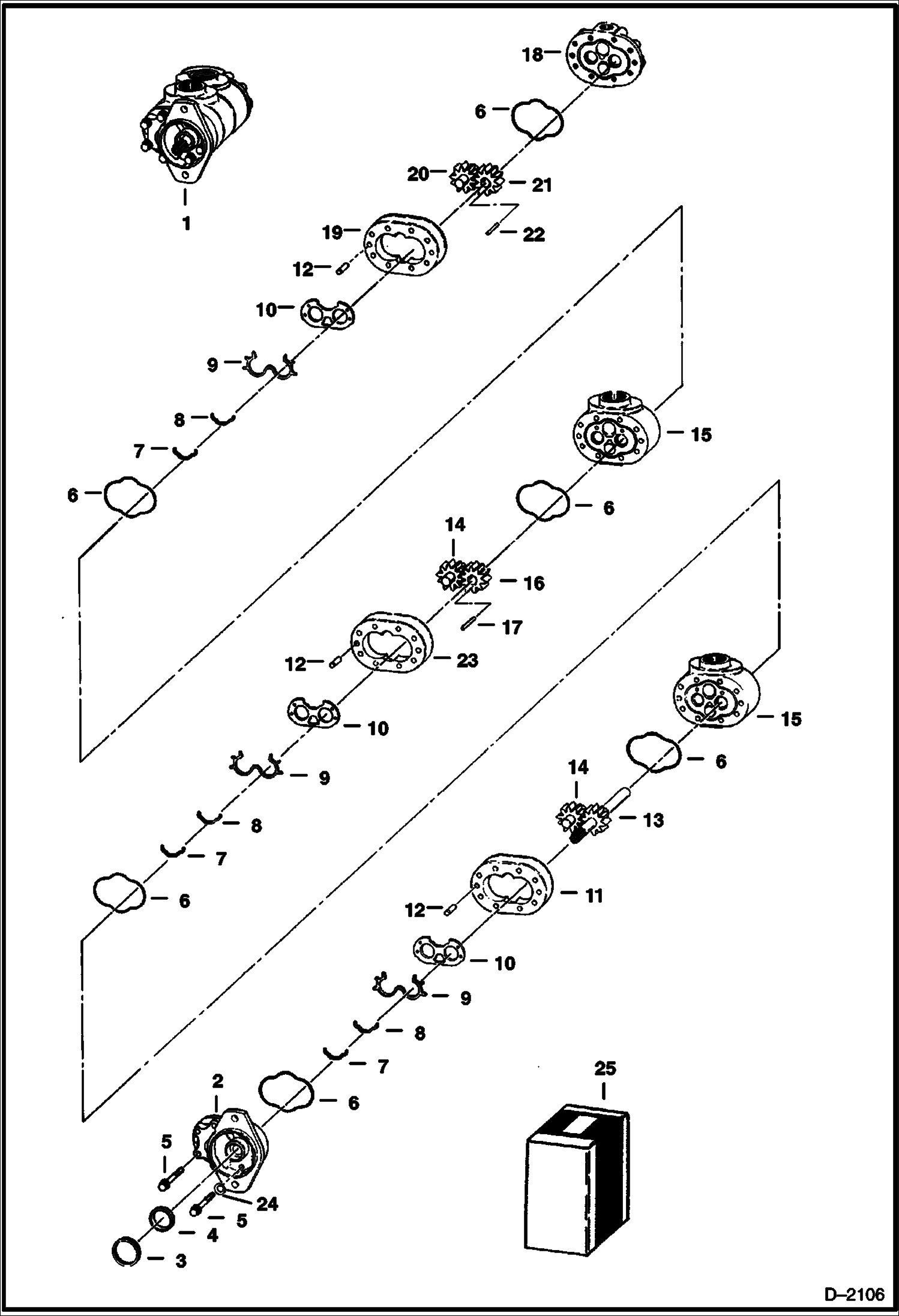

Запчасти Bobcat 225 TRIPLE GEAR PUMP HYDRAULIC SYSTEM

1

6662741

PUMP assy. - W/Ref. 2-24

2

PLATE NLA - front - Was 6648916 - A

3

SEAL NSS

4

WASHER NSS

5

6662744

BOLT

6

O-RING NSS

7

GASKET NSS

8

O-RING NSS - molded

9

SEAL NSS

10

PLATE NSS - wear

11

6632037

BODY W/Ref. 12

12

455536

DOWEL

13

6662742

SHAFT input - W/Gear

14

6631913

GEAR idler

15

6650614

PLATE adapter

16

6659921

GEAR drive

17

6631924

KEY

18

6631025

PLATE back

19

6647740

BODY

20

6662743

GEAR idler

21

6647737

GEAR drive

22

6647733

KEY

23

6631916

BODY

24

6656084

WASHER

25

6658961

SEAL KIT W/Ref. 3,4 & 6-10
