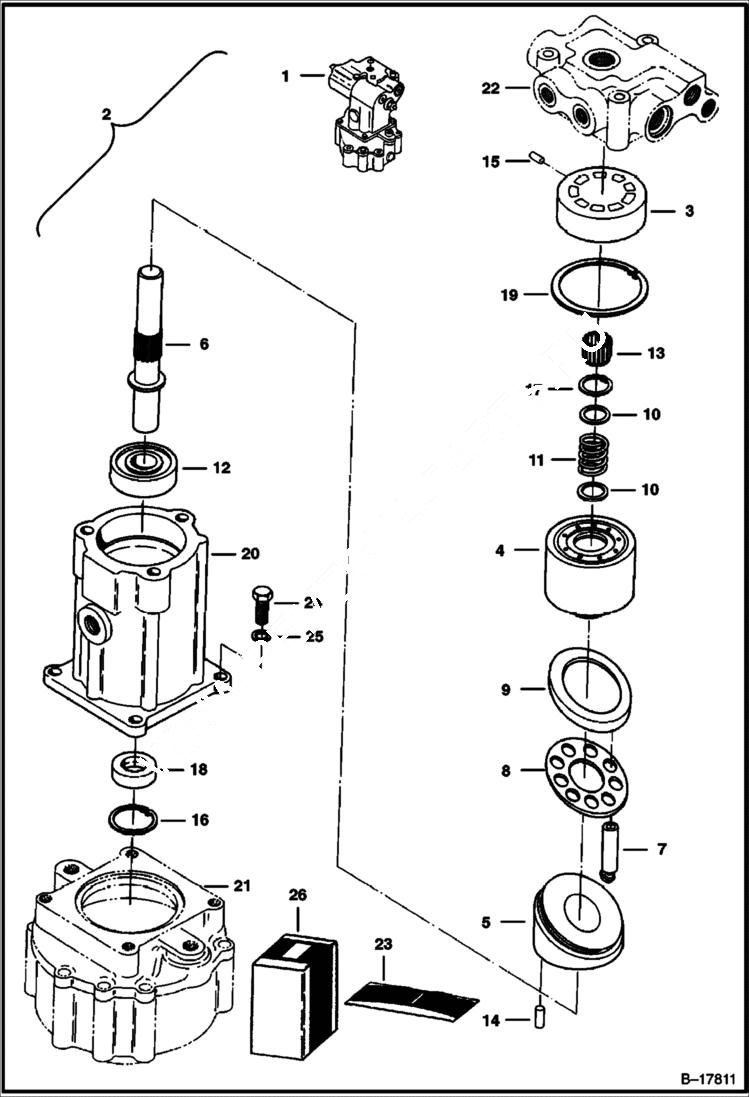

Запчасти Bobcat 225 SWING MOTOR HYDRAULIC SYSTEM

1

SWING MOTOR See Illustration SWING MOTOR/ B17812 See Illustration SWING MOTOR/ D1954 NLA - assy - W/Ref 2-26, also includes Ref. 2 on Ill D1954 & Ref, 2 on Ill B17812 - Was 6652861 - A

2

MOTOR NLA - assy - W/Ref. 3-20 - Was 6653703 - A

3

6653155

BLOCK port

4

BLOCK NSS - cylinder - Order Ref. 26

5

PLATE NSS - Order Ref. 26

6

6653156

SHAFT

7

PISTON NSS - Order Ref. 26

8

RETAINER NSS - Order Ref. 26

9

HOLDER NSS - Order Ref. 26

10

6653157

WASHER

11

6653158

SPRING

12

6653159

BEARING

13

6653160

BEARING

14

6653161

PIN

15

6653019

PIN

16

6653162

SNAP RING

17

6653163

SNAP RING

18

SEAL NSS

19

6653164

SNAP RING

20

6653154

CASE

21

HOUSING See Illustration SWING MOTOR/ D1954

22

VALVE See Illustration SWING MOTOR/ B17812

23

6653195

SEAL KIT See Illustration SWING MOTOR/ B17812 REFS. 18 & 32

24

6653193

BOLT

25

6653194

WASHER

26

6653198

KIT cylinder block - W/Ref. 4, 5 & 7-9
