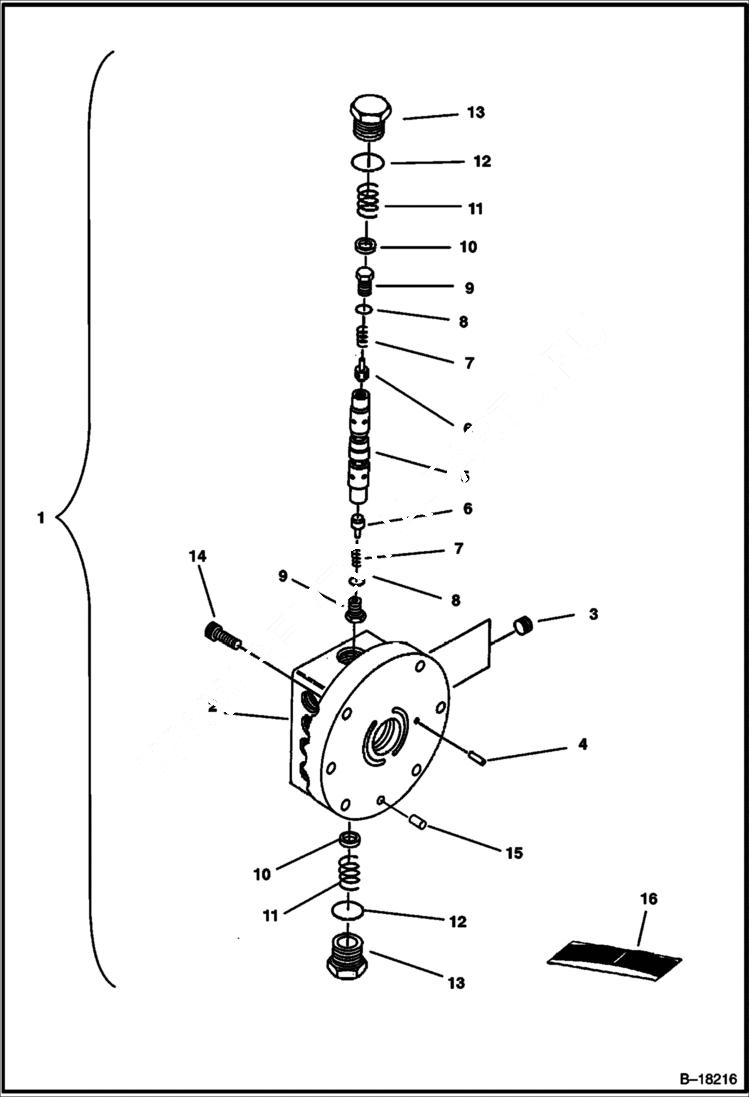

Запчасти Bobcat 225 TRAVEL MOTOR HYDRAULIC SYSTEM

1

VALVE ASSY NSS - Ref. 2-13

2

BODY NSS

3

PLUG NLA - Was 6653190 - A

4

6653018

PIN

5

SPOOL NLA - Was 6653009 - A

6

6653010

POPPET Was 6653009 - D

7

6653011

SPRING

8

6670234

O-RING See Ref. 16 - Was 6653013 - A

9

6653012

PLUG

10

6653014

SEAT

11

6653015

SPRING

12

6670228

O-RING See Ref. 16 - Was 6653017 - A

13

6653016

CAP

14

6653020

BOLT

15

6653019

PIN

16

6670152

SEAL KIT See Illustration TRAVEL MOTOR/ D1974 INCLUDES REF. 8, 12, REFS. 3, 26, 31 & 44 - WAS 6658592 - A

16

6670153

SEAL KIT See Illustration TRAVEL MOTOR/ D1974 (DOES NOT INCLUDE REF. 3) - (INCLUDES REFS. 8, 12, & REFS. 26, 31 & 44
