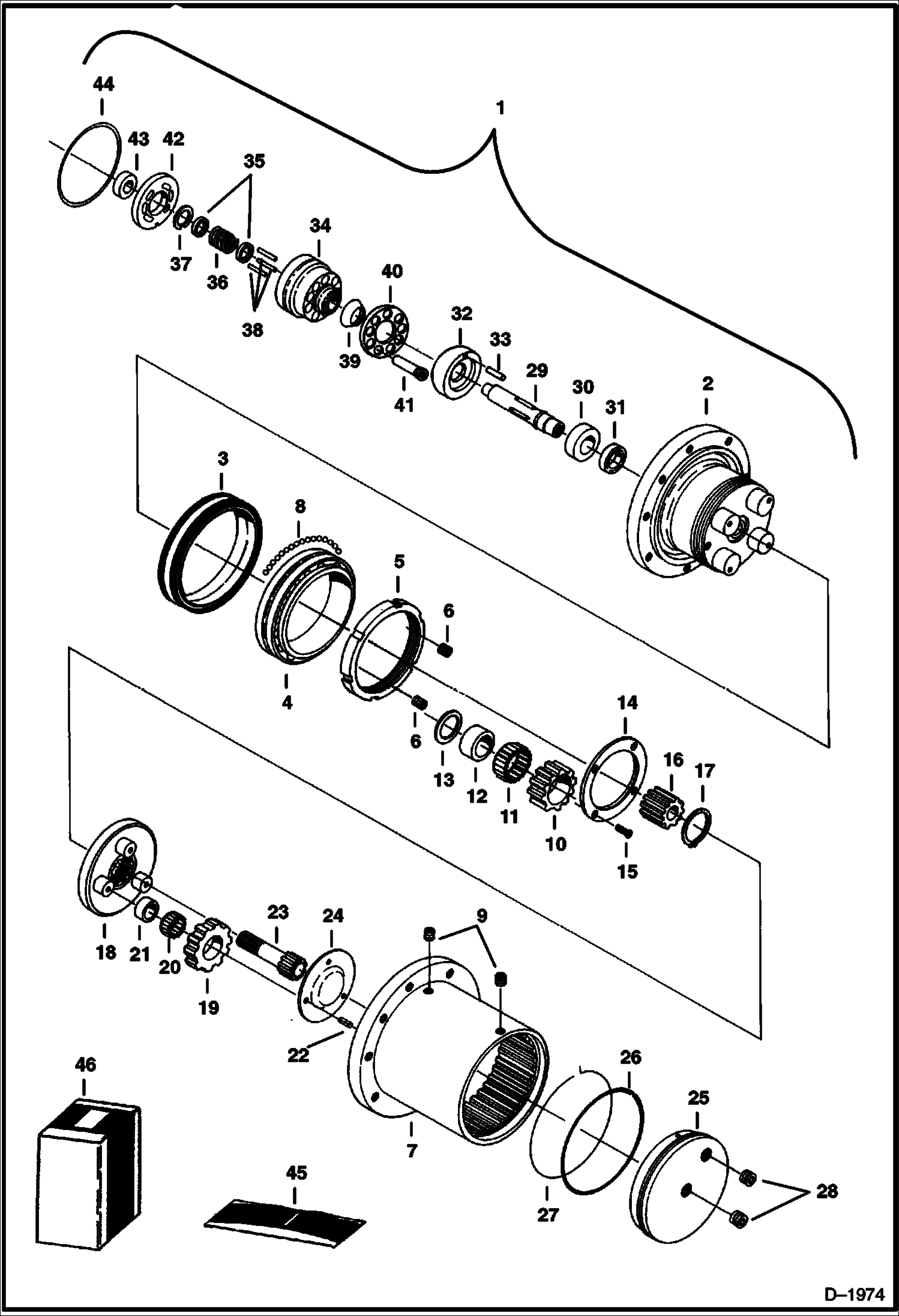

Запчасти Bobcat 225 TRAVEL MOTOR HYDRAULIC SYSTEM

1

MOTOR See Illustration TRAVEL MOTOR/ B18216 See BTIE-050 NLA - Ref. 2-44 - Also Ref. 1 on Ill B18216 - Was 6652841 - A

2

HOUSING NSS

3

6670220

SEAL Order Ref. 1 - Was 6655353 - A

4

BEARING NLA - Was 6655354 - A

5

6655355

NUT

6

PLUG NLA - Was 6653028 - A

7

HOUSING NSS

8

BALL NLA - Was 6653035 - A

9

6653036

PLUG

10

GEAR NLA - Was 6655357 - A

11

BEARING NLA - Was 6655358 - A

12

COLLAR NLA - Was 6655359 - A

13

WASHER NLA - Was 6655360 - A

14

6655361

PLATE thrust

15

SCREW NLA - Was 6655362 - A

16

GEAR NLA - Was 6655363 - A

17

6655364

SNAP RING

18

6655365

RETAINER

19

GEAR NLA - Was 6655366 - A

20

BEARING NLA - Was 6655367 - A

21

RACE NLA - Was 6655368 - A

22

PIN NLA - Was 6655369 - A

23

GEAR NLA - Was 6655370 - A

24

PLATE NLA - thrust - 1,8 mm (.07'' ) thick - Was 6655371 - A

24

PLATE NLA - thrust - 2,3 mm (.09'') thick - Was 6655372 - A

24

PLATE NLA - thrust - 2,8 mm (.11'') thick - Was 6655373 - A

25

COVER NLA - Was 6655374 - A

26

6670233

O-RING Incl. W/Ref. 45 - Was 6655375 - A

27

WIRE NLA - lock - Was 6655376 - A

28

6653051

PLUG

29

SHAFT NLA - Was 6653052 - A

30

BEARING NLA - Was 6653053 - A

31

6670236

SEAL See Ref. 45 - Was 6653054 - A

32

6655377

PLATE

33

PIN NLA - Was 6653056 - A

34

BARREL NSS - cylinder - See Ref. 46

35

6653057

HOLDER

36

6653058

SPRING

37

6653059

SNAP RING

38

6653060

PIN

39

6653061

RETAINER

40

6655378

RETAINER

41

PISTON NSS - See Ref. 46

42

6653063

PLATE

43

6653064

BEARING

44

6670238

O-RING See Ref. 45 - Was 6653065 - A

45

6670152

SEAL KIT See Illustration TRAVEL MOTOR/ B18216 includes Ref. 3, 26, 31, 44, & Refs. 8 & 12 on Ill B18216 - Was 6658592 - A

45

6670153

SEAL KIT See Illustration TRAVEL MOTOR/ B18216 does not include ref. 3 - includes Refs. 8, 12, 26 & 44 on Ill B18216

46

6658595

PISTON KIT Includes Ref. 34 & 41
