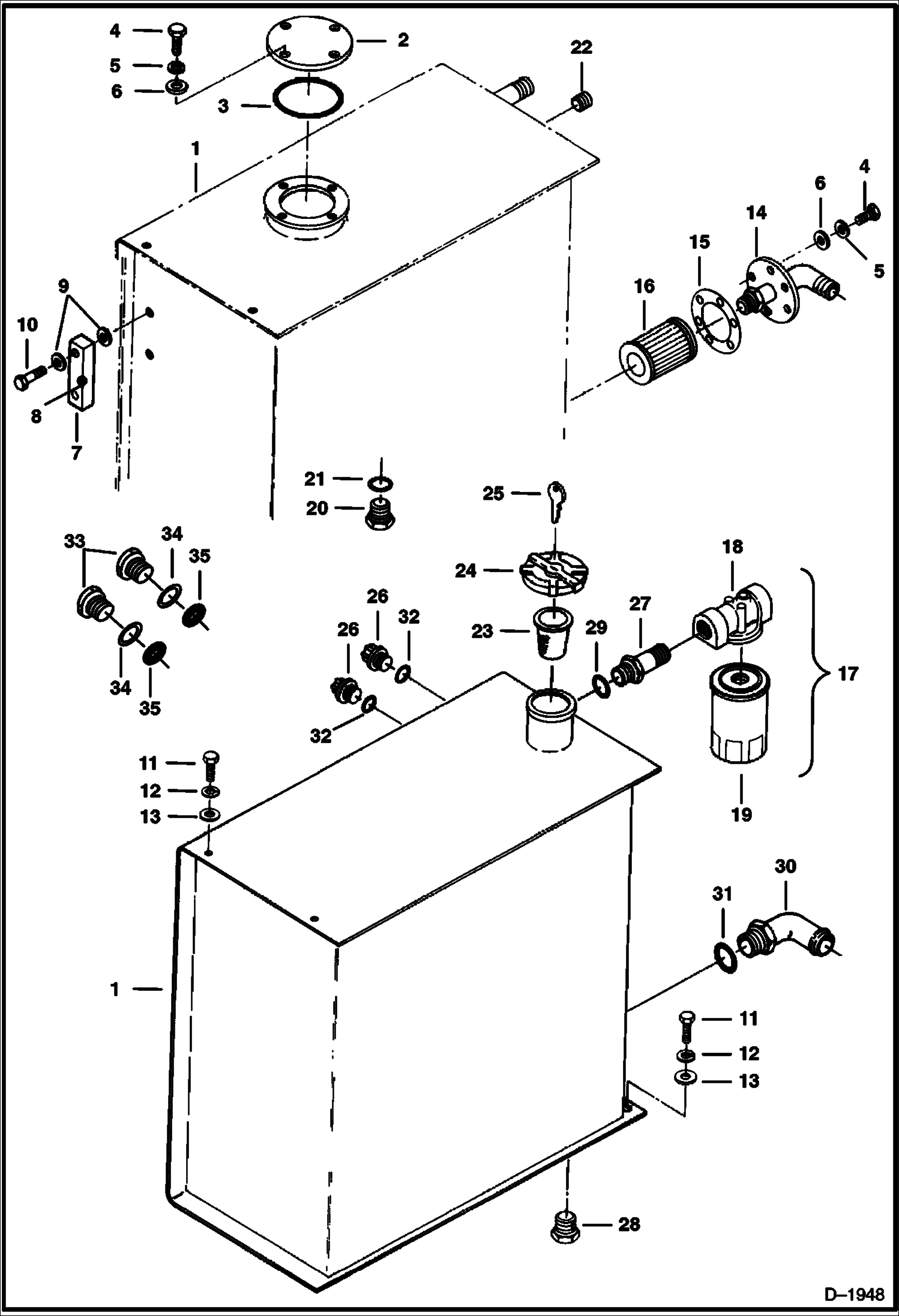

Запчасти Bobcat 225 HYDRAULIC TANK & FILTER HYDRAULIC SYSTEM

1

TANK NLA - Order Tank 6535605 , Screen 6569219 , Cap 6659249 , Fitting 6535626 , Sight Gauge 6539386 (2) & Fitting 6535627 - Was 6535512 - A

1

6535605

TANK

2

6535149

PLATE

3

O-RING NLA - Was 6534254 - A

4

1CM820

BOLT

5

6EM80

WASHER, SPRING

6

15EM80

WASHER

7

6535146

GAUGE sight - Ref. 7-10

8

BALL NSS - Was 6534748 - A

9

GASKET NSS - Was 6535145 - A

10

BOLT NSS - Was 6535144 - A

11

1CM1020

BOLT

12

6EM100

WASHER

13

15EM100

WASHER

14

6535514

PLATE

15

6534834

GASKET

16

6534264

SCREEN filter

17

FILTER NLA - assy - Ref. 18 & 19 - Was 6655072 - A

18

6655073

HEAD

19

6653336

ELEMENT

20

6534265

PLUG W/Ref. 21

21

6655247

O-RING

22

6535588

PLUG

23

7120881

SCREEN, FILLER Was 6569219 - A

24

CAP NLA - locking - W/Ref. 25 - code GC 020 - order 6662030 - Was 6659249 - A

24

6662030

CAP locking - order key separately -code PK510

25

6654374

KEY key code GC 020

25

6587458

KEY key code PK 510

26

SIGHT GAUGE NLA - W/Ref. 32 - Order Ref. 33

27

6535626

ADAPTER W/Ref. 29

28

41K12

PLUG

29

79K16

O RING 10

30

6535627

ELBOW W/Ref. 31

31

79K24

O RING 10

32

79K12

O RING 10

33

6539386

SIGHT GAUGE W/Ref. 34 & 35

34

6539342

WASHER

35

79K10

O RING 10
