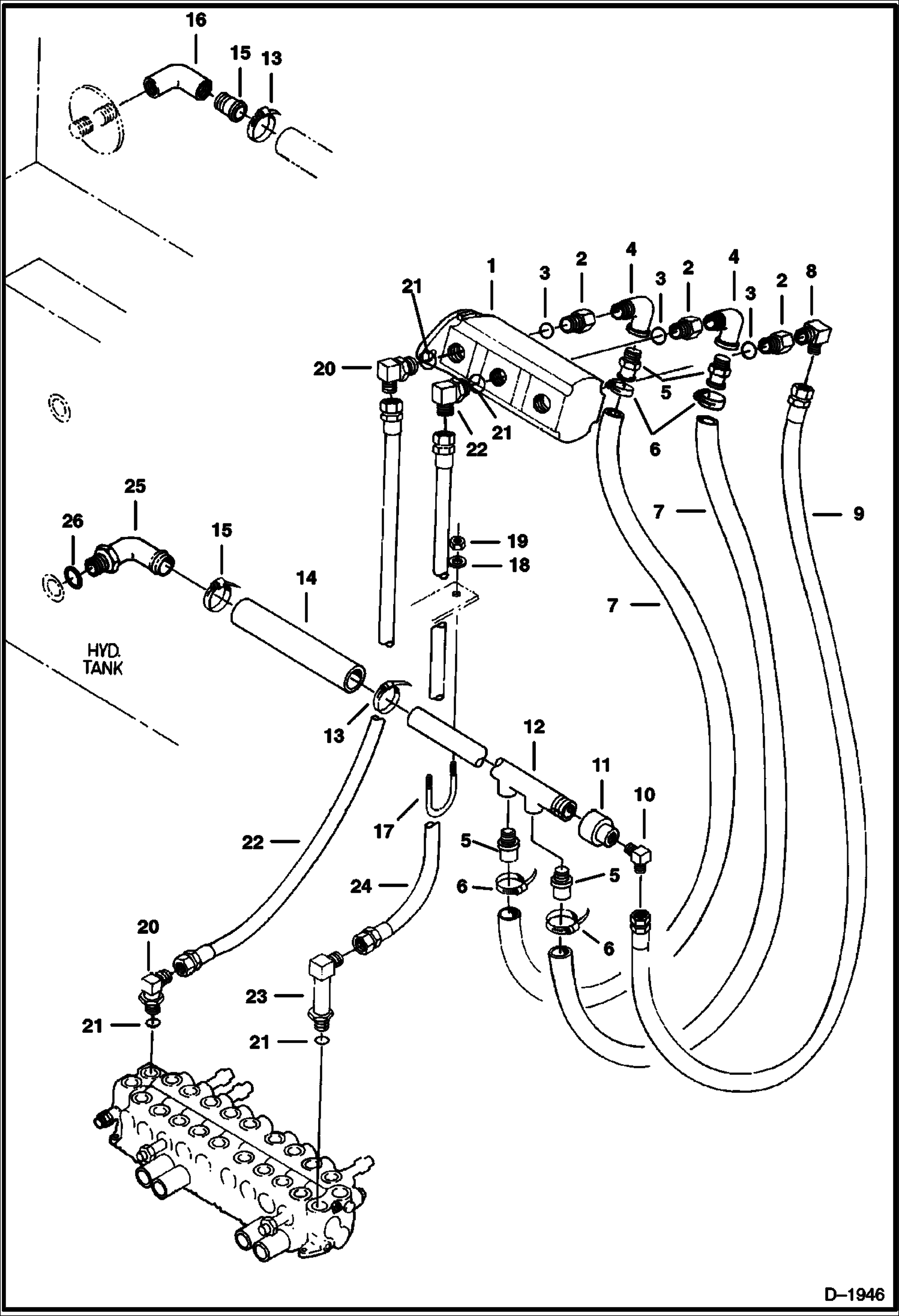

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

PUMP See Illustration GEAR PUMP/ B13031 See BTIE-023 NLA - WAS 6652840 - A

2

6535585

ADAPTER W/Ref. 3

3

79K12

O RING 10

4

6535124

ELBOW

5

6535586

FITTING

6

42H12

CLAMP 10

7

6534297

HOSE

8

6535123

ELBOW

9

6534282

HOSE

10

6535592

ELBOW

11

6535591

ADAPTER

12

6535382

PIPE suction

13

42H24

CLAMP-5

14

HOSE NLA - Was 6534298 - A

15

6535388

FITTING

16

6535601

ELBOW

17

6535649

U-BOLT

18

15EM100

WASHER

19

1DM10

NUT

20

ELBOW NLA - W/Ref. 21 - Was 6535114 - A

21

79K10

O RING 10

22

6534271

HOSE

23

6535577

ELBOW W/Ref. 21

24

6587785

HOSE Was 6534272 - A

25

6535627

ELBOW W/Ref. 26

26

79K24

O RING 10
