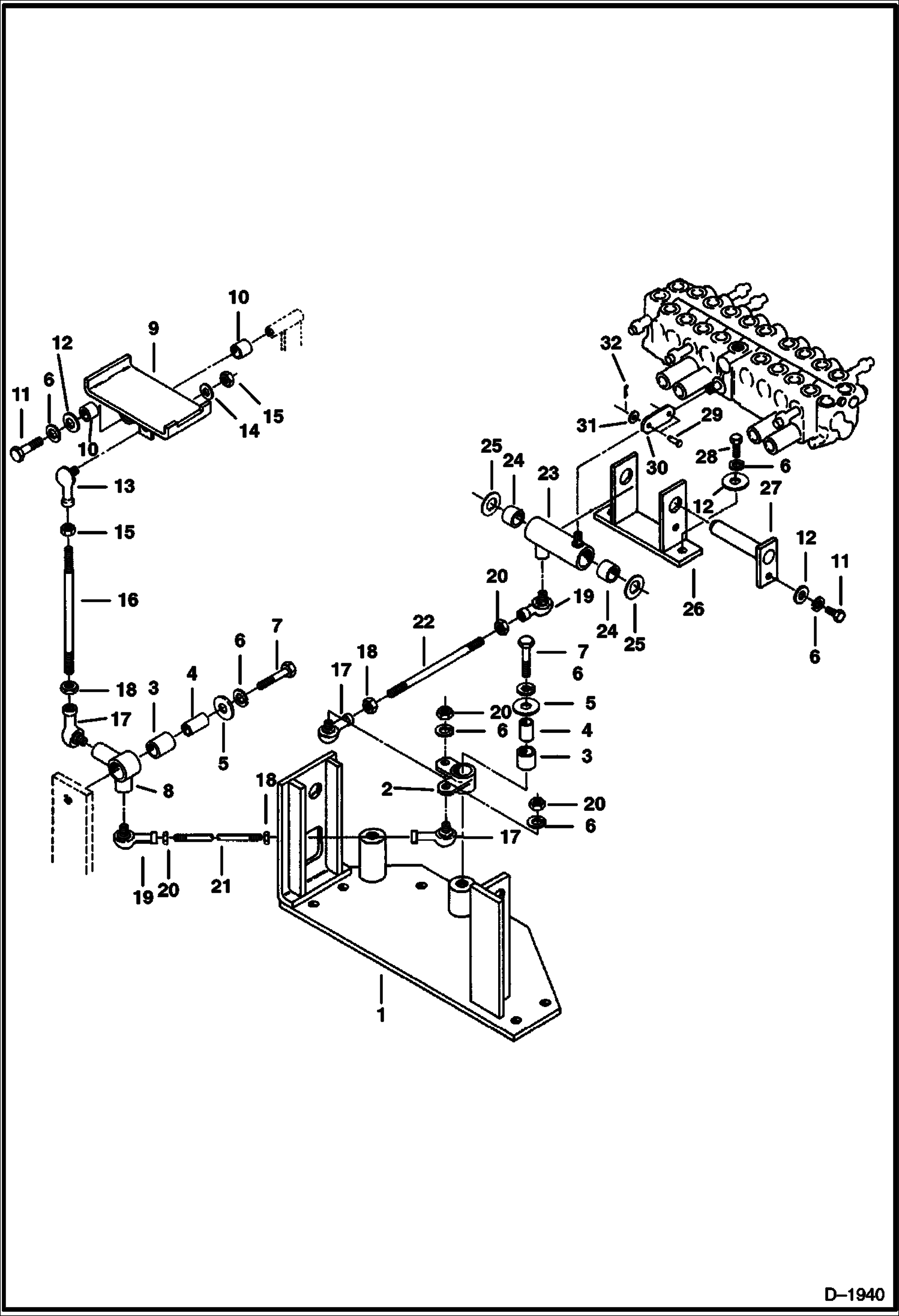

Запчасти Bobcat 225 CONTROL PEDAL (Boom Swing) CONTROLS

1

6535374

PLATE

2

6535356

LEVER W/Ref. 3

3

6535309

BUSHING

4

6535371

SPACER

5

6535665

WASHER

6

6EM100

WASHER

7

1CM1040

BOLT

8

6535380

LEVER W/Ref. 3

9

PEDAL NLA - W/Ref. 10 - Was 6535378 - A

10

6652555

BUSHING

11

1CM1020

BOLT

12

15EM100

WASHER

13

6535026

BALL JOINT 8 mm thread - R.H.

14

6EM80

WASHER, SPRING

15

1DM8

NUT

16

6535365

ROD

17

6534259

BALL JOINT 10 mm thread - L.H.

18

6533906

NUT

19

6535010

BALL JOINT 10 mm thread - R.H.

20

1DM10

NUT

21

6535361

ROD

22

6535358

ROD

23

6535352

LEVER

24

6535309

BUSHING Was 6535368 - B

25

SHIM NLA - Was 6535666 - A

26

6535376

BRACKET

27

6535377

SHAFT

28

1CM1025

BOLT

29

6534700

PIN

30

6535366

LINK

31

6535011

WASHER

32

13JM10016

COTTERPIN
