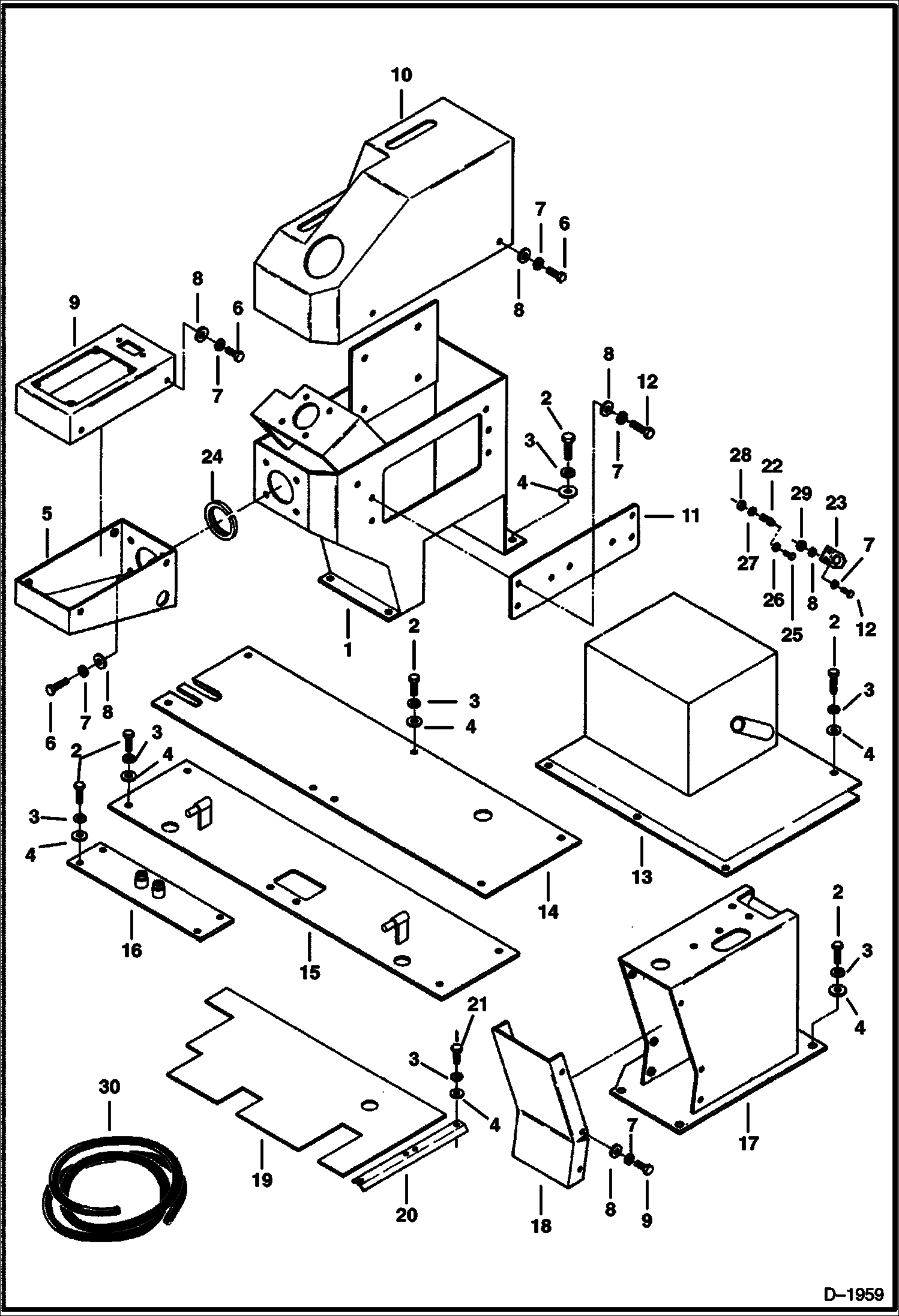

Запчасти Bobcat 225 CONTROL CONSOLE AND FLOORBOARDS CONTROLS

1

6535394

CONSOLE R.H.

2

1CM1020

BOLT

3

6EM100

WASHER

4

15EM100

WASHER

5

6535510

PANEL

6

1CM820

BOLT

7

6EM80

WASHER, SPRING

8

15EM80

WASHER

9

PANEL NLA - instrument - Was 6535511 - A

10

6535506

COVER console - R.H.

11

6535501

PLATE

12

1CM816

BOLT Was 1CM00815B - A

13

6535505

COVER

14

6537602

PLATE Was 6535504 - A

15

6535503

PLATE

16

6535381

PLATE manifold

17

6535392

CONSOLE See Illustration CONTROL CONSOLE/ D1966 See Illustration CONTROL CONSOLE/ D1971 L.H.

18

6535399

COVER

19

6535648

FLOOR MAT Cut fo Fit

20

6535632

ANGLE

21

1CM1025

BOLT

22

6536288

PLATE lock bolt retainer

23

6536287

BRACKET lock bolt retainer

24

MOULDING NLA - 306 mm - Order Ref. 30

25

1CM516

BOLT

26

6EM50

LOCK-WSHR

27

15EM50

WASHER

28

1DM5

NUT

29

NUT NLA - Was 1DM00080B NLA - Was 1DM00080B - A

30

6654139

MOULDING bulk - sold per foot
