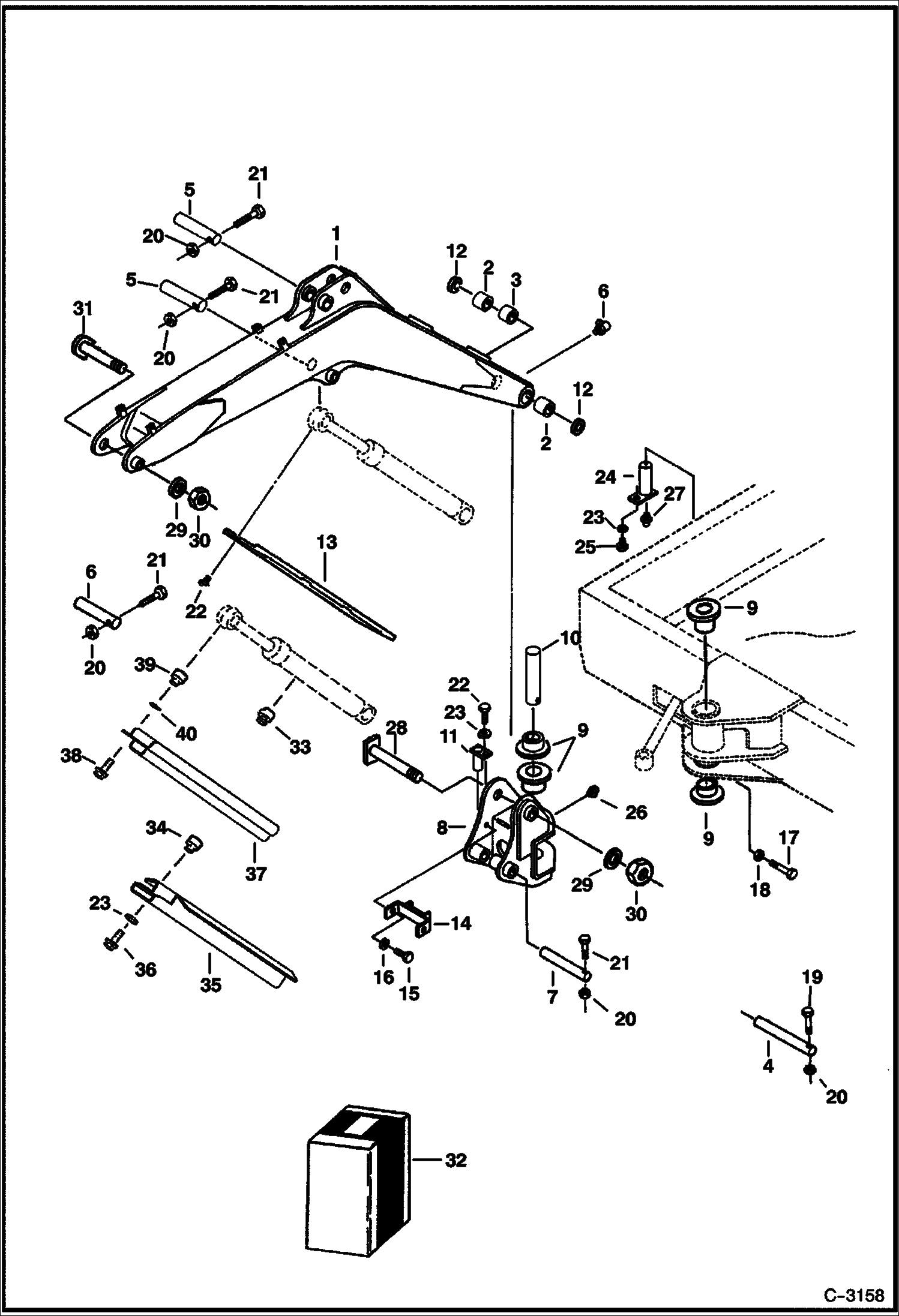

Запчасти Bobcat 225 SWING BRACKET & BOOM WORK EQUIPMENT

1

BOOM NLA - See E-012 - Was 6534056 - A

2

6539824

BUSHING Was 6534076 - A

3

6534075

SPACER

4

6534168

PIN

5

6534165

PIN

6

6534169

PIN

7

6534164

PIN

8

6587332

BRACKET swing -also order Refs. 28, 29 & 30 - Was 6534200 - A

9

6534052

BUSHING

10

6534167

PIN

11

6534177

PIN

12

6535312

WASHER

13

6538353

SHIELD cylinder-also order 17EM00120B (1) & 6EM00120B (1) - Was 6534230 - A

14

6535386

CLAMP

15

1CM1020

BOLT

16

6EM100

WASHER

17

1CM1690

BOLT Was 1DM01690B - D

18

39DM16

NUT Was 49DM00016B - D

19

1CM1080

BOLT

20

49DM10

NUT Was 39DM00010B - D

21

1CM1070

BOLT

22

1CM1220

BOLT

23

6EM120

WASHER

24

6535633

PIN Was 6534178 - A

25

1CM1225

BOLT

26

12H15

FITTING, GREASE 5

27

10H25

FITTING, GREASE 5

28

6587227

PIN boom mounting - W/later style replacement swing bracket

29

1EM300

WASHER

30

39DM30

NUT Was 40DM30 - A

31

6587225

PIN arm mounting - W/later style replacement boom

32

6800328

KIT Boom Cylinder Guard - W/Refs. 33-36 - See Service Letter Dated

33

6628788

GUIDE Boom Cylinder - Weld on

34

6800137

SPACER for Use W/Ref.35 (NLA/6596469 shield)

35

SHIELD NLA - Order 7130859 shield - also order Ref. 38-40 - Was 6596469 - A

36

29CM1235

BOLT for Use W/Ref.35 (NLA/6596469 shield) - Was 59CM01235B

37

7130859

SHIELD W/A

38

7131273

SCREW for Use W/Ref. 37

39

7131109

SPACER for Use W/Ref. 37

40

6536803

WASHER spring washer - for Use W/Ref 37
