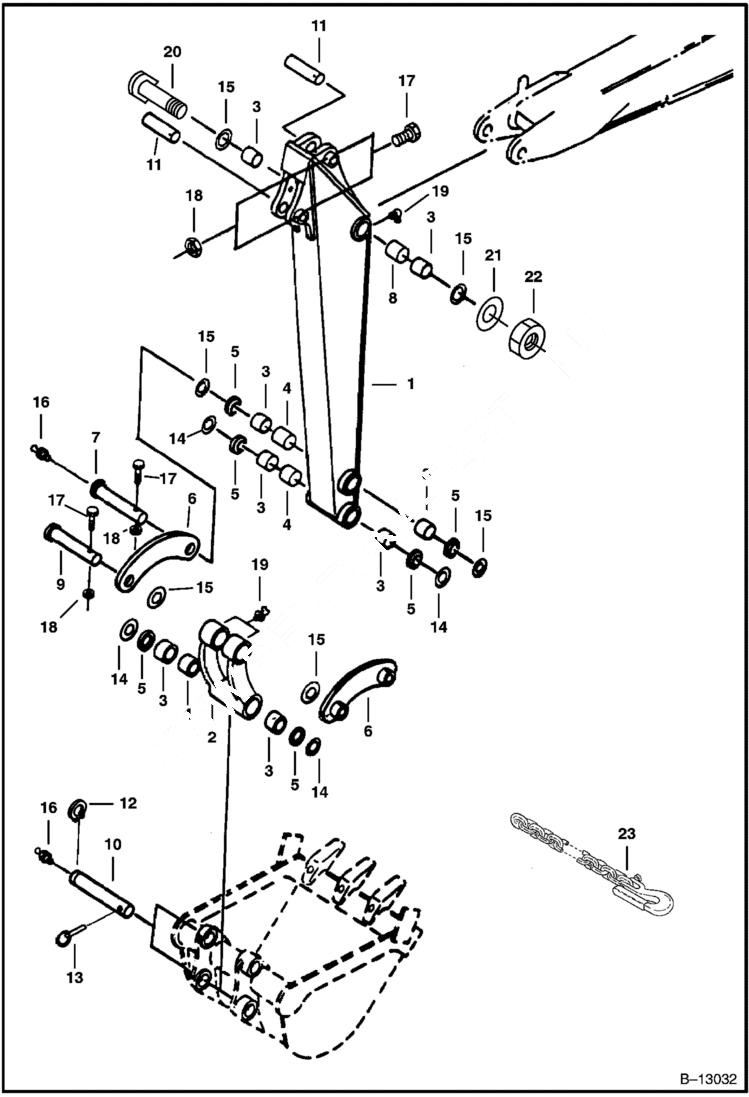

Запчасти Bobcat 225 ARM & BUCKET LINK WORK EQUIPMENT

1

ARM See BTIE-012 NLA - Was 6534139 - A

1

LONG ARM Not Available on 225

2

6534097

LINK W/Ref. 3-5

3

6539825

BUSHING, PRESS FIT Was 6534095 - A

4

6534094

SPACER

5

6652915

SEAL, OIL dust

6

6534101

LINK

7

6534174

PIN

8

6534092

SPACER

9

6534175

PIN

10

PIN See BTIE-081

11

6534165

PIN

12

6534154

RING

13

6560382

PIN, LOCK

14

6534111

WASHER

15

6535313

SHIM

16

10H25

FITTING, GREASE 5

17

1CM1070

BOLT

18

49DM10

NUT Was 39DM00010B - A

19

12H15

FITTING, GREASE 5

20

6587225

PIN arm mounting -when using later style replacement boom only

21

1EM300

WASHER

22

39DM30

NUT Was 40DM30 - A

23

6665374

CHAIN lifting - available thru MELROE PARTS - not factory installed
