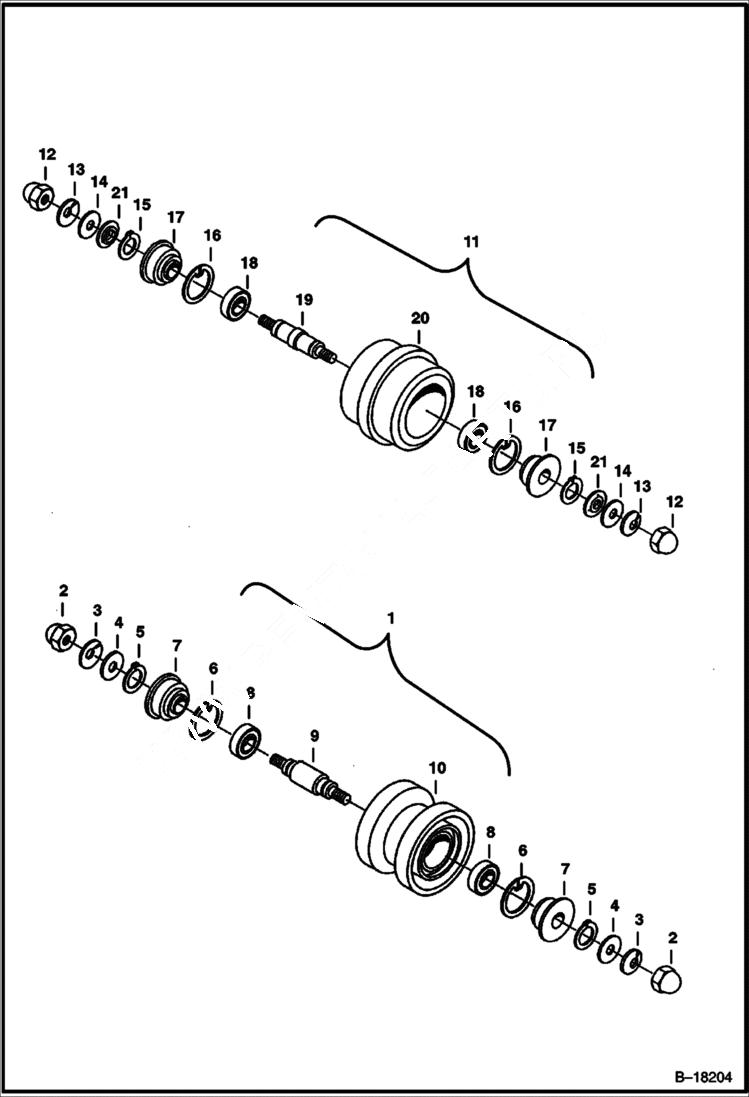

Запчасти Bobcat 225 TRACK ROLLER UNDERCARRIAGE

1

6534244

ROLLER ASSY. See BTIE-030 W/Refs. 2-10 - For Rubber Track-except for rubber track 6663906 -See remarks for steel roller also

2

36DM20

NUT

3

6EM200

WASHER

4

15EM200

WASHERS

5

5JM30

SNAP RING Was5JM-35 - D

6

7JM62

SNAP RING Was 7JM00072B - D

7

6652379

SEAL Was 6655061 - D

8

853189

BEARING Was 6533982 - A

9

SHAFT NLA - Was 6535565 - A

10

ROLLER NLA - Rubber Track - Was 6535564 - A

11

ROLLER ASSY. See BTIE-030 NLA - W/Refs. 12-21- Order 6808133 - Was 6589002 - A

12

36DM20

NUT

13

6EM200

WASHER

14

15EM200

WASHERS

15

5JM35

SNAPRING Was 6655059 - A

16

7JM72

SNAP RING Was 6655060 - A

17

6655061

SEAL

18

6655062

BEARING

19

SHAFT NLA - Was 6589003 - A

20

ROLLER NLA - steel track - Order 6808133 - Was 6589004 - A

21

6589646

SPACER Order 6808133 -Was 6535563 - A
