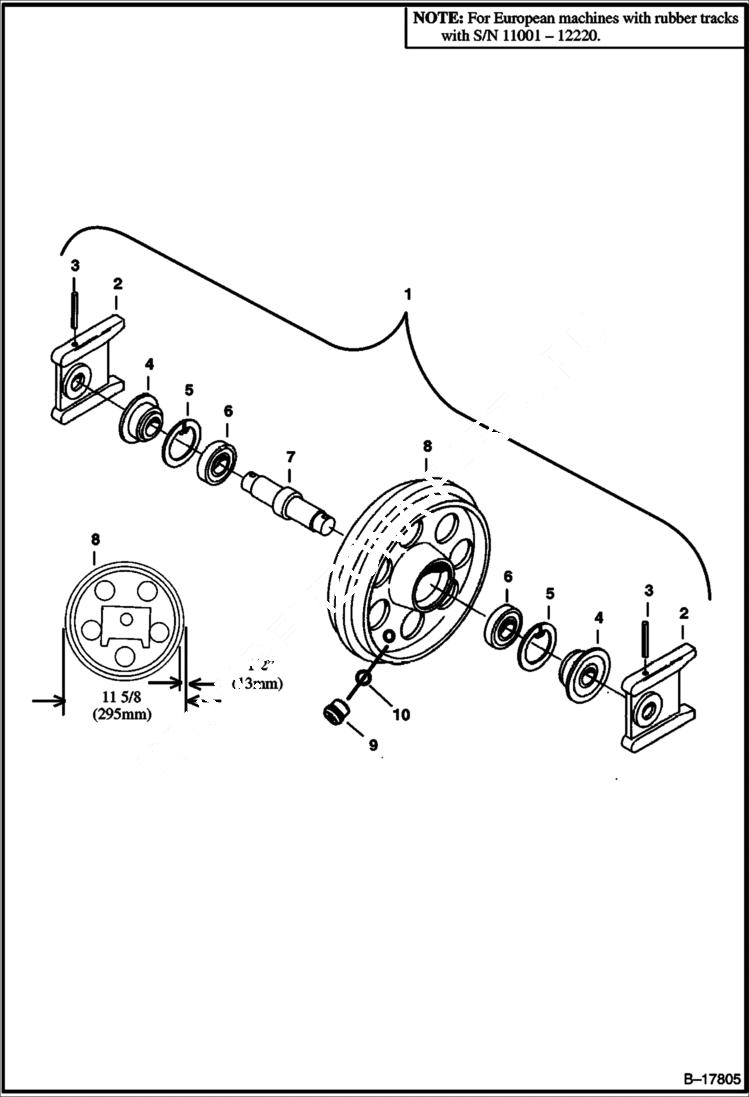

Запчасти Bobcat 225 FRONT IDLER UNDERCARRIAGE

1

6808250

FRONT IDLER Assy. - Ref. 2-8 - W/11- 5/8 '' (295mm) diameter

2

6588995

BLOCK

3

2JM1060

PIN

4

6717802

SEAL

5

7JM72

SNAP RING

6

6684339

BEARING Was 6655856 - A

7

6588997

SHAFT

8

6807911

IDLER See Illustration FRONT IDLER/ B17805 W/11 -5/8 '' (295mm) diameter - check outer diameter before ordering parts

9

90K3

PLUG W/Ref.10 - Was 90KV3 - D

10

95K4

O-RING
