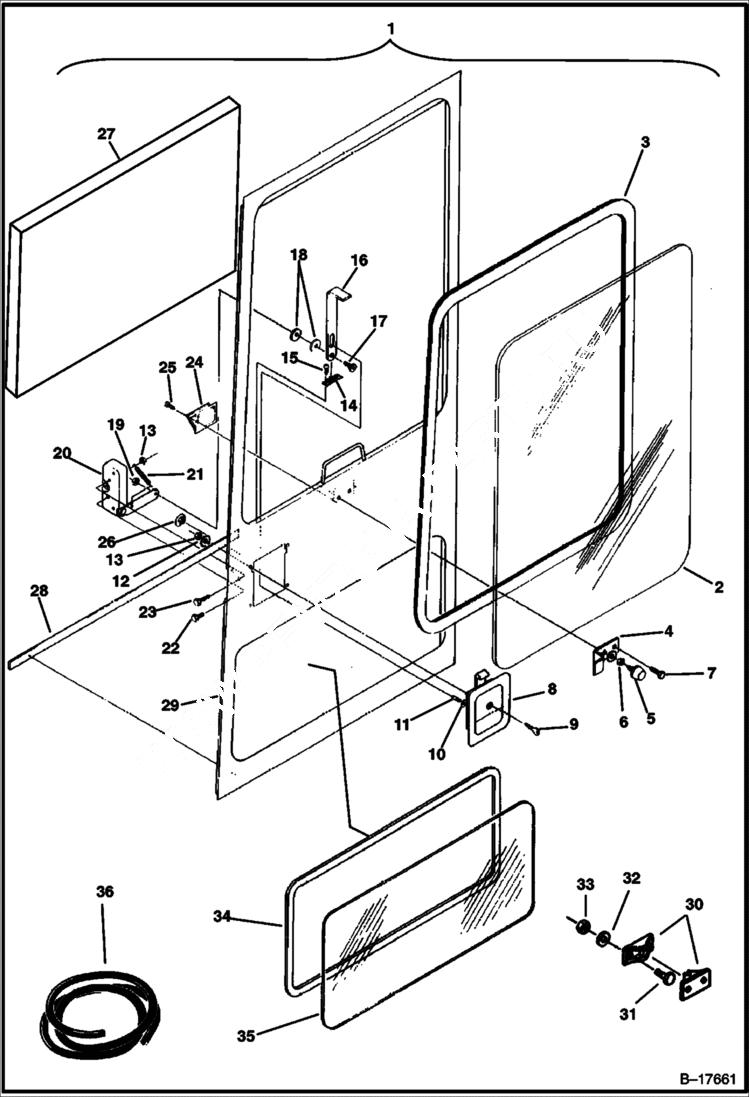

Запчасти Bobcat 225 OPERATOR CAB MAIN FRAME

1

6662022

DOOR assy. - Ref. 2-29 - Was 6654787 - A

2

6654174

GLASS

3

6648405

SEAL 108'' long (2743mm ) - Bulk Sold Per Foot

4

6657097

STRIKER

5

6657098

BUMPER

6

61D5

NUT

7

6657099

BOLT

8

6648421

LATCH W/Ref. 9

9

6650683

KEY LL-24

9

6650682

KEY LL-22

10

6E60

WASHER

11

6654154

BOLT striker

12

4E4

WASHER

13

85D4

NUT 5

14

6648413

BUSHING door

15

6532168

BOLT

16

6654171

CATCH

17

6534900

BOLT Was 6648408 - A

18

6648414

WASHER

19

85D5

NUT 5

20

6648417

LATCH

21

6654147

SPRING

22

17C412

BOLT 5

23

17C418

BOLT

24

6654785

ASH TRAY

25

6654142

SCREW

26

PLUG NLA - Was 6648354 - A

27

INSULATION NLA - not used on replacement door - Was 6654173 - A

28

6654162

SEAL

29

DOOR NSS - Order 6662022 - Was 6654786 - A

30

6654153

CATCH door

31

45G1012

SCREW

32

25E10

WASHER

33

12D10

NUT

34

MOULDING NLA - 72'' (1829 mm) long - Order Ref. 36

35

6662058

GLASS Use W/replacement door assy. 6662022 only

36

6648405

SEAL bulk - Order Per Foot
