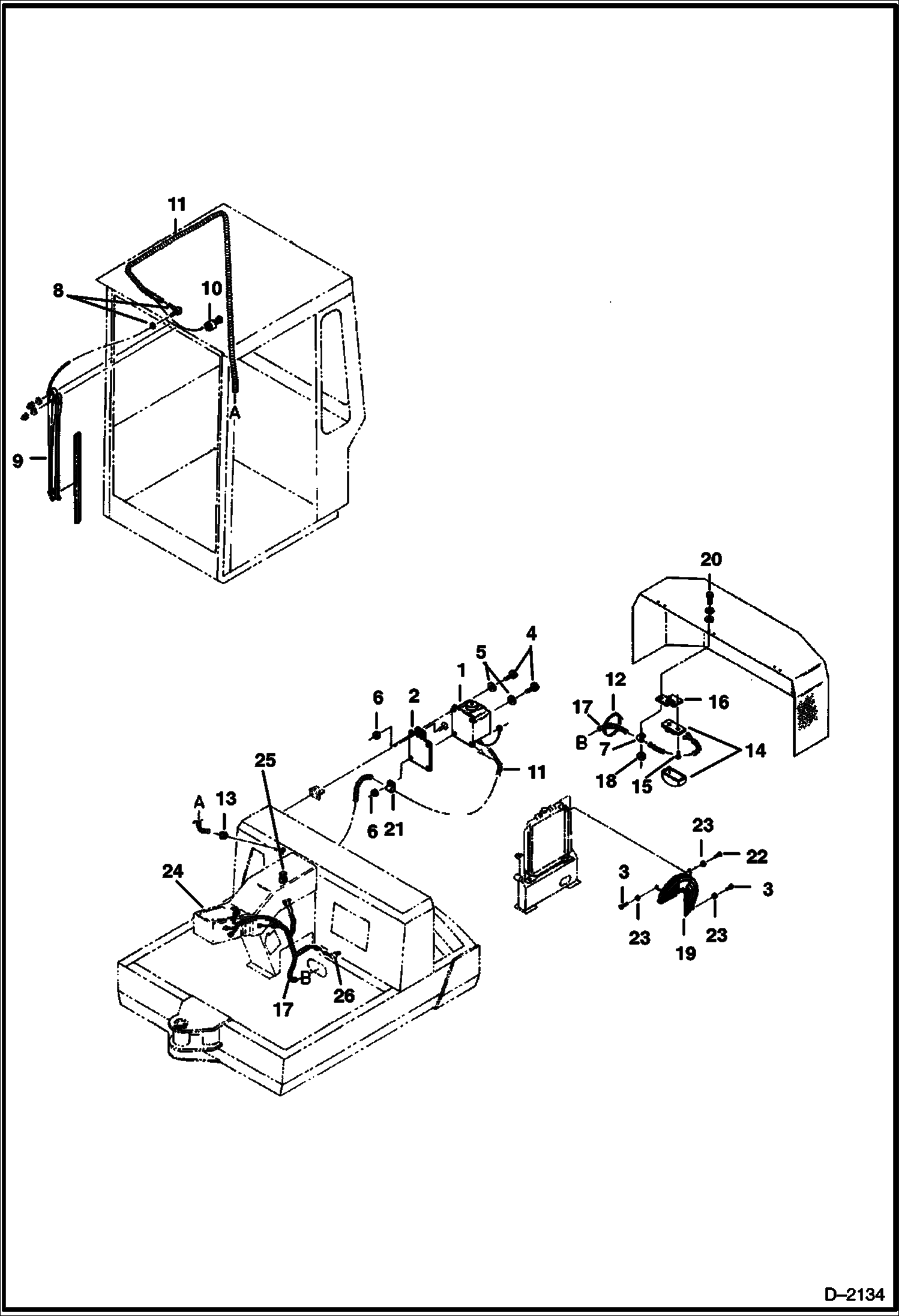

Запчасти Bobcat 225 WINDOW WASHER, ENGINE LIGHT & FAN GUARD For Excavators Sold in Scandinavian Countries ACCESSORIES & OPTIONS

1

6658878

WASHER Window

2

6538713

BRACKET

3

1CM616

SCREW

4

1CM625

BOLT

5

15EM60

WASHER

6

1DM6

NUT

7

30H35

CLAMP 10

8

6658880

ELBOW

9

6658879

ARM W/Washer Nozzle

10

6665398

SWITCH Wiper & Washer - Was 6658877 - A

11

6538804

HARNESS W/Washer Hose

12

6610510

TIE

13

6630043

GROMMET

14

6539036

LIGHT W/Ref. 15

14

6655055

BULB #1141

15

6532168

BOLT

16

6539001

BRACKET

17

6539035

HARNESS Light & Swing Brake

18

1DM10

NUT

19

GUARD NLA - Fan - Was 6538974 - A

20

1CM1030

BOLT

21

30H33

CLIP

22

1CM620

BOLT

23

25E13

WASHER 5

24

COVER NLA - R.H. Control Console - Was 6586565 - A

25

6660931

SWITCH

26

6660935

SOLENOID See Illustration HYDRAULIC CIRCUITRY/ D2135

26

6657409

SEAL KIT
