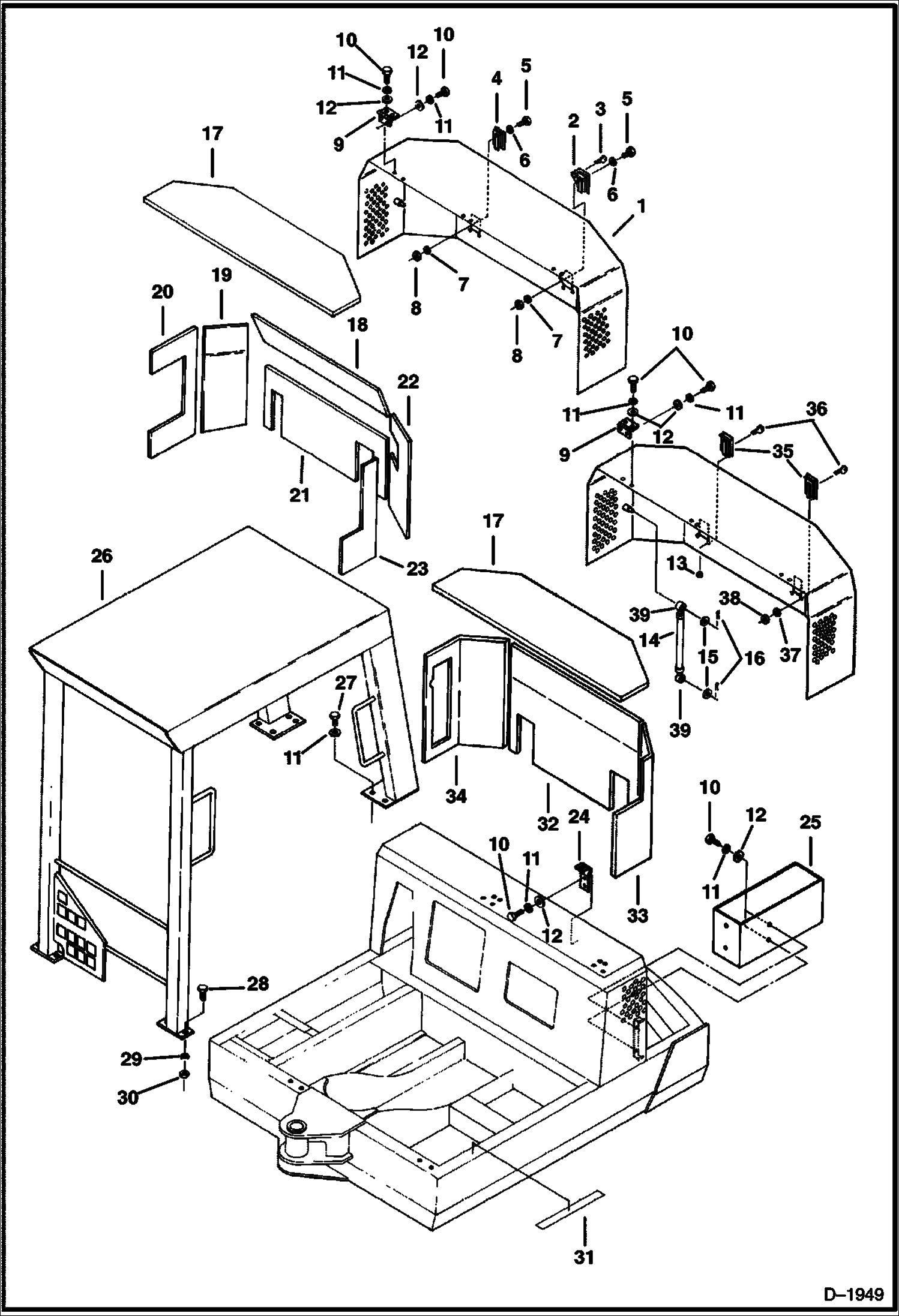

Запчасти Bobcat 225 MACHINE CANOPY & ENGINE COVER MAIN FRAME

1

HOOD NLA - order 6535340 (1), 6535606 (2), 6585640 (1), and Refs. 32 (1), 33 (1), 34 (2), 35 (2), 37(2) & 38 (2).

1

6535340

HOOD

2

6535334

LATCH locking - L.H.

3

6535362

KEY

4

6535002

LATCH non-locking - R.H.

5

1CM820

BOLT

6

15EM80

WASHER

7

6EM80

WASHER, SPRING

8

1DM8

NUT

9

6533959

HINGE

10

1CM1020

BOLT

11

6EM100

WASHER

12

15EM100

WASHER

13

6653459

STOP rubber

14

6654364

CYLINDER W/Ref. 39 - Was 6655249 - A

15

15EM80

WASHER

16

6535003

COTTER PIN

17

INSULATION NLA - Order 6535640 - Was 6535526 - A

17

6535640

INSULATION Fastens Inside of Engine Cover

18

INSULATION NLA - Order Ref. 32 - Was 6535527 - A

19

INSULATION NLA - Order Ref. 34 - Was 6535525 - A

20

INSULATION NLA - Order Ref. 34 - Was 6535524 - A

21

INSULATION NLA - Order Ref. 32 - Was 6535528 - A

22

INSULATION NLA - Order Ref. 33 - Was 6535529 - A

23

INSULATION NLA - Order Ref. 33 - Was 6535530 - A

24

6533976

BRACKET

24

6535606

BRACKET

25

6537600

TOOL BOX Was 6535508 - A

26

6661595

CANOPY Same as 12000 Series - Was SALES

27

1CM1025

BOLT

28

1CM1235

BOLT

29

6EM120

WASHER

30

1DM12

LOCK NUT

31

6593245

TREAD

32

6535639

INSULATION Fastens Inside of Engine Cover - Replaces Ref. 18 & 21

33

6535642

INSULATION Fastens Inside of Engine Cover - Replaces 22 & 23

34

6535641

INSULATION Fastens Inside of Engine Cover - Replaces Ref. 19 & 20

35

6660132

LATCH W/Ref. 36 - should be serviced in pairs-for appearance purposes

36

6650682

KEY LL-22

36

6650683

KEY LL-24

37

4E4

WASHER

38

61D4

NUT 5

39

6664042

CLEVIS
