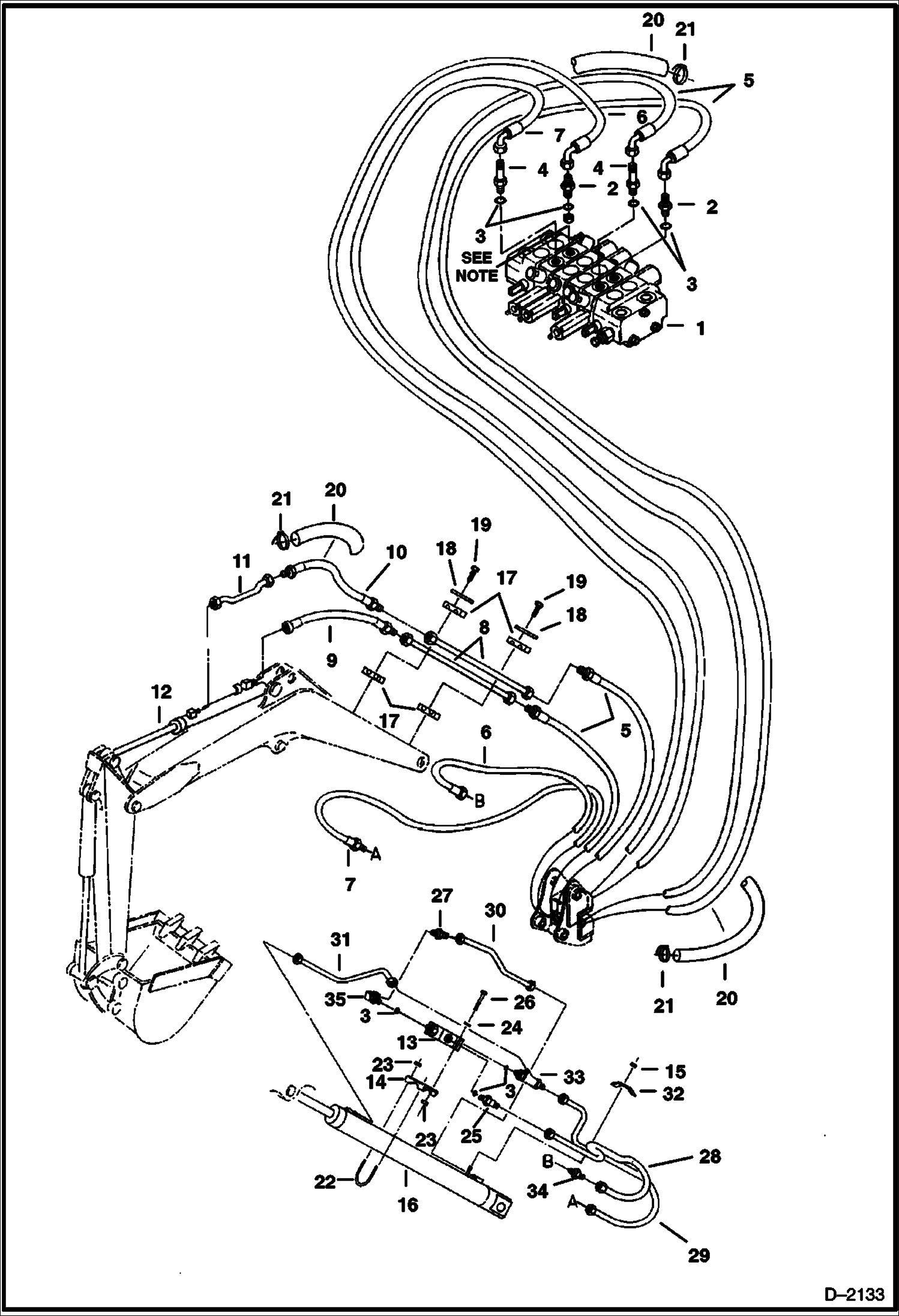

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY Arm & Boom For Excavators Sold in Scandinavian Countries ACCESSORIES & OPTIONS

1

6656151

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B18548 control - remove the valve orifice from the boom circuit 'B' port

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

16K6

FITTING W/Ref. 3

5

6537696

HOSE

6

6537697

HOSE

7

6537698

HOSE

8

6536525

TUBE

9

6536753

HOSE

10

6537411

HOSE

11

6537168

TUBE

12

6537165

CYLINDER See Illustration ARM CYLINDER/ C3216 arm

13

6658875

VALVE See Illustration DROP VALVE/ C3261 assy

14

6538303

BRACKET

15

1DM10

NUT

16

6586726

CYLINDER See Illustration BOOM CYLINDER/ C3213 boom - Was 6537171 - A

17

6654907

CLAMP

18

6652521

PLATE

19

17C520

BOLT 5

20

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

21

6610510

TIE

22

6538304

CLAMP

23

1DM6

NUT

24

25EM13

WASHER

25

17K6

ELBOW W/Ref. 3

26

1CM645

BOLT

27

6660769

CHECK VALVE W/Orifice

28

TUBE NLA - Was 6538308 - A

29

6538309

TUBE

30

6538310

TUBE

31

6538311

TUBE

32

CLAMP NLA - Was 6536685 - A

33

21K6

FITTING W/Ref. 3

34

87F6

FITTING

35

6646497

ELBOW W/Ref. 3
