Запчасти Bobcat 225 DECALS ACCESSORIES & OPTIONS

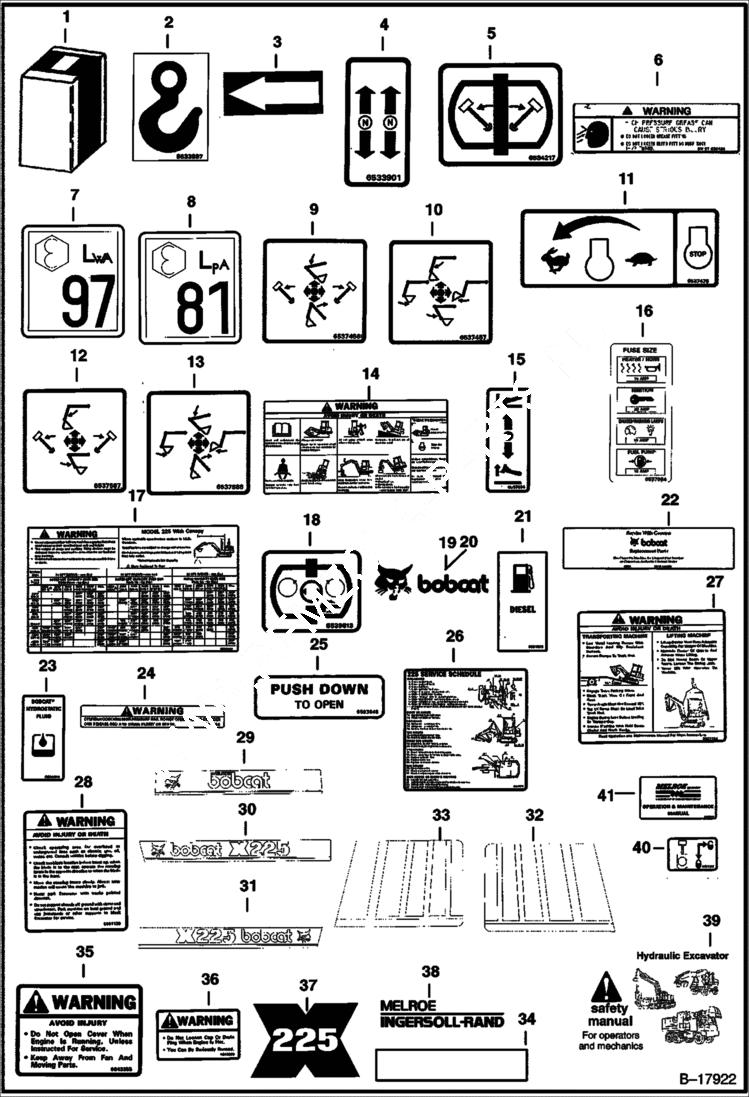

Схема запчастей Bobcat 225 - DECALS ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6587578

KIT, DECAL Includes Refs. 2-36

2

6533897

DECAL Hook

3

6533899

DECAL Arrow

4

6533901

DECAL Drive

5

6534217

DECAL Boom Swing

6

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

7

6535310

DECAL Noise Warning - 97

8

6535311

DECAL Noise Warning - 81

9

6537456

DECAL Control - L.H. Standard Control Pattern

10

6537457

DECAL Control - R.H. Standard Control Pattern

11

6537475

DECAL Engine Speed

12

6537587

DECAL Control - L.H. ISO Control Pattern

13

6537588

DECAL Control - R.H. ISO Control Pattern

14

6537595

DECAL Warning

15

6537634

DECAL Blade

16

6537984

DECAL Fuse

17

6539149

DECAL Lift Capacity

18

6539813

DECAL Valve

19

6560986

DECAL, LOGO BOBCAT AND HEAD opposite of shown

20

6560987

DECAL Logo -Shown

21

6589739

DECAL Diesel - Was 6561379 - A

22

6565200

DECAL, FILTER

23

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

24

6577754

DECAL, WARNING 5 gas spring

25

6583848

DECAL Door Latch

26

6586696

DECAL Service Schedule

27

6587124

DECAL Warning

28

6587139

DECAL Warning

29

6587502

DECAL Bobcat - Engine Cover

30

6587503

DECAL Bobcat, R.H.

31

6587504

DECAL Bobcat, L.H.

32

6587510

DECAL Bumper, L.H.

33

6587511

DECAL Bumper, R.H.

34

6593245

TREAD

35

6643355

DECAL Warning

36

6804233

DECAL Warning - Was 6643356 - A

37

6532817

DECAL Model No.

38

DECAL NLA - Logo - Was 6714353 - A

39

6570354

MANUAL Safety

40

6587247

DECAL Swing Lock

41

6587762

DECAL Compartment

Выбрано товаров: 41
