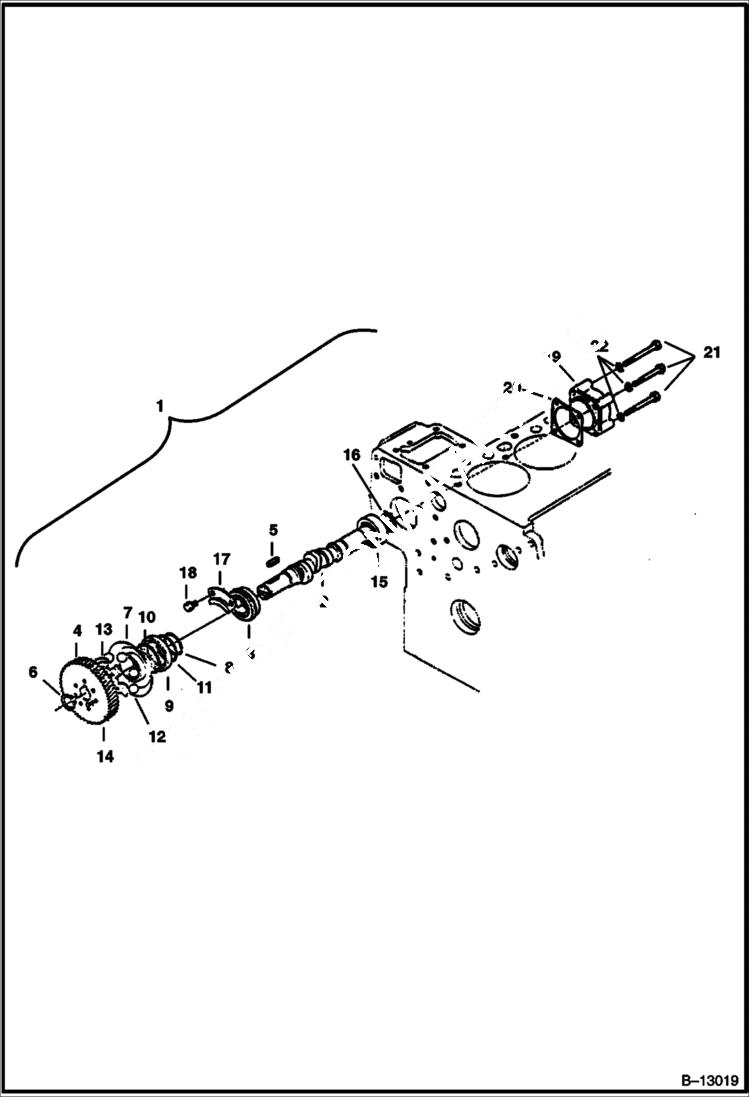

Запчасти Bobcat 225 FUEL CAMSHAFT POWER UNIT

1

3974957

CAMSHAFT Assy. - Ref. 2-14

2

6653899

CAMSHAFT

3

851242

BEARING

4

6653900

GEAR

5

6598099

KEY Was 3974616B - A

6

5JM24

CIRCLIP

7

3974617

SLEEVE

8

3974618

CIR-CLIP

9

6655214

CASE Was 3974619B - A

10

6969817

BALL Was 10J5 - A

11

3974620

CIR-CLIP

12

10J20

BALL

13

3974960

GUIDE

14

12JM310

RIVET

15

851242

BEARING

16

5JM25

CIR-CLIP

17

3974624

STOPPER

18

1CM814

BOLT Was 4CM814 - A

19

3974996

COVER Was 6653901 - A

20

6666827

GASKET See Illustration LOWER GASKET KIT/ C3220 included W/lower gasket kit - Was 3974630B - A

21

1CM870

BOLT

22

6EM80

WASHER, SPRING
