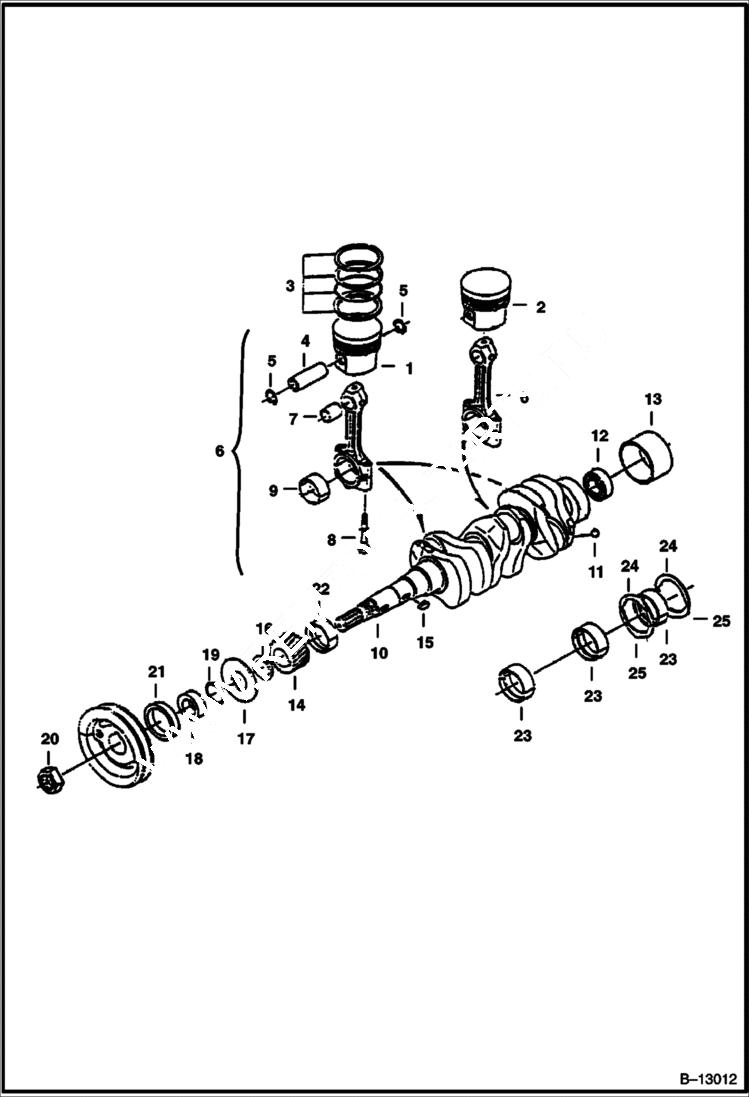

Запчасти Bobcat 225 PISTONS & CRANKSHAFT POWER UNIT

1

6630185

PISTON Front & Rear

1

6631945

PISTON Front & Rear (.0197 - 0,5 mm)

2

6653844

PISTON Center

2

6634611

PISTON Center (.0197 - 0,5 mm)

3

6630463

RING ASSY.

3

6631946

RING ASSY. .0197 (0,5 mm)

4

3974937

PIN PISTN

5

3974561

SNAP RG 5

6

6653850

ROD ASSY. W/Ref. 7-9

7

3974939

BUSHING

8

BOLT NLA - Order 2 of 7020998 bolt and be advised of different torque specs

9

6598699

BEARING rod (Std.) - 1 bearing

9

6599918

BEARING rod (.0079 - 0,2 mm) - 1 bearing

9

6599919

BEARING rod (.0157 - 0,4 mm) - 1 bearing

10

6598745

CRANKSHAFT W/Ref. 11-13 - Was 6653856 - A

11

6653858

BALL

12

3974571

BEARING

13

6653859

SLEEVE

14

6653860

GEAR

15

3974546

KEY

16

3974944

COLLAR

17

6653861

SLINGER, OIL

18

3975337

COLLAR

19

3974577

O RING See Illustration LOWER GASKET KIT/ C3220 included W/lower gasket kit

20

3974671

NUT

21

7024826

SEAL, OIL oil frt main - Was 6631664 - A

22

6655185

BEARING Main (Std) - 1 bearing - Was 6653862 - A

22

3975017

MAIN BRG Main (.0079 - 0,2 mm)-1 bearing - Was 6654711 - A

22

6654712

BEARING Main (.0157 - 0,4 mm)-1 bearing

23

6655186

BEARING Main (Std.) - 1 bearing - Was 6653863 - A

23

6655240

BEARING Main (.0079 - 0,2 mm)-1 bearing Was 6654713 - A

23

6655241

BEARING Main (.0157 - 0,4 mm)-1 bearing Was 6654714 - A

24

3974945

WASHER, THRUST Side (Std.) 1/2 thrust washer - Was 6653864 - A

24

6654715

WASHER, THRUST Side (.0079 - 0,2 mm) 1/2 thrust Washer

24

3975022

WASHER, THRUST Wide (.0157 - 0,4 mm) 1/2 thrust Washer - Was 6657434 - A

25

6653865

WASHER, THRUST Side (Std.) 1/2 thrust washer

25

6654002

WASHER, THRUST +0,20 mm

25

6654003

WASHER, THRUST +0,40 mm
