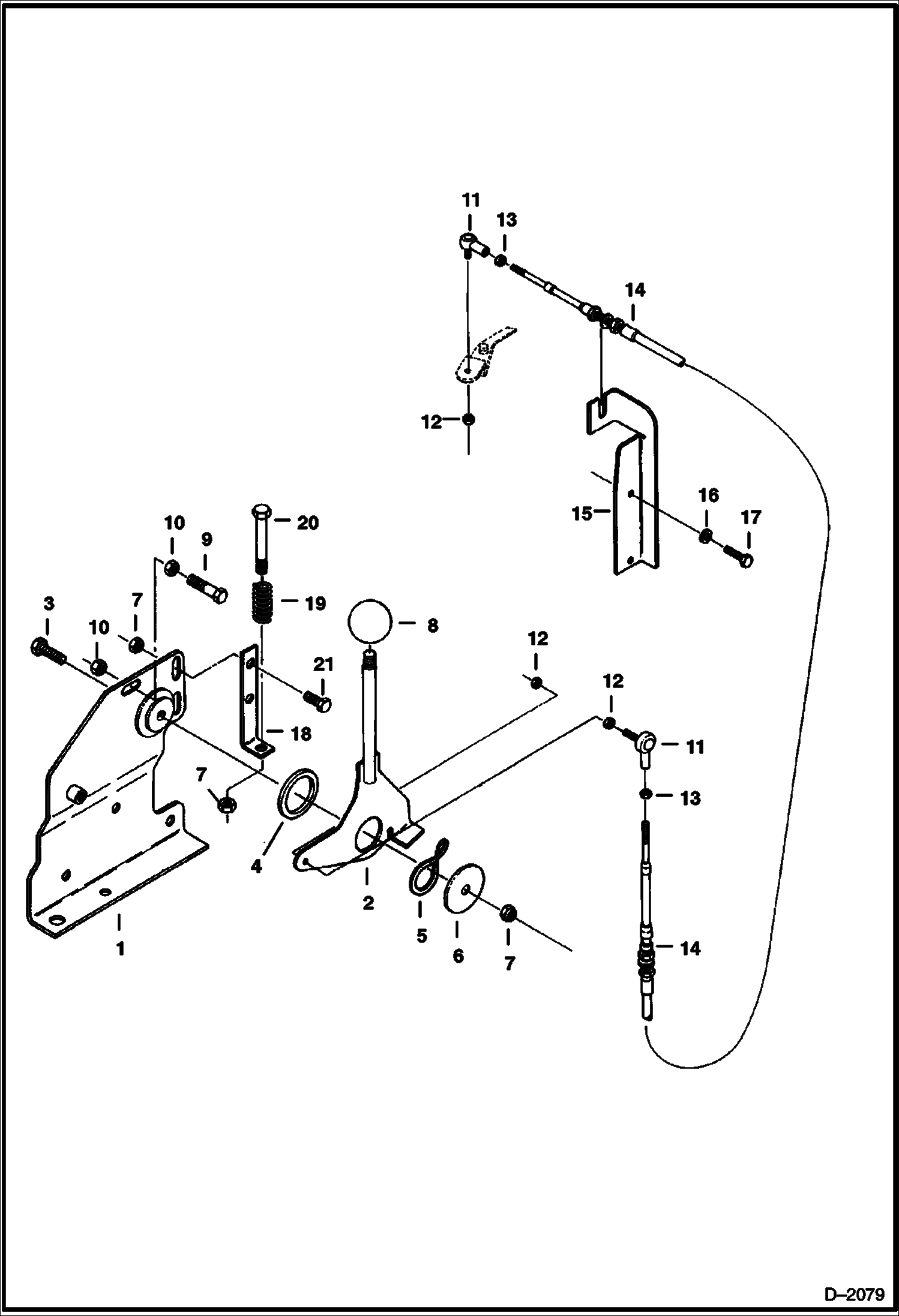

Запчасти Bobcat 225 FUEL CONTROL LEVER POWER UNIT

1

6537432

BRACKET See Illustration BLADE, BOOM SWING AND AUXILIARY CONTROLS/ D2070 throttle and blade

2

6537423

LEVER

3

1CM1040

BOLT

4

6567962

WASHER Friction

5

6630945

WASHER Wave

6

616789

WASHER

6

6653830

SEAL, STEM VALVE See Illustration UPPER GASKET KIT/ C3221 Included W/upper gasket kit

7

39DM10

NUT

8

6631564

KNOB

9

1CM1035

BOLT

10

1DM10

NUT

11

6644965

BALL JOINT

12

62D4

NUT

13

14D10

NUT

14

6657699

CABLE

15

6537534

BRACKET

16

6EM80

WASHER, SPRING

17

1CM865

SCREW

18

6537647

ANGLE

19

6537648

SPRING

20

1CM1060

BOLT

21

1CM1020

BOLT
