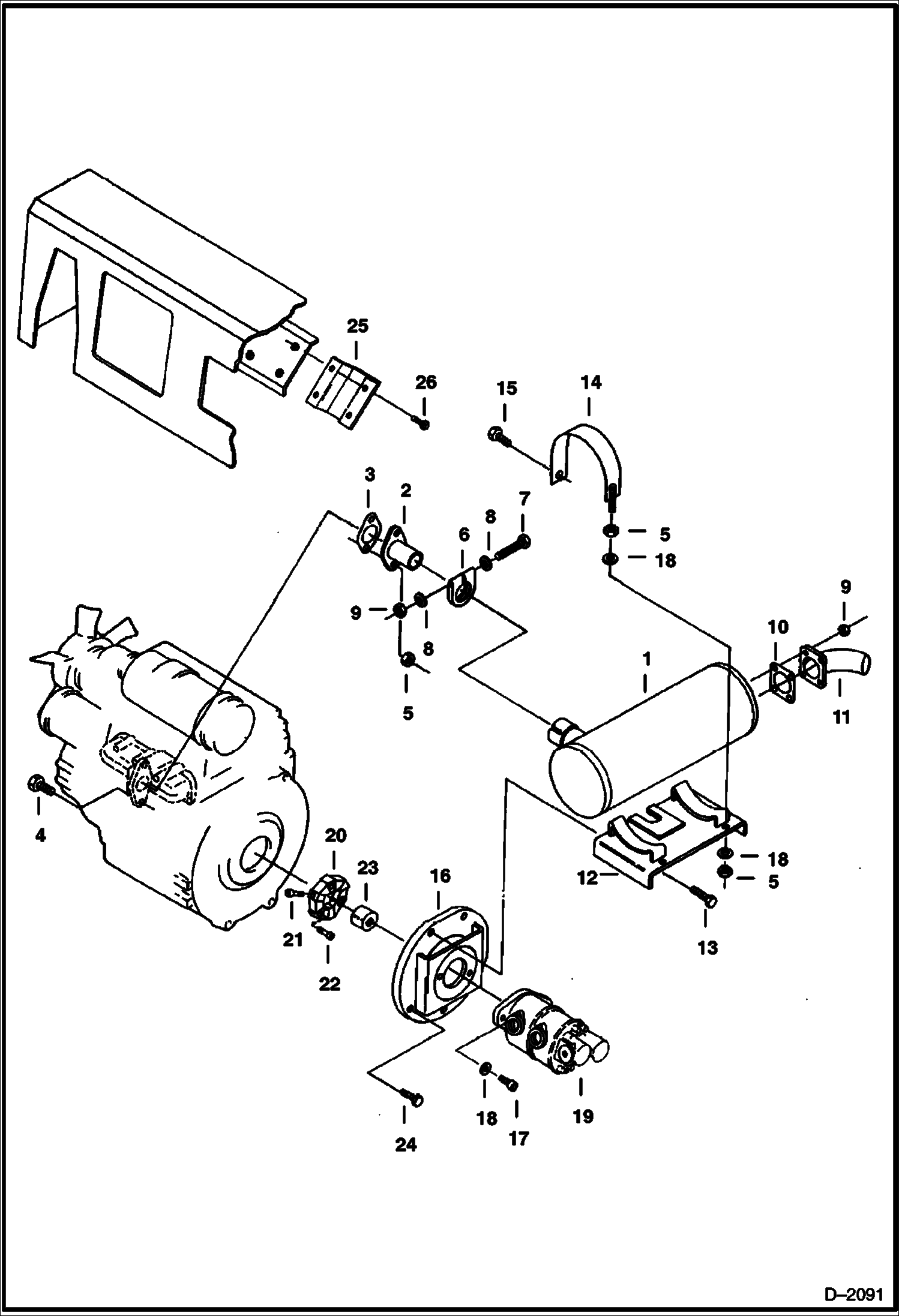

Запчасти Bobcat 225 MUFFLER & POWER TAKE OFF POWER UNIT

1

6653955

MUFFLER Non Spark Arrestor

1

6664005

PURIFIER

2

6655405

PIPE Flange

3

3974507

GASKET See Illustration UPPER GASKET KIT/ C3221 Included W/upper gasket kit

4

1CM1030

BOLT

5

1DM10

NUT

6

6651933

CLAMP

7

6651934

BOLT

8

15EM80

WASHER

9

1DM8

NUT

10

6727753

GASKET See Illustration LOWER GASKET KIT/ C3220 Included Wlower gasket kit - Was 6653956 - A

11

PIPE NLA - Exhaust - Was 6535660 - A

12

6535658

BRACKET Muffler

13

5CM1030

BOLT

14

6537535

CLAMP

15

1CM1020

BOLT

16

6535661

MOUNT Pump

17

3GM1025

BOLT Was 1CM01025B

18

15EM100

WASHER

19

PUMP See Illustration TRIPLE GEAR PUMP/ B18547

20

6660771

COUPLING Pump - W/Ref. 21 & 22 - Was 6657285 - A

21

6537441

BOLT

22

6537500

BOLT

23

6537440

COUPLING

24

5CM1020

SCREW

25

6533646

MOUNT Air Cleaner

26

1CM816

BOLT
