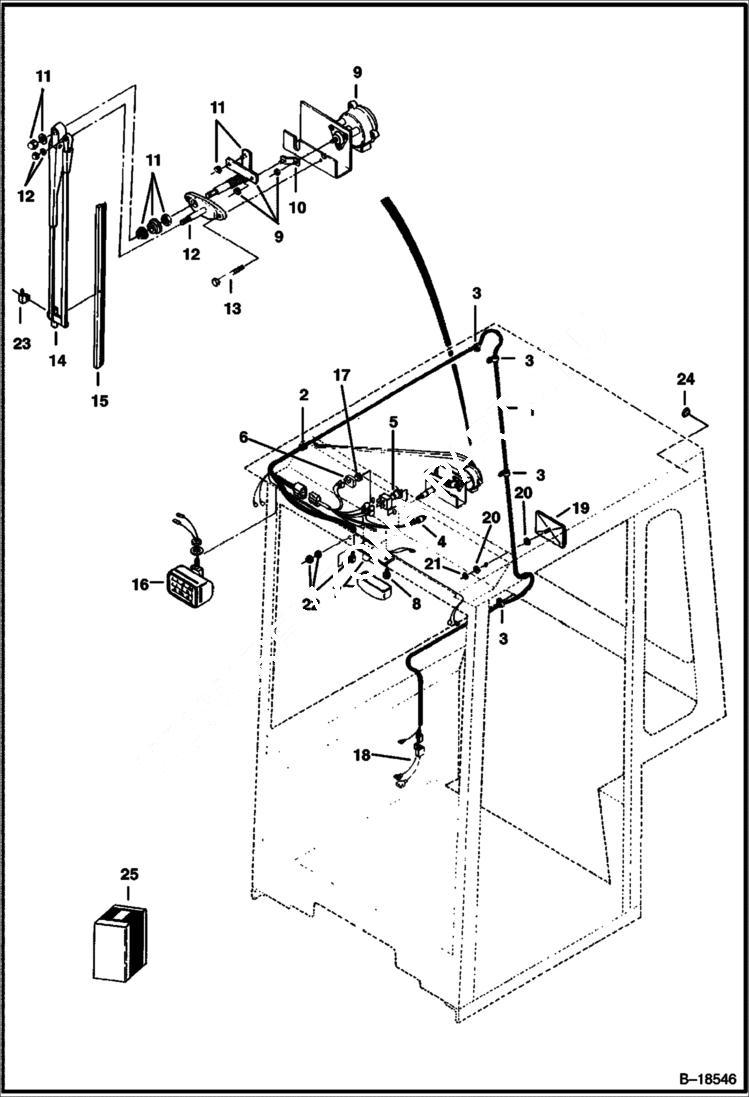

Запчасти Bobcat 225 ELECTRICAL SYSTEM Cab ELECTRICAL SYSTEM

1

6657283

HARNESS ASSY. Cab

2

6515109

GRIP

3

6654150

CLIP Wiring

4

6513469

HOLDER Was 6654166 - A

4

6586498

FUSE 15 amp. - Was 6535441

5

6654158

SWITCH wiper

5

6658877

SWITCH Wiper & Washer - Nordic Option Only

6

SWITCH NLA - dome light - Was 6648446 - A

7

6654169

DOME LIGHT

7

6655055

BULB #1141

8

6532168

BOLT

9

6654163

WIPER MOTOR

9

6660970

WIPER MOTOR W/Ref. 11 - Nordic Option Only

10

6654155

ARM

11

PIVOT SHAFT NLA - Assy. - .625 - Order Ref. 25 - Was 6654159 - A

11

6669059

PIVOT SHAFT 0.69

11

PIVOT SHAFT NSS - Assy. - Included W/Ref. 9 - Nordic Option Only

12

6654156

LINKAGE For .625 Shaft

12

6669145

LINKAGE .690 Shaft

12

6660974

LINKAGE Nordic Option Only

13

2C408

SCREW

14

6658698

ARM Wiper - Was 6654151 - A

14

6658879

ARM Wiper - W/Washer Nozzle & Hose Nordic Option Only

15

6654157

BLADE Wiper

15

6660973

BLADE Wiper - Nordic Option Only

16

6644980

LIGHT

17

KNOB NLA - Was 6648424 - A

18

6537687

HARNESS Adapter

19

6658285

MIRROR W/Ref. 21

20

6658286

WASHER

21

62D4

NUT

22

6658880

ELBOW Window Washer - Nordic option only

23

6660982

NOZZLE Washer - included W/Ref. 14 - Nordic Option Only

24

6654779

PLUG

25

KIT NLA - .690 - Ref. 11 & 12 - Was 6669058 - A
