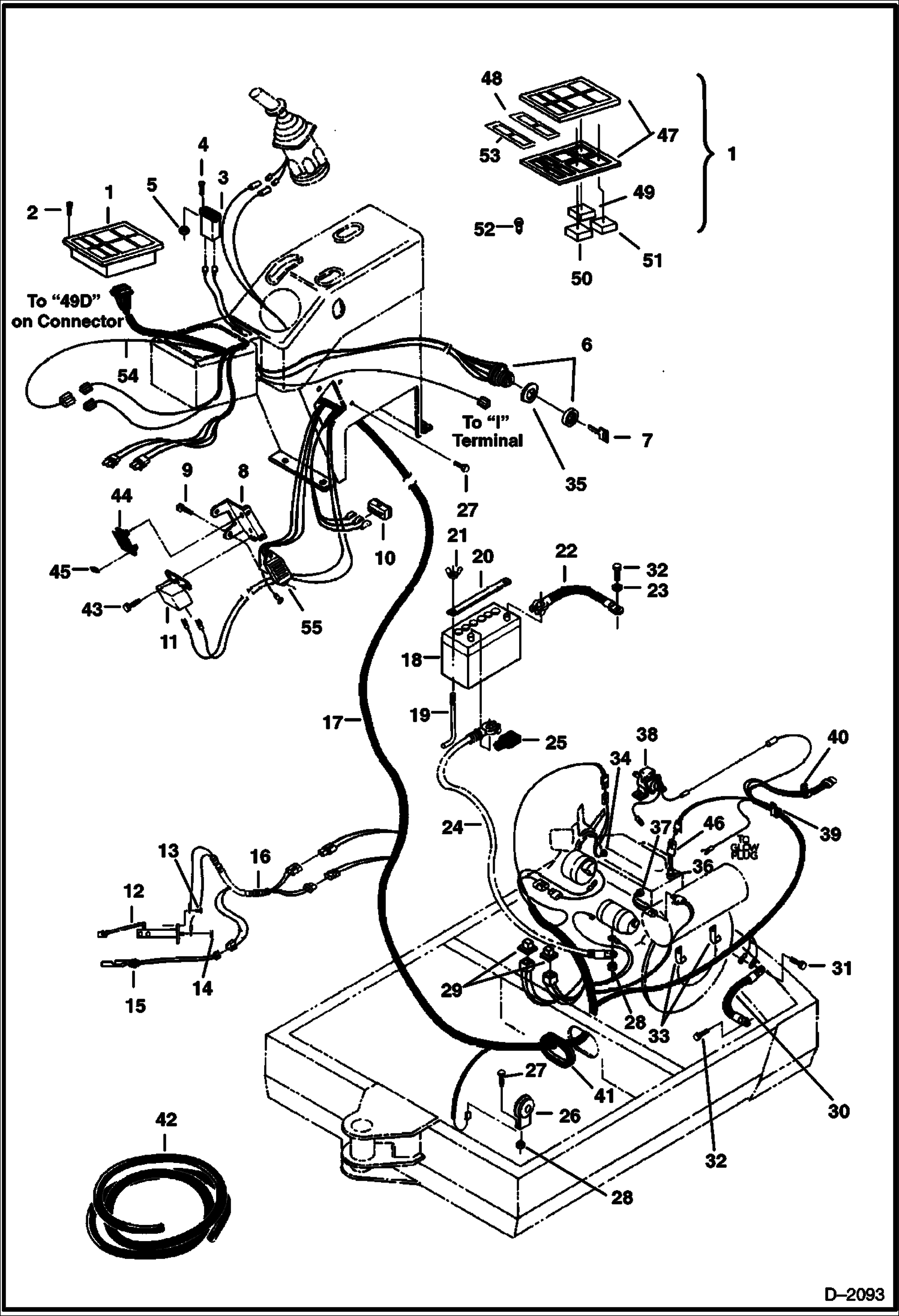

Запчасти Bobcat 225 ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

6664268

PANEL Dash - W/Ref. 47-53 - Was 6657056 - A

2

23GM520

BOLT

3

6631657

HOURMETER

4

87G610

SCREW

5

12D6

NUT 10

6

SWITCH See BTIE-041 NLA - Ignition - key code GC 020 - Was 6519592 - A

6

SWITCH See BTIE-041 NLA - Ignition - key cut code PK 510 - Was 6661613 - A

6

6666548

SWITCH See BTIE-041 Ignition - key cut code PK-510

7

6512809

KEY Ignition - key code GC 020

7

6587458

KEY Ignition - key cut code PK 510

8

6537536

BRACKET

9

1CM516

BOLT

10

6673122

TIMER Timed-Start-up check, fuel level, oil press. & water temp. lights- Was 6668736 - A

11

6644960

BUZZER Warning - Activates W/Water Temp. & Oil Press. Lights

12

6658223

SENDER Fuel Level

12

6630972

GASKET

13

1CM512

BOLT

14

14D10

NUT

15

6534833

SWITCH Low Fuel

16

6537435

HARNESS Fuel

17

6587876

HARNESS Main - Was 6537436 - A

17

3675725

DIODE

18

6662222

BATTERY Was 6633910 - B

19

6535651

BOLT Battery

20

6535650

CLAMP

21

35DM80

NUT Wing

22

6558372

CABLE Negative

23

6EM100

WASHER Was 5CM01220B - D

24

6564991

CABLE Positive - W/Ref. 25

25

2356058

BOOT

26

6665105

ALARM Was 6662635 - A

27

1CM816

BOLT

28

1DM8

NUT

29

6651975

SWITCH Magnetic - Was 6649267 - A

30

6565170

CABLE neg

31

5CM1020

SCREW

32

1CM1020

BOLT

33

31H42

CLIP

34

6657082

SWITCH Water Temperature

35

6537439

PLATE Ignition Switch -Use W/NLA switches 6519592 & 6661613

35

6596217

PLATE Ignition Switch - Use W/switch 6666548

36

6657287

SENDOR Engine Temp. - Was 6537502 - A

37

6657389

SWITCH Oil Pressure - Was 6537501 - A

38

3975370

PUMP FUEL

39

30H45

CLIP Harness

40

30H42

CLAMP Harness

41

MOULDING NLA - 470 mm long - Order Ref. 42

42

6512686

MOULDING Bulk - Sold Per Foot

43

1CM610

BOLT

44

HOLDER NLA - Spare Fuse - Was 6649124 - A

45

6654803

FUSE 5A

45

6654805

FUSE 10A Was 6961388 - A

45

6654806

FUSE, 15A

45

6625575

FUSE, 20A

45

6625597

FUSE 30 amp.

46

6538534

WIRE Resistance

47

6664022

COVER Lens - W/Gasket - Was 6661204 - D

48

LENS NLA - warning lights - fuel & brake - Was 6661205 - A

49

6661202

FUEL GAUGE

50

6661201

VOLTMETER

51

6661203

TEMP. GAUGE Coolant

52

6665127

BULB Warning Temps and Back Light (#194)

53

6661204

LENS Warning Lights - Oil Pressure & Glow Plugs

54

6586429

WIRE Gauge Lights - ROPS - See Service letter dated March 17, 92

55

6645835

BLOCK Incl. W/Ref. 17
