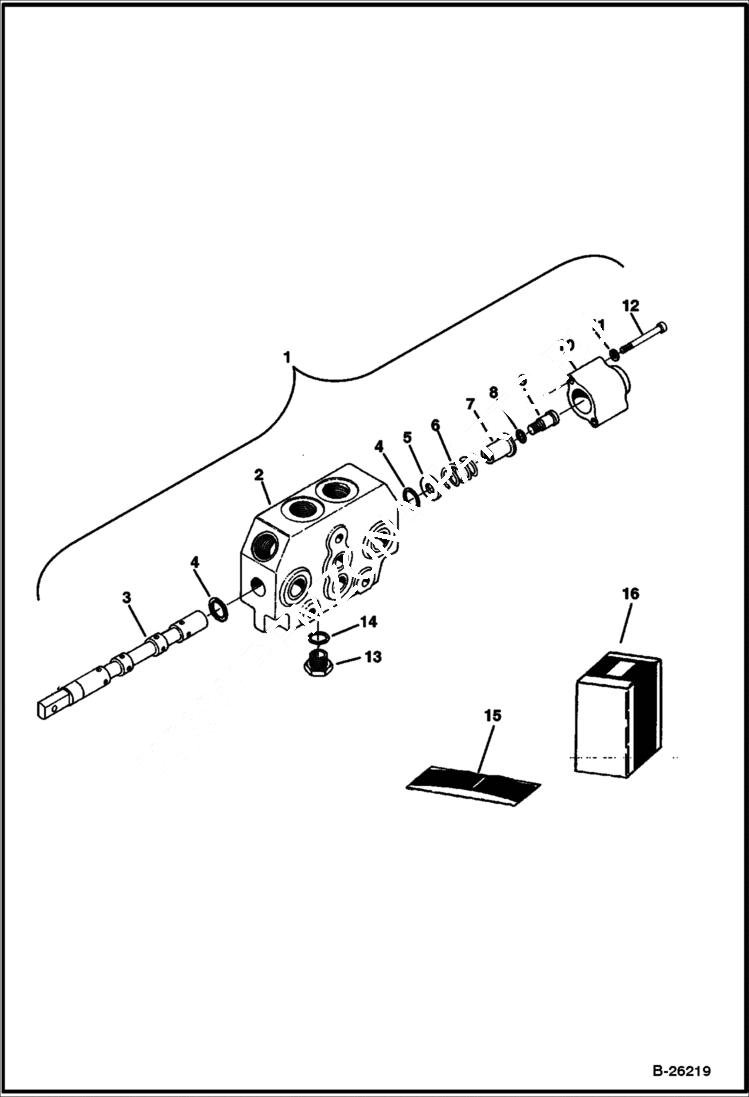

Запчасти Bobcat 225 VALVE SECTION Auxiliary HYDRAULIC SYSTEM

1

6658310

VALVE Section - W/Refs. 2-14

2

HOUSING NLA

3

SPOOL NLA

4

O-RING NSS - Included W/Ref. 15

5

WASHER NSS - Included W/Ref. 16

6

SPRING NSS - Included W/Ref. 16

7

SPACER NSS - Included W/Ref. 16

8

O-RING NSS - Included W/Ref. 15 & 16

9

BOLT NSS - Included W/Ref. 16

10

END CAP NSS - Included W/Ref. 16

11

17E10

WASHER Included W/Ref. 16

12

6658339

BOLT Included W/Ref. 16

13

6656429

PLUG W/Ref. 14

14

O-RING NSS - Included W/Ref. 15

15

6658337

SEAL KIT W/Ref. 4, 8 & 14

16

6658329

SPRING KIT W/Refs. 5-12
