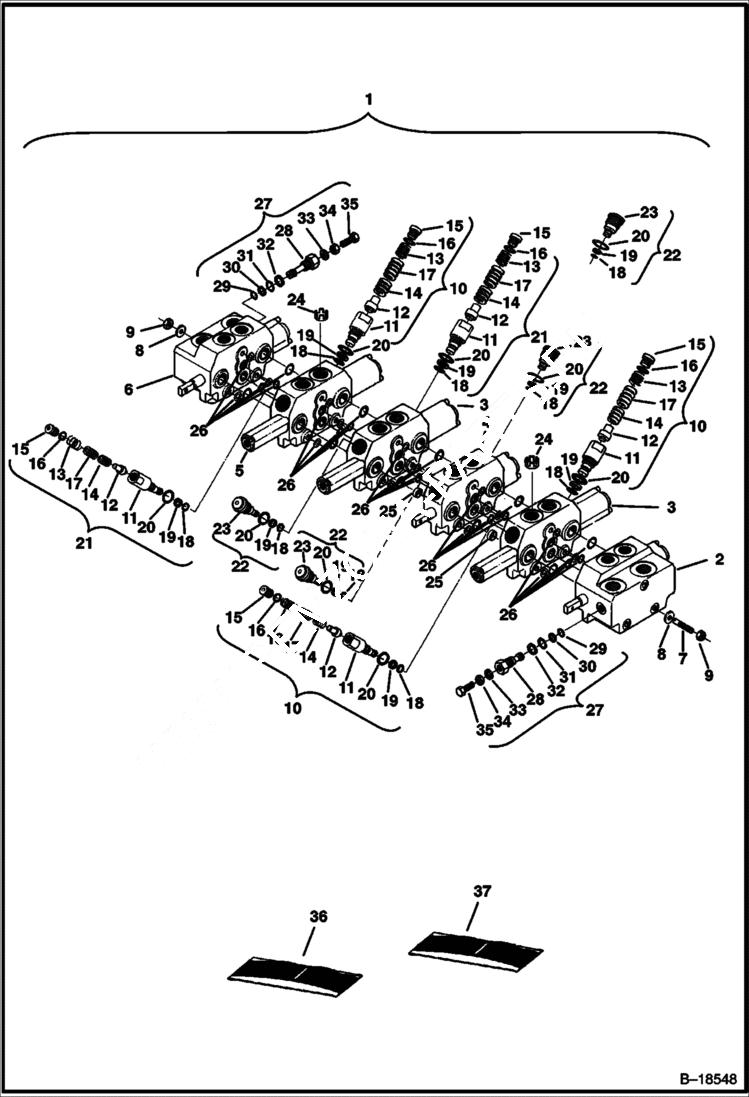

Запчасти Bobcat 225 CONTROL VALVE ASSEMBLY 6-Spool HYDRAULIC SYSTEM

1

6656151

VALVE Assy. - W/Ref. 2-35

2

6658312

VALVE See Illustration INLET VALVE SECTION/ C3230 - LH Travel

3

6658311

VALVE See Illustration VALVE SECTION/ D2100 - arm or bucket

4

6658310

VALVE See Illustration VALVE SECTION/ B26219 - auxiliary

5

6658309

VALVE See Illustration VALVE SECTION/ D2100 - boom

6

6658313

VALVE See Illustration VALVE SECTION/ D2100 - RH Travel

7

6658307

TIE ROD includes 3 Tie Rods

8

6658320

WASHER

9

6658322

NUT

10

6658316

RELIEF VALVE W/Refs. 11-20 - Set at 2900/3000 PSI

11

HOUSING NSS

12

POPPET NSS

13

SPRING NSS

14

SHIM NSS - .021 inch

15

6656446

PLUG W/Ref. 16

16

6656432

O-RING Included W/Ref. 36

17

SHIM NSS - .0035 inch - Included W/Ref. 36

18

6658344

O-RING Included W/Ref. 36 - Was NSS

19

6658343

BACK-UP RING Includes W/Ref. 36 - Was NSS

20

6656437

O-RING Included W/Ref. 36 - Was NSS

21

6658315

RELIEF VALVE W/Refs. 11-20 - Set at 3350/3450 PSI (2)after S/N 12024 & Abv.

22

6658314

RELIEF PLUG W/Refs. 18-20 & 23 - (3) after S/N 12024 & Above

23

HOUSING NSS

24

6658308

PLATE Orifice (.125'' Dia.)

25

6658317

PLUG

26

6658319

SEAL KIT

27

6658416

RELIEF VALVE W/Ref. 28-35 - Set at 2300-2400 PSI

28

HOUSING NSS

29

O-RING NSS - Included W/Ref. 37

30

BACK-UP RING NSS - Included W/Ref. 37

31

O-RING NSS - Included W/Ref. 37

32

BACK-UP RING NSS - Included W/Ref. 37

33

RING NSS - Included W/Ref. 37

34

NUT NSS

35

BOLT NSS

36

6720980

SEAL KIT W/Ref. 18, 19 & 20 - Was 6656283 - A

37

6656281

SEAL KIT W/Refs. 29-33
