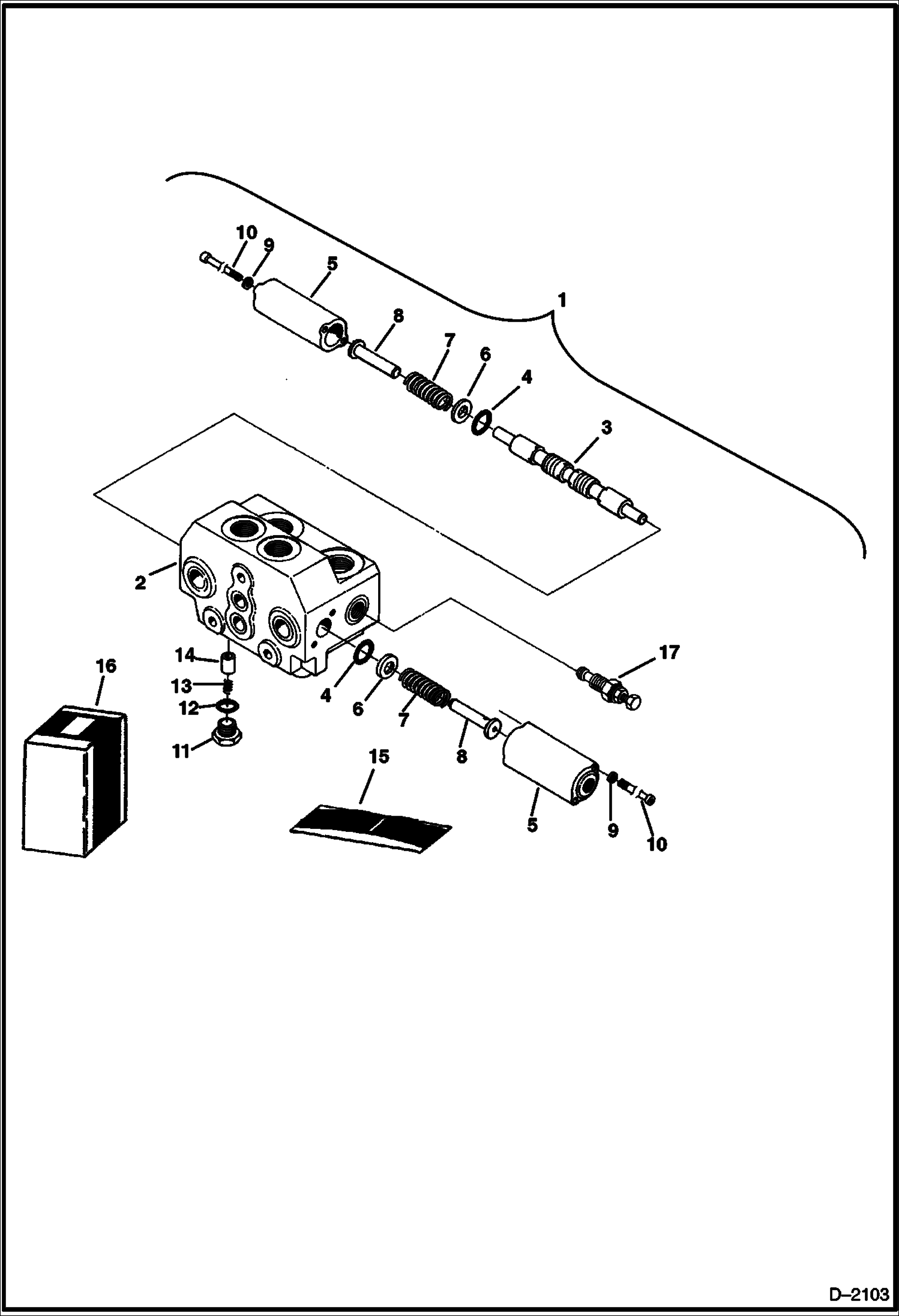

Запчасти Bobcat 225 INLET VALVE SECTION Swing Motor HYDRAULIC SYSTEM

1

6658325

VALVE Inlet Section - W/Refs. 2-14

2

HOUSING NLA

3

SPOOL NLA

4

O-RING NSS - Included W/Ref. 15

5

6662208

END CAP Was 6658331 - A

6

6658335

WASHER

7

SPRING NLA - Was 6658333 - A

8

STOP NLA - spool - Was 6658332 - A

9

17E10

WASHER

10

6658334

BOLT

11

6656429

PLUG W/Ref. 12 - Included W/Ref. 16

12

O-RING NSS - Included W/Ref. 15 & 16

13

SPRING NSS - Included W/Ref. 16

14

POPPET NSS - Included W/Ref. 16

15

6658330

SEAL KIT W/Refs. 4 & 12

16

6656433

KIT W/Refs. 11-14

17

6658416

RELIEF VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 - not included W/Ref. 1
