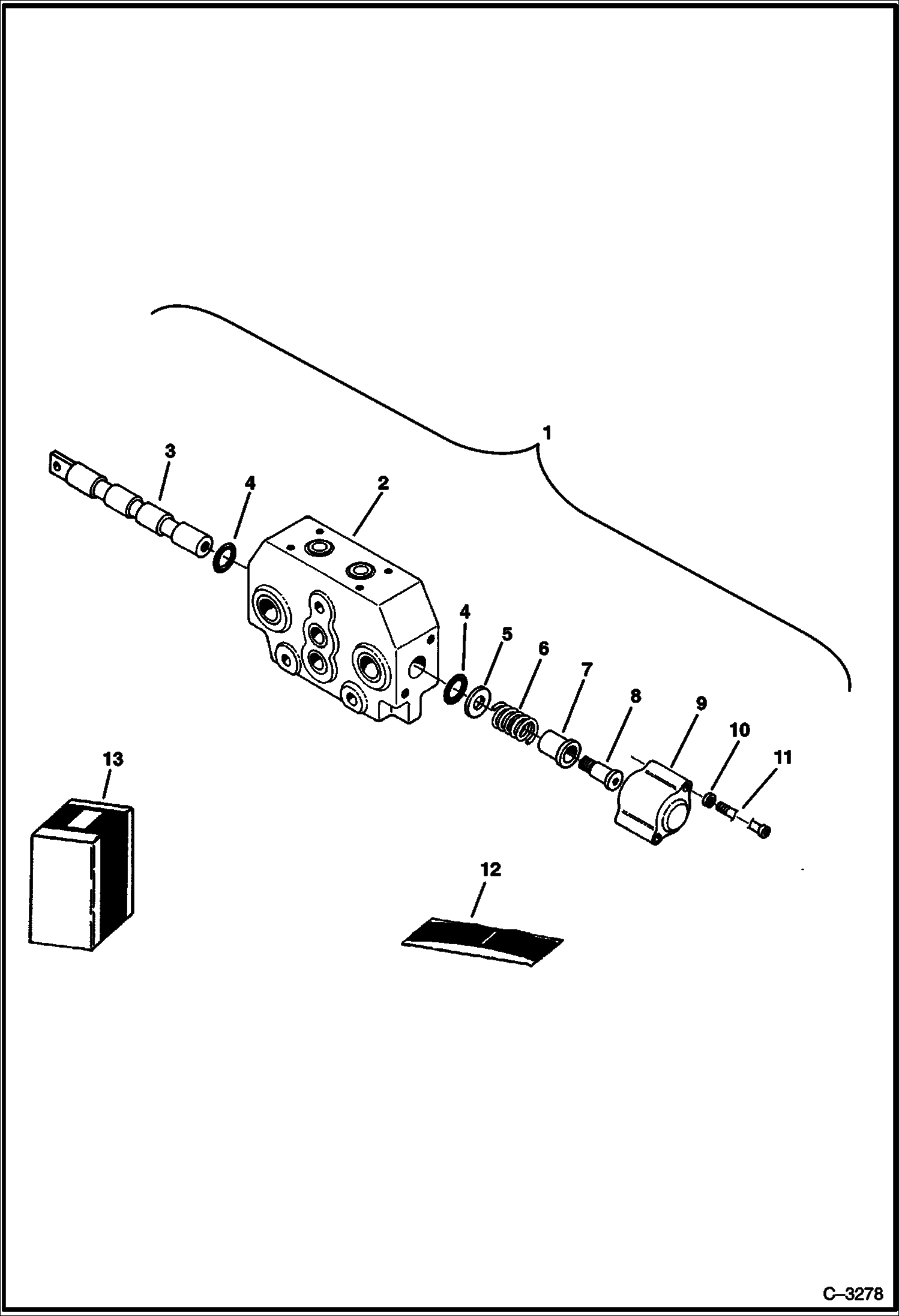

Запчасти Bobcat 225 VALVE SECTION Blade 12024 & Above HYDRAULIC SYSTEM

1

6658680

VALVE W/Ref. 2-11

2

HOUSING NLA

3

SPOOL NLA

4

O-RING NSS - Included W/Ref. 12

5

WASHER NSS - Included W/Ref. 13

6

SPRING NSS - Included W/Ref. 13

7

SPACER NSS - Included W/Ref. 13

8

BOLT NSS - Included W/Ref. 13

9

END CAP NSS - Included W/Ref. 13

10

17E10

WASHER Included W/Ref. 13

11

6658339

BOLT Included W/Ref. 13

12

6658337

SEAL KIT W/Ref. 4

13

6658338

SPRING KIT W/Ref. 5-11
