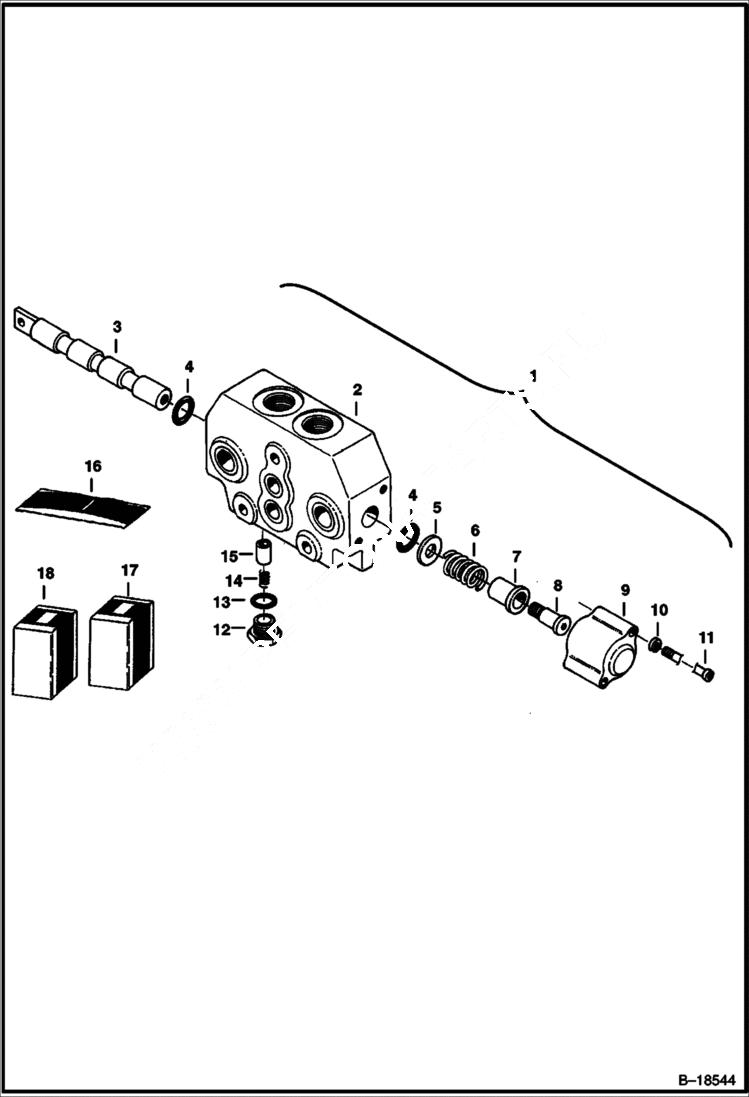

Запчасти Bobcat 225 VALVE SECTION Blade HYDRAULIC SYSTEM

1

VALVE NLA - W/Refs. 2-15 - Order 6658680 (1), 6658327 (1), 6658321 (4), 6658328 (2) & 11K000005B (2) - Was 6658323 - A

2

HOUSING NLA

3

SPOOL NLA

4

O-RING NSS - Included W/Ref. 16

5

WASHER NSS - Included W/Ref. 17

6

SPRING NSS - Included W/Ref. 17

7

SPACER NSS - Included W/Ref. 17

8

BOLT NSS - Included W/Ref. 17

9

END CAP NSS - Included W/Ref. 17

10

17E10

WASHER Included W/Ref. 17

11

6658339

BOLT Included W/Ref. 17

12

6656429

PLUG W/Ref. 13 - included W/Ref. 18

13

O-RING NSS - Included W/Ref. 16 & 18

14

SPRING NSS - Included W/Ref. 18

15

POPPET NSS - Included W/Ref. 18

16

6658337

SEAL KIT W/Refs. 4 & 13

17

6658338

SPRING KIT W/Refs. 5-11

18

6656433

KIT W/Refs. 12-15
