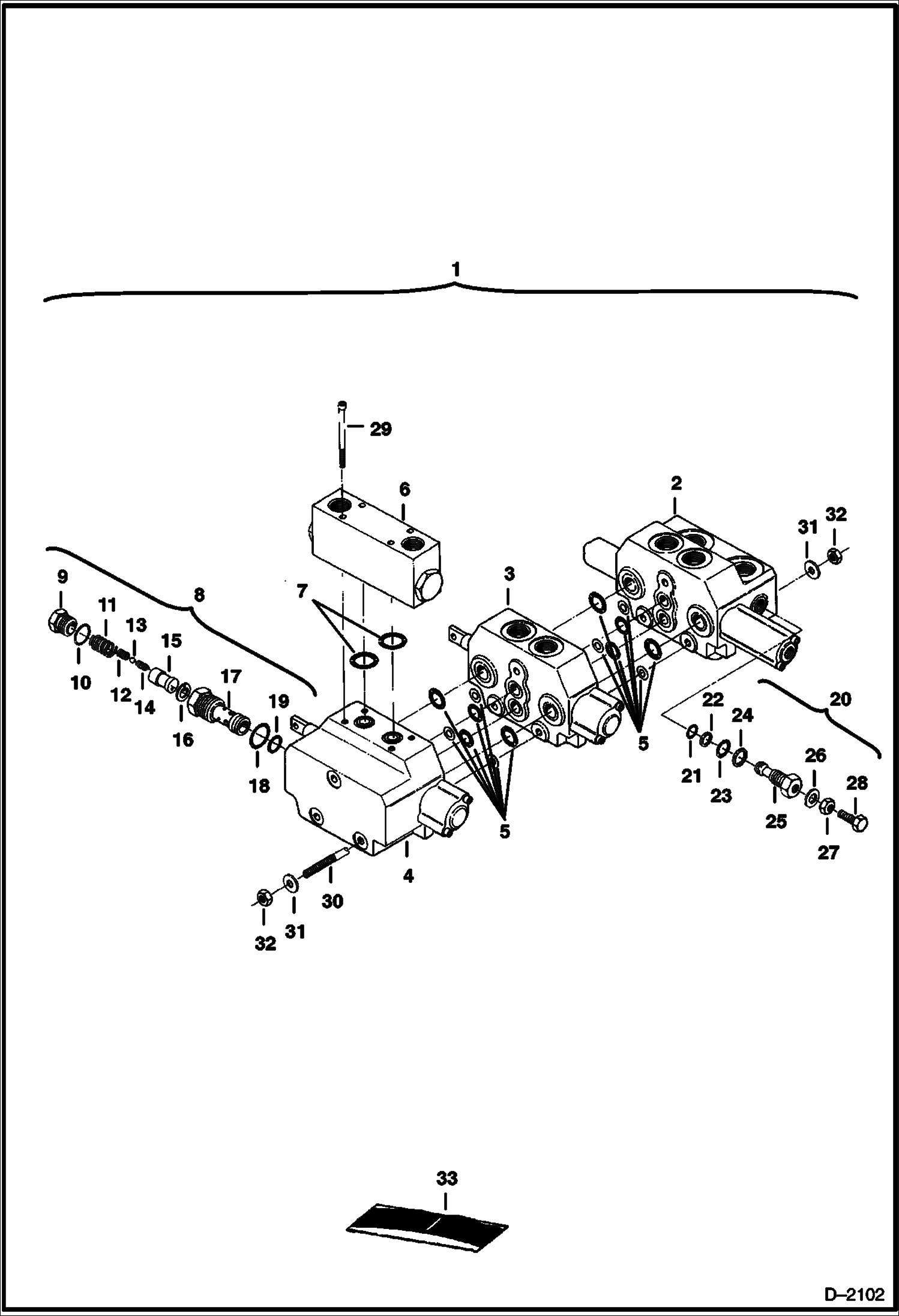

Запчасти Bobcat 225 CONTROL VALVE ASSEMBLY 3-Spool 12001-12023 HYDRAULIC SYSTEM

1

VALVE NLA - Assy. - W/Refs. 2-32 - Order 6658411 - Was 6656150 - A

2

6658325

VALVE See Illustration INLET VALVE SECTION/ D2103 swing motor

3

VALVE See Illustration VALVE SECTION/ B18544 NLA - Blade - Order 6658680, Ref. 6 (1), 7 (2), 29 (4) & 11K000005B (2) - Was 6658323 - A

4

6658324

VALVE See Illustration OUTLET VALVE SECTION/ C3232 boom swing

5

6658319

SEAL KIT Valve Section

6

6658327

CHECK VALVE See Illustration CHECK VALVE/ D3234 assy

7

6658328

O-RING

8

VALVE NLA - pressure - W/Ref. 9-19 - set at 200 PSI - non-adjustable - Was 6658326 - A

9

PLUG NSS

10

6656432

O-RING

11

SPRING NSS

12

PLUG NSS

13

BALL NSS

14

SPRING NSS

15

PISTON NSS

16

SNAP RING NSS

17

HOUSING NSS

18

6656435

O-RING

19

6658340

O-RING

20

6658416

RELIEF VALVE W/Ref. 21-28 - Set at 2300-2400 PSI

21

O-RING NSS - Included W/Ref. 33

22

BACKUP RING NSS - Included W/Ref. 33

23

O-RING NSS - Included W/Ref. 33

24

BACKUP RING NSS - Included W/Ref. 33

25

HOUSING NSS

26

WASHER NSS

27

NUT NSS

28

BOLT NSS

29

6658321

BOLT

30

6658318

TIE ROD Includes 3 tie rods

31

6658320

WASHER

32

6658322

NUT

33

6656281

SEAL KIT Relief Valve - W/Ref. 21-24
