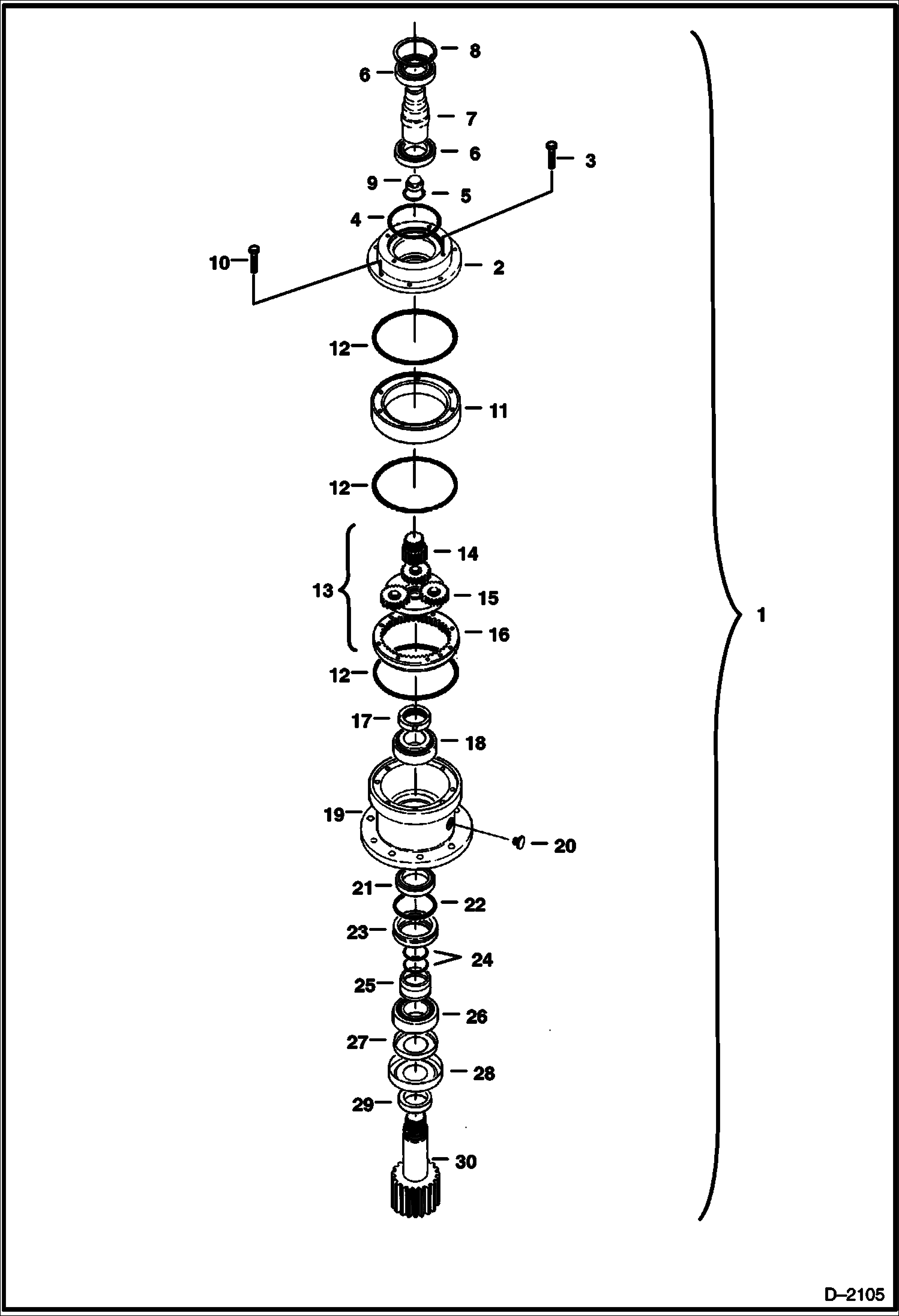

Запчасти Bobcat 225 SWING TRANSMISSION W/O Brake HYDRAULIC SYSTEM

1

6657202

TRANSMISSION Swing - W/Refs. 2-30

2

6658402

FLANGE

3

6658403

BOLT

4

6658404

O-RING

5

6658405

SNAP RING

6

6658406

BEARING

7

6658407

COUPLING

8

6658408

SNAP RING

9

6658409

SPACER

10

6658410

BOLT

11

6658400

SPACER

12

6658401

O-RING

13

6658399

GEAR ASSY. W/Refs. 14-16

14

GEAR NSS - Drive

15

GEAR NSS - Planetary Assy.

16

GEAR NSS - Ring

17

6658395

NUT

18

6658394

BEARING

19

6658392

HOUSING

20

6658393

PLUG

21

6658391

SEAL

22

6658390

O-RING

23

6658389

RING

24

6658388

O-RING

25

6658387

SPACER

26

6658386

BEARING

27

6658385

RING

28

6658384

COVER

29

6658396

SPACER

30

6658397

SHAFT 16 Tooth Gear
