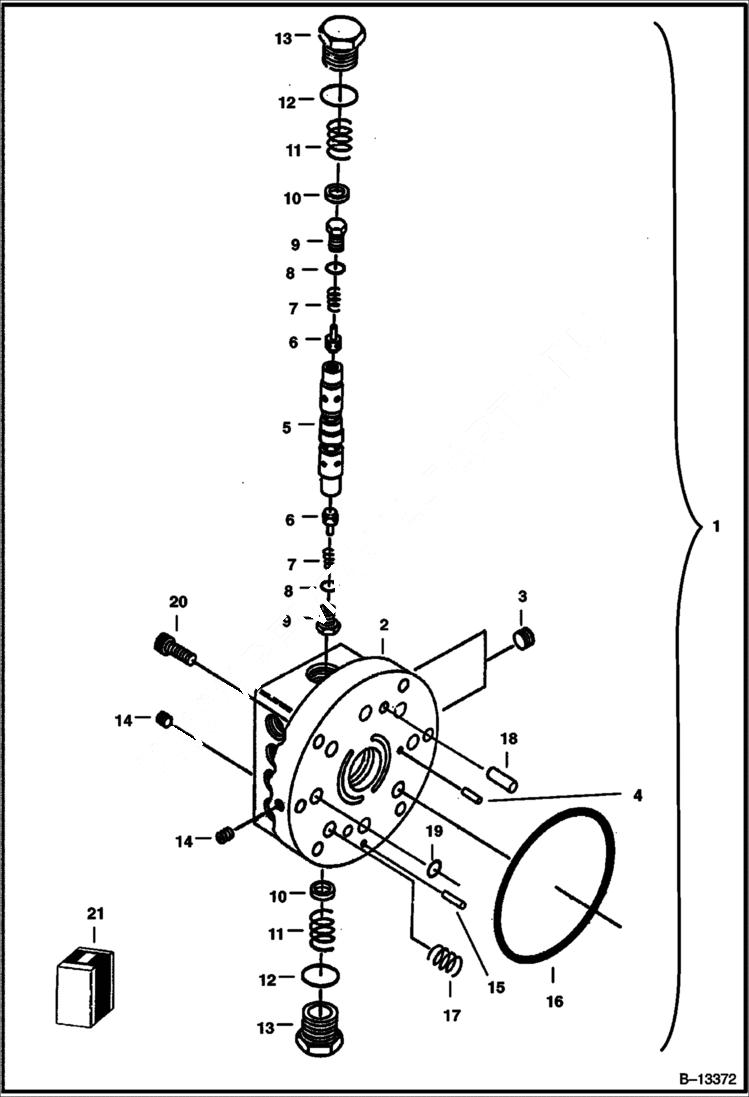

Запчасти Bobcat 225 TRAVEL MOTOR With Brake Nordic Option HYDRAULIC SYSTEM

1

VALVE ASSY NSS - Ref. 2-13

2

BODY NSS

3

PLUG NLA - Was 6653190 - A

4

6653018

PIN

5

6653010

POPPET

6

SPOOL NLA - Was 6653009 - A

7

6653011

SPRING

8

6670234

O-RING Include W/Ref. 21 - Was 6653013 - A

9

6653012

PLUG

10

6653014

SEAT

11

6653015

SPRING

12

6670228

O-RING Include W/Ref. 21 - Was 6653017 - A

13

6653016

CAP

14

PLUG NLA - Was 6658350 - A

15

6653019

PIN

16

6670238

O-RING Include Ref. 21 - Was 6653065 - A

17

6658348

SPRING

18

6658349

PIN

19

6670227

O-RING Include Ref. 21 - Was 6658422 - A

20

6653020

BOLT

21

6670152

SEAL KIT Incl. Ref. 8, 12, 16, 19 & Ref. 3, 26, 31, 45 & 46 on Ill. D2104.

21

6670153

SEAL KIT Does not include Ref. 3 on Ill D2104 - includes Ref. 8, 12, 16, 19 & Ref. 26, 31, 45 & 46 on Ill. D2104
