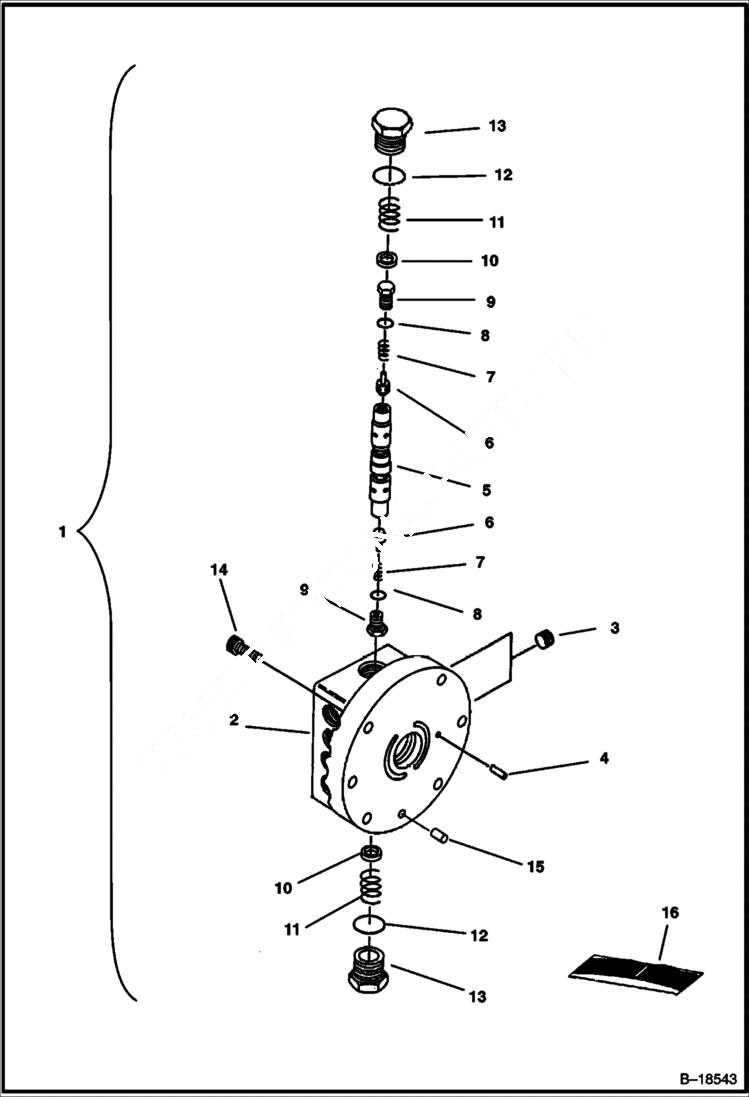

Запчасти Bobcat 225 TRAVEL MOTOR W/O Brake HYDRAULIC SYSTEM

1

VALVE ASSY NSS - Ref. 2-13

2

BODY NSS

3

PLUG NLA - Was 6653190 - A

4

6653018

PIN

5

6653010

POPPET

6

SPOOL NLA - Was 6653009 - A

7

6653011

SPRING

8

6670234

O-RING Was 6653013 - A

9

6653012

PLUG

10

6653014

SEAT

11

6653015

SPRING

12

6670228

O-RING Was 6653017 - A

13

6653016

CAP

14

6653020

BOLT

15

6653019

PIN

16

6670152

SEAL KIT Includes Ref. 8, 12 & Ref. 3, 26, 31 & 45 on Ill. D1974 - Was 6669375

16

6670153

SEAL KIT Does not include Ref. 3 on Ill. D1974 - includes Ref. 8, 12 & Ref. 26, 31 & 45 on Ill. D1974
