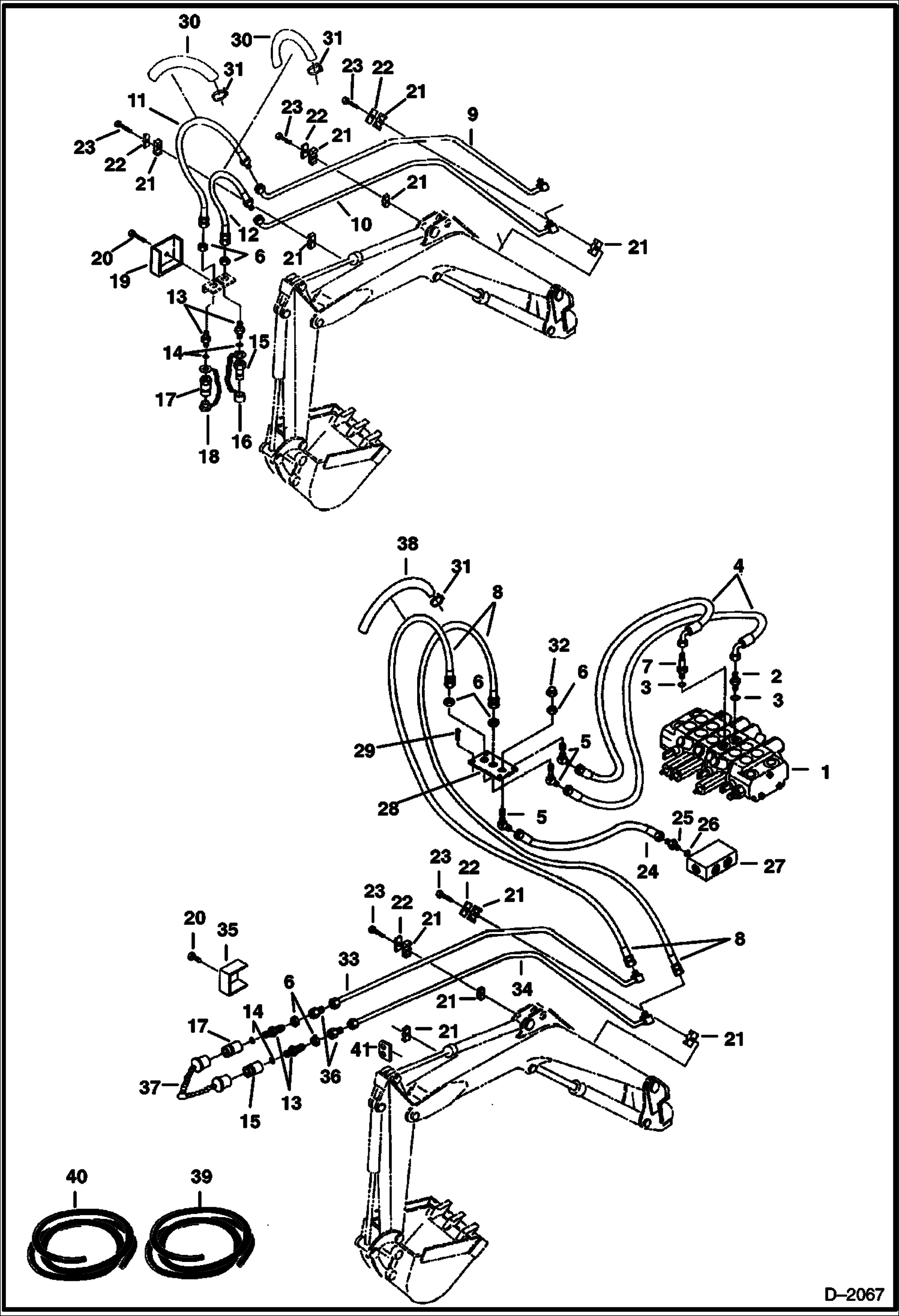

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY Valve to Auxiliary HYDRAULIC SYSTEM

1

6656151

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B18548 - control

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

6537669

HOSE

5

46K7

ELBOW Bulkhead

6

86F7

LOCK NUT

7

16K6

FITTING W/Ref. 3

8

6589720

HOSE W/Hose Cover - Was 6537620 - A

9

6536523

TUBE

10

6536524

TUBE

11

6586897

HOSE Was 6537632 - A

12

6537633

HOSE

13

45K7

CONNECTR Bulkhead

14

79K10

O RING 10

15

6598757

COUPLER, POPPET MALE straight

16

6515168

CAP

17

6598758

COUPLER, POPPET FEMALE straight

18

6515167

PLUG

19

6537497

COVER

20

1CM1020

BOLT

21

6656023

CLAMP

22

6653493

COVER

23

17C532

BOLT 5 Was 1C532 - D

24

6537666

HOSE

25

15K8

FITTING W/Ref. 26

26

79K12

O RING 10

27

6537517

MANIFOLD See Illustration HYDRAULIC CIRCUITRY/ D2075 See Illustration HYDRAULIC CIRCUITRY/ D2151 drain

28

6536522

PLATE

29

1CM1025

BOLT

30

COVER NLA - 31'' long - Order Ref. 40

31

6665221

CABLE TIE Metal - Requires Tool MEL-1427 to install cable tie - Was 6610510 - A

32

36K7

FITTING

33

6586352

TUBE

34

6586353

TUBE

35

6538403

COVER

36

6660224

ADAPTER

37

6513709

CAP PLUG Coupler

38

COVER NLA - 73'' long - Order Ref. 39

39

6652367

HOSE COVER 1.50'' I.D. - Bulk - Sold Per Foot

40

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

41

6589353

PLATE Welded on the Boom
