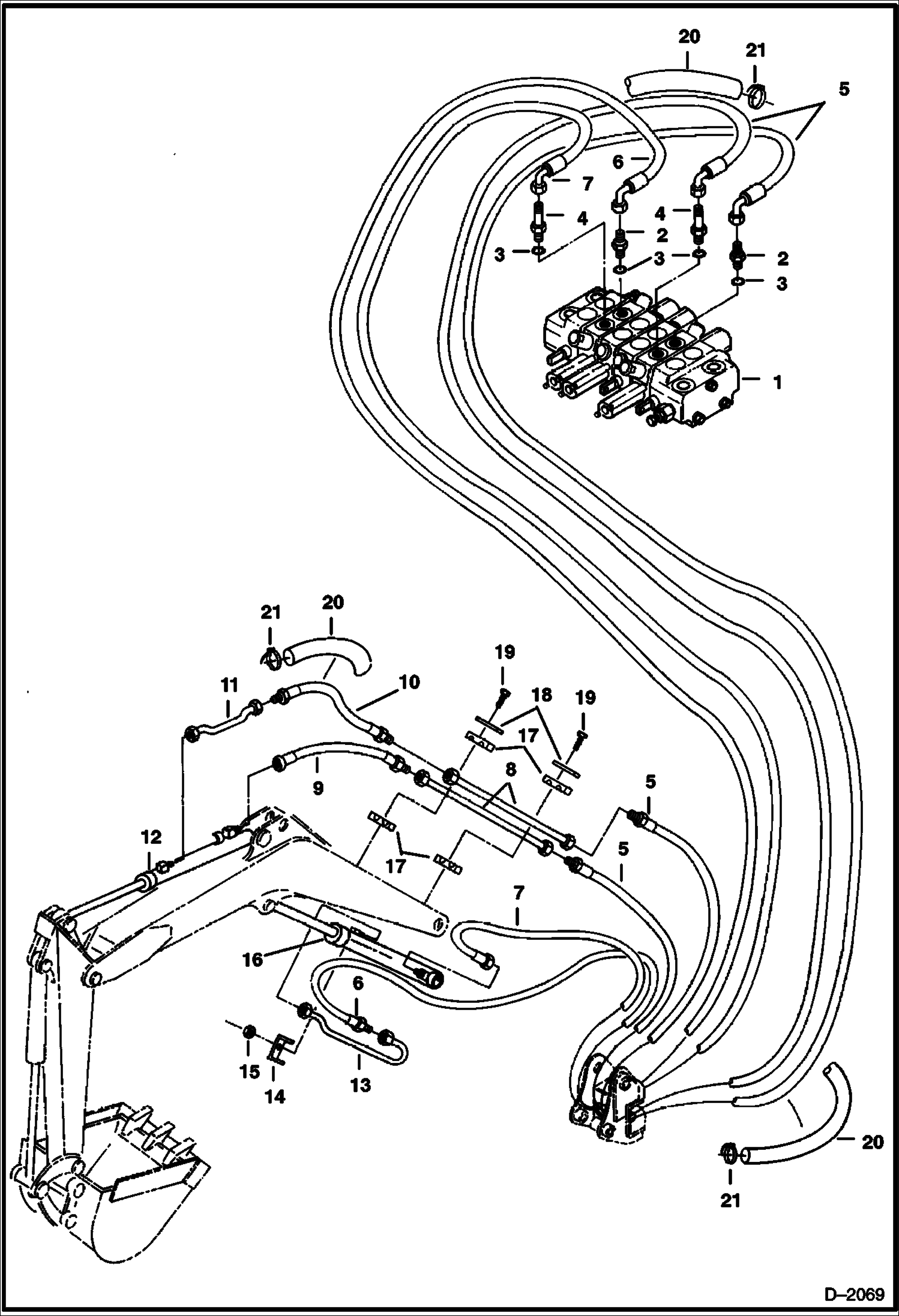

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY Arm & Boom HYDRAULIC SYSTEM

1

6656151

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B18548 - control

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

16K6

FITTING W/Ref. 3

5

6589616

HOSE W/Hose Cover - Was 6537696 - A

6

6589721

HOSE W/Hose Cover - Was 6537697 - A

7

6589722

HOSE W/Hose Cover - Was 6537698 - A

8

6536525

TUBE

9

6589718

HOSE W/Hose Cover - Was 6536753 - A

10

6589719

HOSE W/Hose Cover - Was 6537411 - A

11

6537168

TUBE

12

6586724

CYLINDER See Illustration ARM CYLINDER/ C3216 Arm - Was 6538978 - A

13

6536986

TUBE

14

6562266

CLAMP

15

1DM10

NUT

16

6586726

CYLINDER See Illustration BOOM CYLINDER/ C3213 Boom - Was 6537171 - A

17

6577697

CLAMP Was 6701893 - B

18

6652521

PLATE

19

17C520

BOLT 5 Was 1C000524B - B

20

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

21

6665221

CABLE TIE Metal - Requires Tool MEL-1427 to install cable tie - Was 6610510 - A
