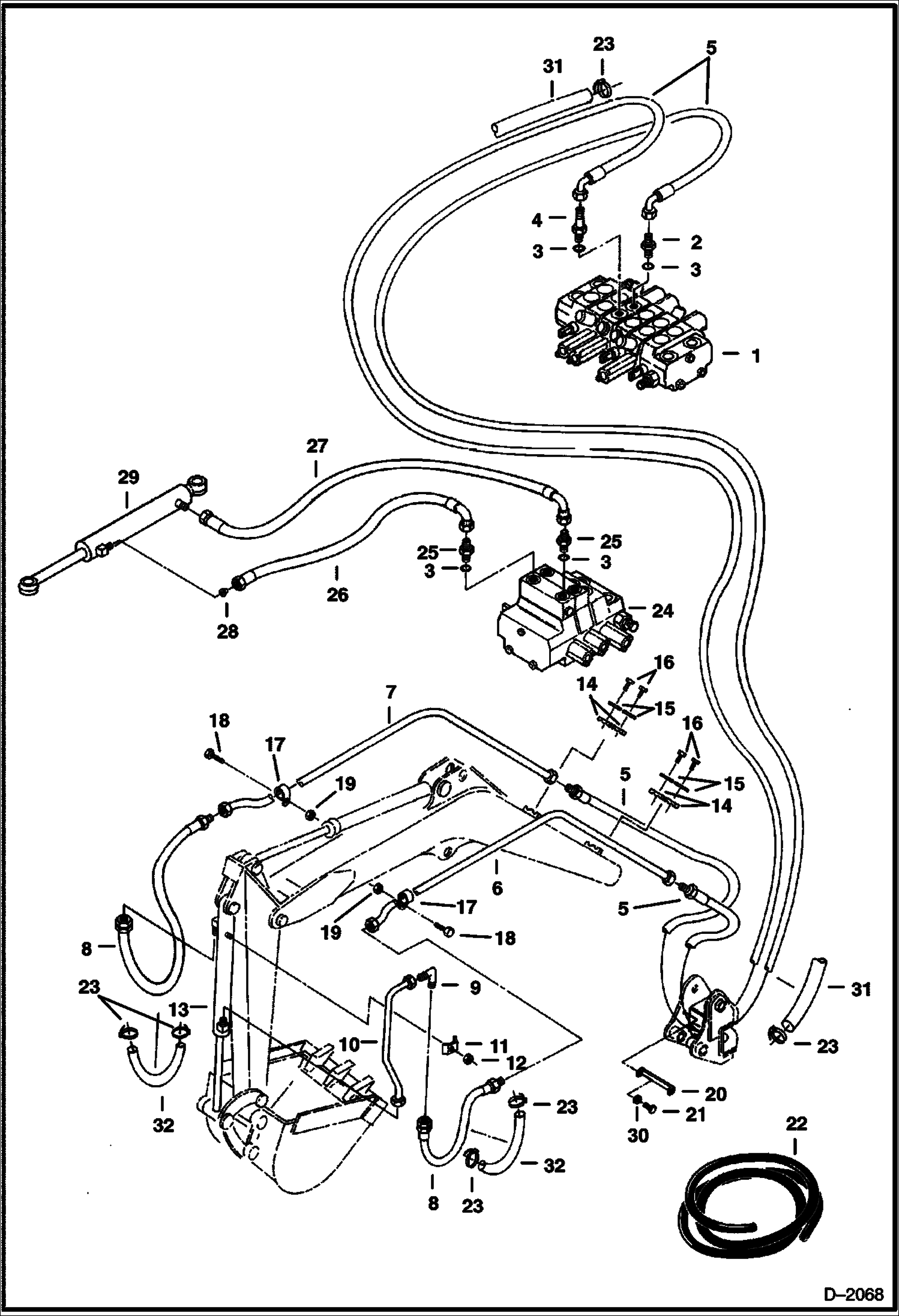

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY Bucket and Boom Swing HYDRAULIC SYSTEM

1

6656151

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B18548 - control

2

15K6

ADAPTER W/Ref. 3

3

79K8

O RING 10

4

16K6

FITTING W/Ref. 3

5

6589616

HOSE W/Hose Cover - Was 6537696 - A

6

6536527

TUBE

7

6536526

TUBE

8

6589717

HOSE W/Hose Cover - Was 6536752 - A

9

77F6

ELBOW

10

6537062

TUBE

11

6562266

CLAMP

12

1DM10

NUT

13

6538977

CYLINDER See Illustration BUCKET CYLINDER/ C3212 bucket - Was 6537230 - A

14

6577697

CLAMP Was 6701893 - B

15

6652521

PLATE

16

17C520

BOLT 5 Was 1C000524B - B

17

30H46

CLIP Was 30H000041B

18

1CM825

BOLT

19

1DM8

NUT

20

6535386

CLAMP

21

1CM1015

BOLT

22

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

23

6665221

CABLE TIE Metal - Requires Tool MEL-1427 to install cable tie - Was 6610510 - B

24

6658411

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 Control - Was 6656150 - A

25

743108

FITTING W/Ref. 3

26

6537629

HOSE

27

6537630

HOSE

28

6593801

ORIFICE

29

6536372

CYLINDER See Illustration SWING CYLINDER/ C3215 boom swing

30

6EM100

WASHER

31

COVER NLA - 117'' (2717mm) long - Order Ref. 22

32

COVER NLA - 28'' (711mm) long - Order Ref. 22
